Description

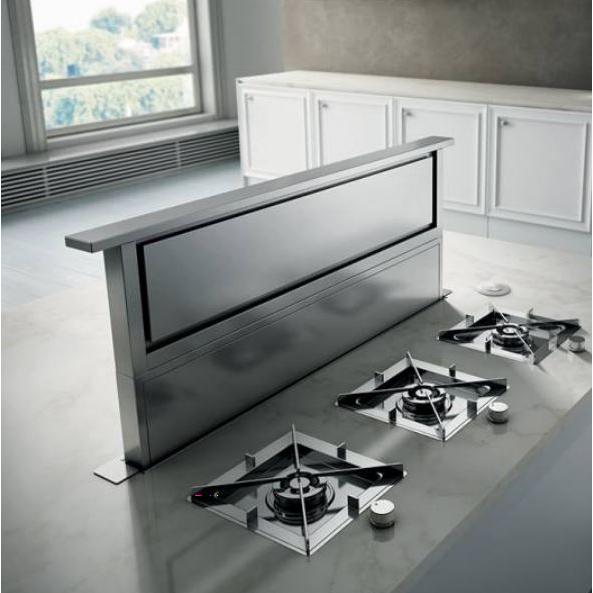

When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica's Rise is the perfect solution. Rise recesses completely out-of-sight into the countertop when not in use. But when it's time to cook, the Rise elevates a full 14" above the countertop at almost twice the height of competitors, for added ventilating efficiency. On top of that, Elica added Perimeter Aspiration Technology, which increases suction 35% and actually draws air from the front burner effectively, to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, which is operated by an electronic rotating control that's flush mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor mounted range.
Features
PERIMETER ASPIRATION
Perimeter Aspiration: First developed by Elica,
this technology literally turned the market 45
degrees and opened the door to hoods that could
be mounted on the wall like picture frames. The
technology draws air through a narrowed channel
around a face plate, which increases suction,
without increasing blower speed or energy consumption.
ELECTRONIC ROTATING DISC CONTROLS.
Electronic rotating disc controls.
ANODIZED ALUMINUM MESH GREASE FILTERS PLUS PERIMETER ASPIRATION PLATE
Anodized aluminum mesh grease filters plus perimeter aspiration plate.
Specifications
General
Series Name
Aria Nuova
Blower Included
Yes
Airflow
600 CFM
Style
Downdraft
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Countertop
Features
Ducting Information
6" Round with Back Draft Damper (side)
Speeds
4
Additional Information
• Electronic Rotating Disc Controls
• 14" Hight Downdraft | Perimeter Aspiration (with Mesh Filter)
• Ducted Installation Only
• 14" Hight Downdraft | Perimeter Aspiration (with Mesh Filter)
• Ducted Installation Only
Electrical Information
Information
• 120V
• 60 Hz
• 3.4 A
• 410 Watt
• 60 Hz
• 3.4 A
• 410 Watt
Certifications and Approvals
Hvi Certified
No
Energy Star Certified
No
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
14 inch(es) / 35.56 cm
Depth
2.5 inch(es) / 6.35 cm
Warranty
Warranty
2 years warranty parts and labor with in-home service
