Description

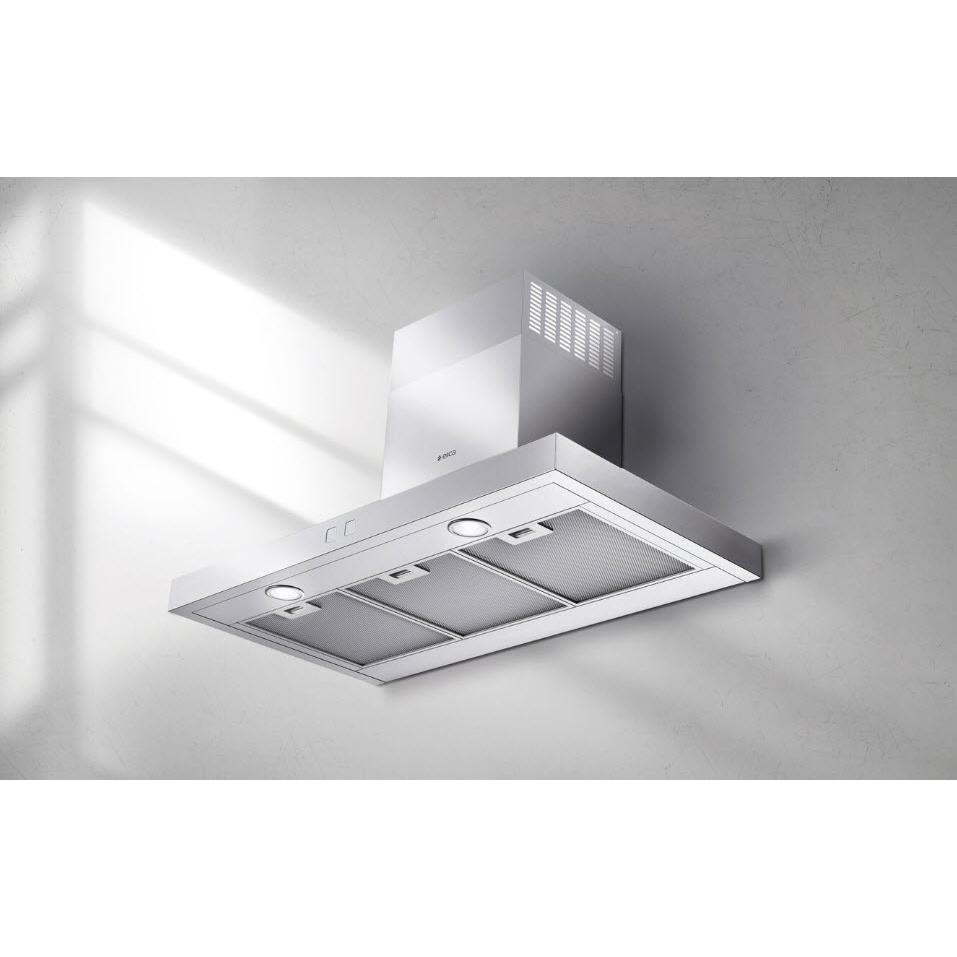

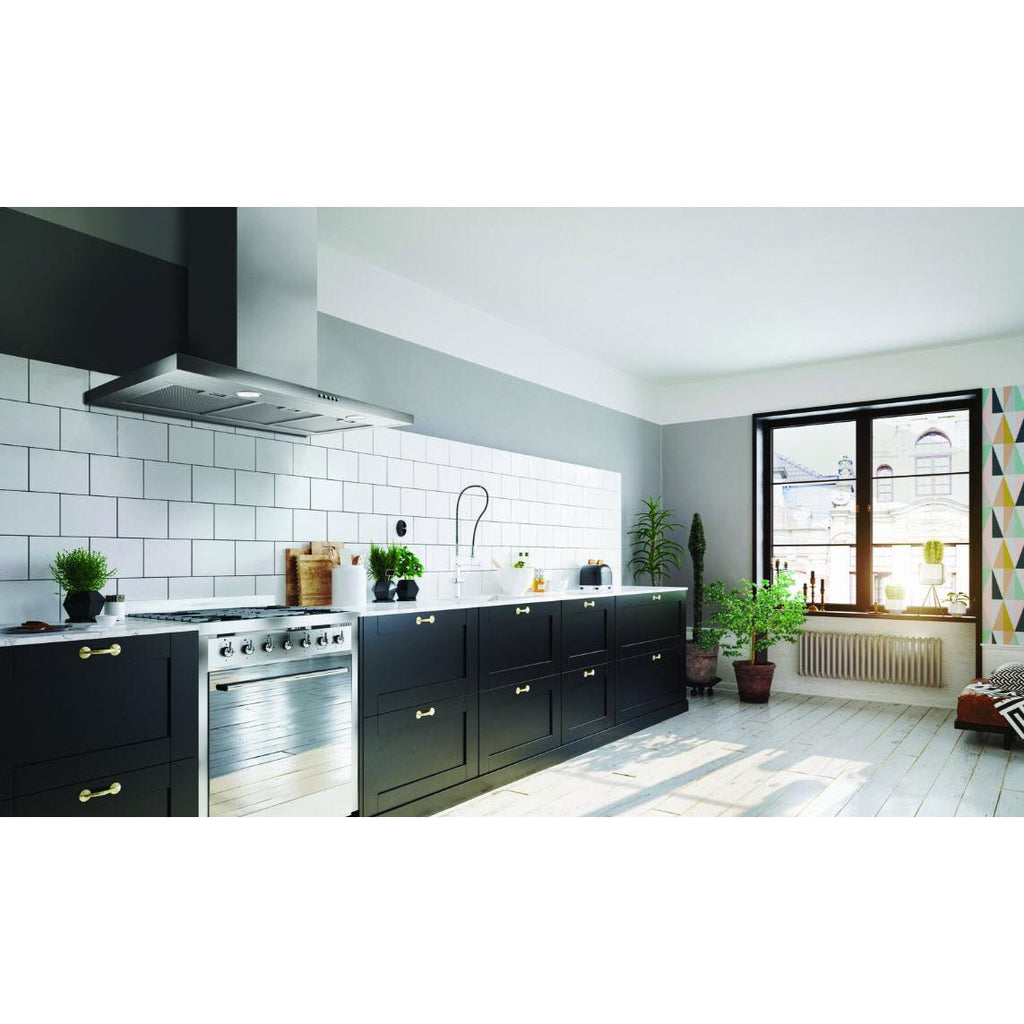

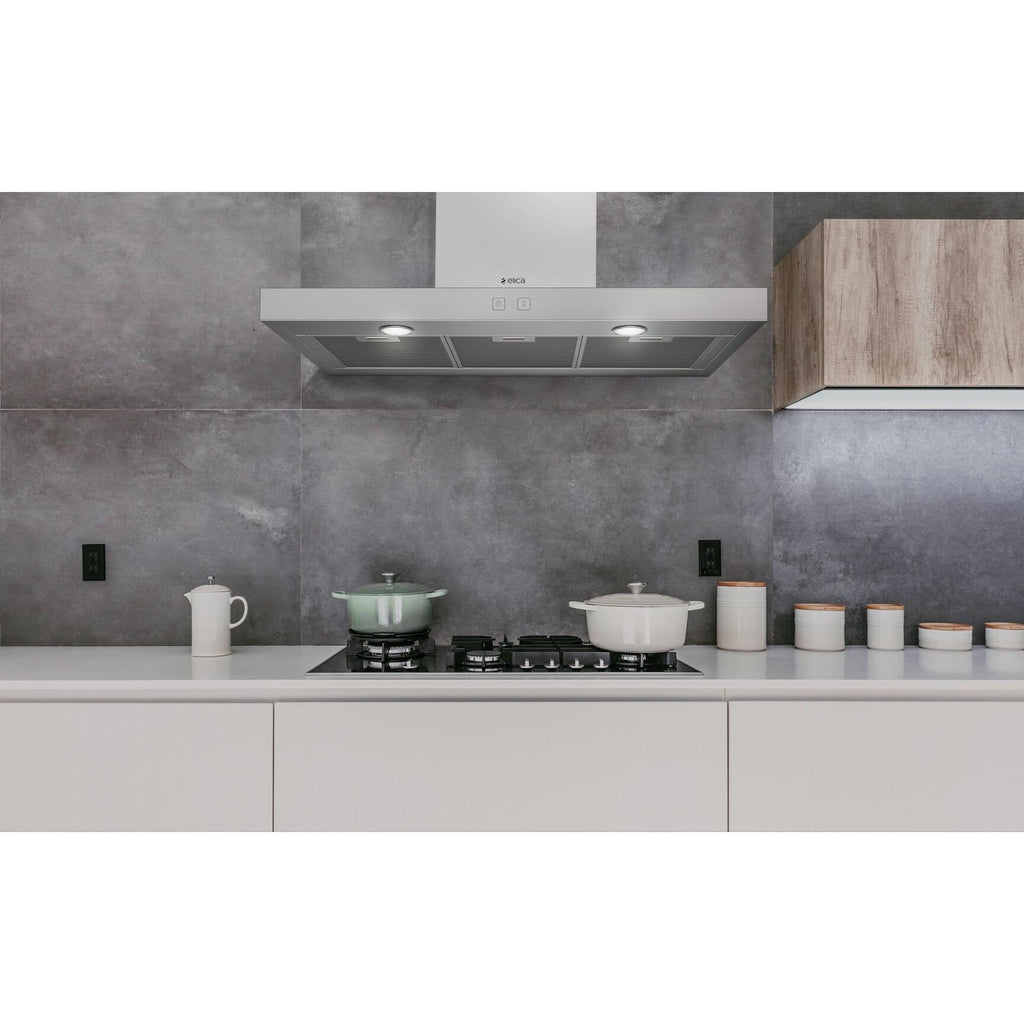

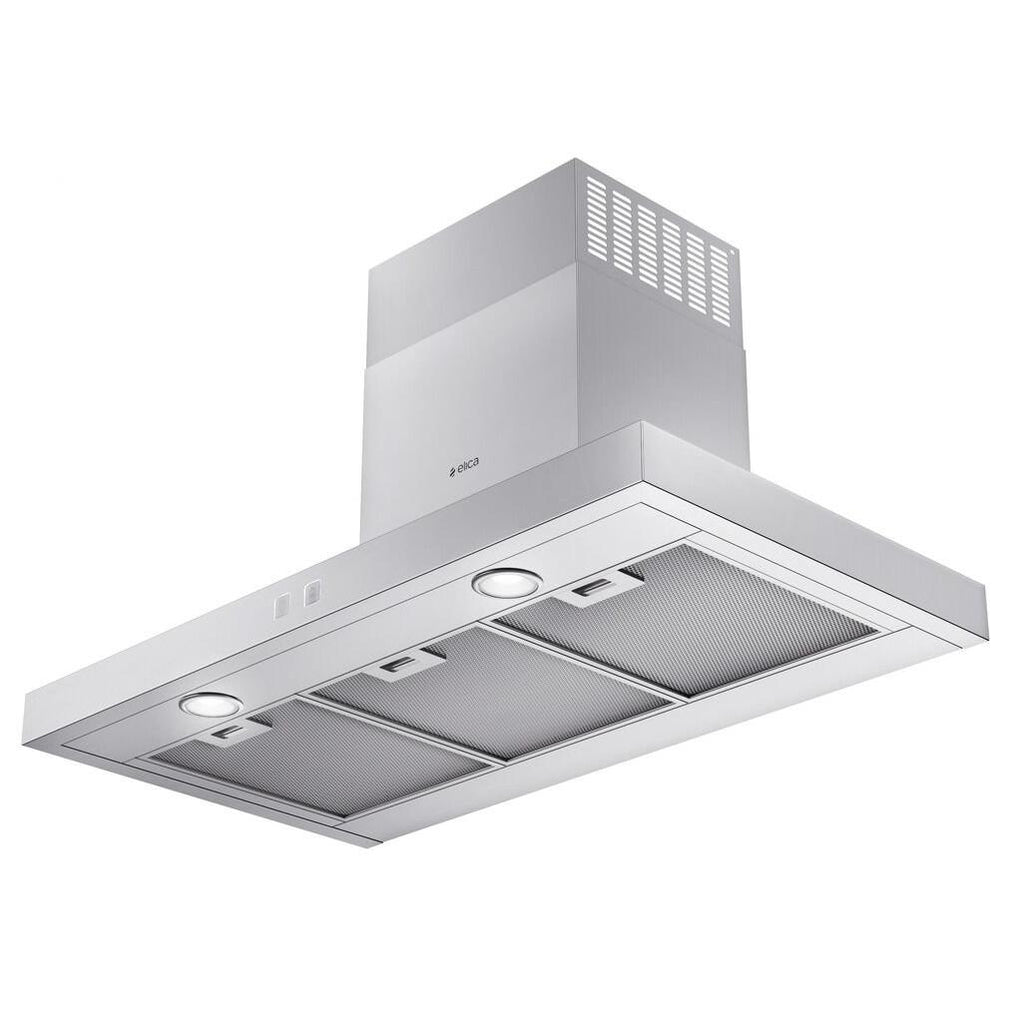

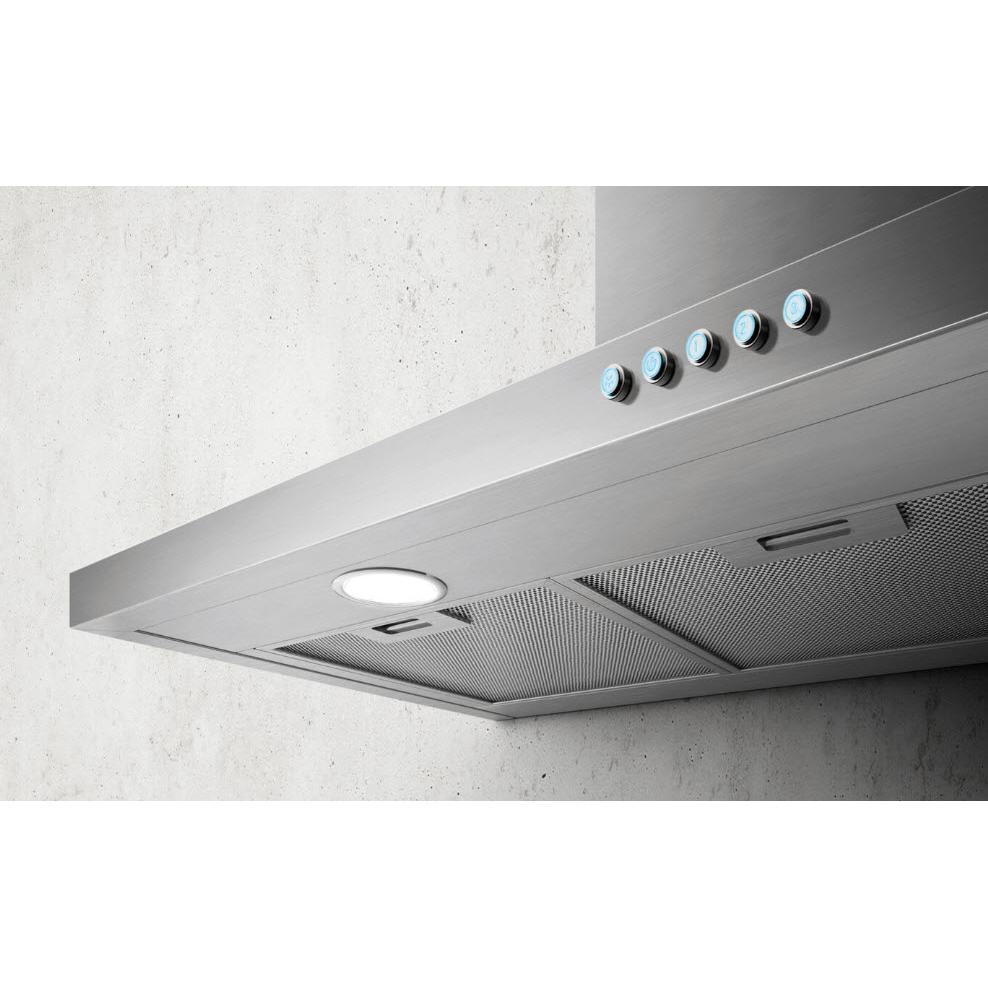

Toblino, with its super sleek hood design that´s only 2” high is the perfect complement for modern kitchen designs that feature futuristic sharp architectural lines.Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue or red that operate the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the kit available as an accessory.
Features
LED LIGHT
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
3X LAYER MESH FILTER
Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
CFM REDUCTION
CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the installer to reduce the maximum blower CFM, to meet local code requirements.
Specifications
General
Series Name
Comfort Series Toblino
Blower Included
Yes
Airflow
400 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
6" Round with Back Draft Damper (top)
Speeds
3 Speeds
Additional Information
• Electronic Touch Controls with Adjustable Color Backlight
• 2 LED, 2.1 W, 3000 K
• Dishwasher-Safe, Anodized Aluminum Mesh Filter
• 2 LED, 2.1 W, 3000 K
• Dishwasher-Safe, Anodized Aluminum Mesh Filter
Electrical Information
Information
120V - 60 Hz, 265 W
Accessories
Optional
• Long Chimney Extension Kit: KIT02785 (Ducted: 12'1" - Recirculating 12' 5")
• Recirculating Kit: KIT0102875 (contains 6" deflector, 3 flat carbon filters and clips)
• Upgrade filter Kit: GF04YB (Contains 1 filter)
• Recirculating Kit: KIT0102875 (contains 6" deflector, 3 flat carbon filters and clips)
• Upgrade filter Kit: GF04YB (Contains 1 filter)
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
20.55 inch(es) / 52.2 cm
Depth
19.68 inch(es) / 50.0 cm
Warranty
Warranty
2 Years Parts and Labor
