Description
THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Sleek, powerful and precise. Induction cooking technology combines the temperature responsiveness of a gas cooktop with the fast performance of an electric cooktop. Also, depending on your needs, induction is inherently more energy-efficient and features faster heat-up times compared to gas or electric cooktops. THOR Kitchen's 30 Inch Built-In Induction Cooktop features four heating elements, nine power levels, touch controls and an independent boost and timer. These induction cooktops are sleek in design and offer quick, precise and even cooking results.
Features
TIH30 - 4 ELEMENTS
The cooktop's total power is 7,200 W with one 11-inch 3,700-Watt, one 9-inch 2,100-Watt, and two 7-inch 1,500-Watt elements to cover your cooking needs
9 POWER LEVELS
So you can simmer a sauce or crank up the heat for a caramelized sear—now that's control.
POWER BOOST
The cooktop elements offer a power boost adjustment so you get to your desired temperature fast.

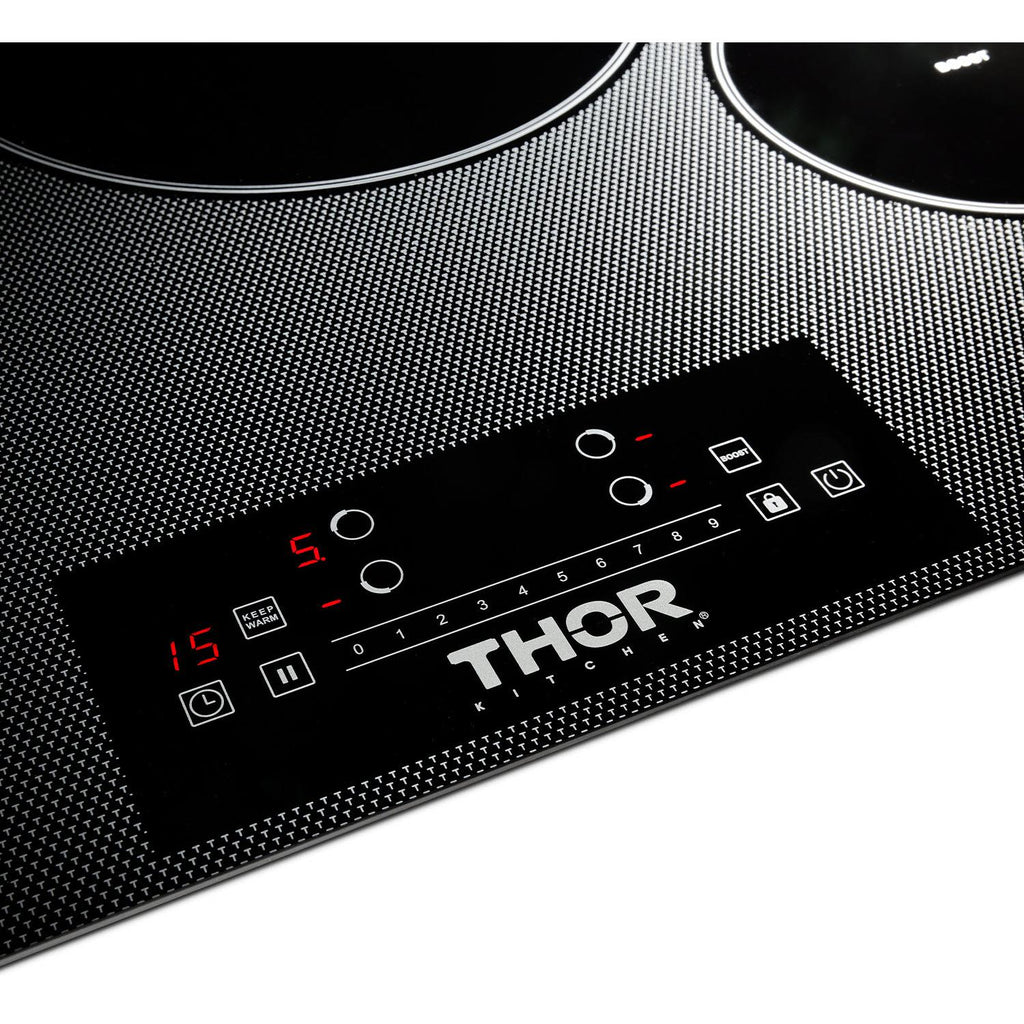

TIH30 - TOUCH CONTROLS
Digital LED displays are touch and slide controlled and easy-to-read for the whole family and spills and grease can easily wipe away.
RESIDUAL HEAT INDICATORS AND LOCK
This cooktop also features a Residual Heat Indicator and Child Lock so that you and your kiddos don't burn your hands.
AUTOMATIC SAFETY SHUT-OFF
The unit will auto turn-off without a cooking pot present after 2-8 hours of nonoperation-safety first. depending on power level. See the graph below for power levels and time.
Specifications
General
Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Left Front zone: 1800 / 2100W
• Right Rear zone: 2300 / 3700W
• Right Front zone: 1200 / 1500W
• Left Rear zone: 1800 / 2100W
• Right Rear zone: 2300 / 3700W
• Right Front zone: 1200 / 1500W
• Left Rear zone: 1800 / 2100W
Burner/Element Size
• Left Front zone: 9"
• Right Rear zone: 11"
• Right Front zone: 7"
• Left Rear zone: 7"
• Right Rear zone: 11"
• Right Front zone: 7"
• Left Rear zone: 7"
Elements
Smoothtop
Features
Technologies
Induction Technology
Control Lock
Yes
Digital Display
Yes
Additional Information
• 99 min timer / Child lock / 4 Booster / Keep Warm / Pause Function
• 9-level power setting
• Individual residual heat indicator
• 2 - 8 hours automatic safety switch off
• Slide touch
• 9-level power setting
• Individual residual heat indicator
• 2 - 8 hours automatic safety switch off
• Slide touch
Electrical Information
Information
• 240V
• 60Hz
• 30 A
• 60Hz
• 30 A
Certifications and Approvals
Information
ETL, RoHS, FCC
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
2.25 inch(es) / 5.72 cm
Depth
21 inch(es) / 53.34 cm
Weight
35.27 lb(s) / 16 kg
Additional Dimensions
Cut out Size (inch) (W*D): 28 3/4" - 9 5/16"
Shipping Dimensions
Width
35.06 inch(es) / 89.05 cm
Height
6.87 inch(es) / 17.46 cm
Depth
27 inch(es) / 68.58 cm
Weight
44.09 lb(s) / 20 kg
Warranty
Warranty
2 Years Parts and Labor
