Description

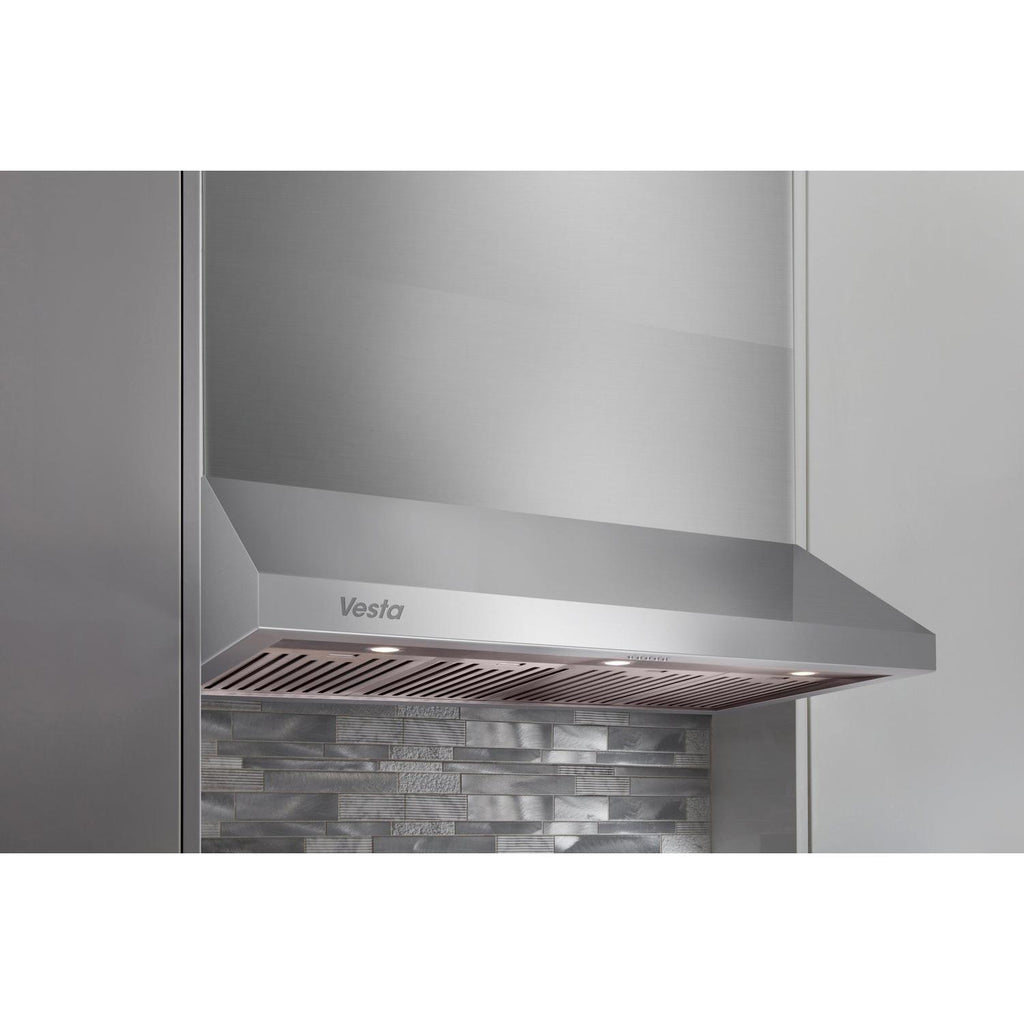

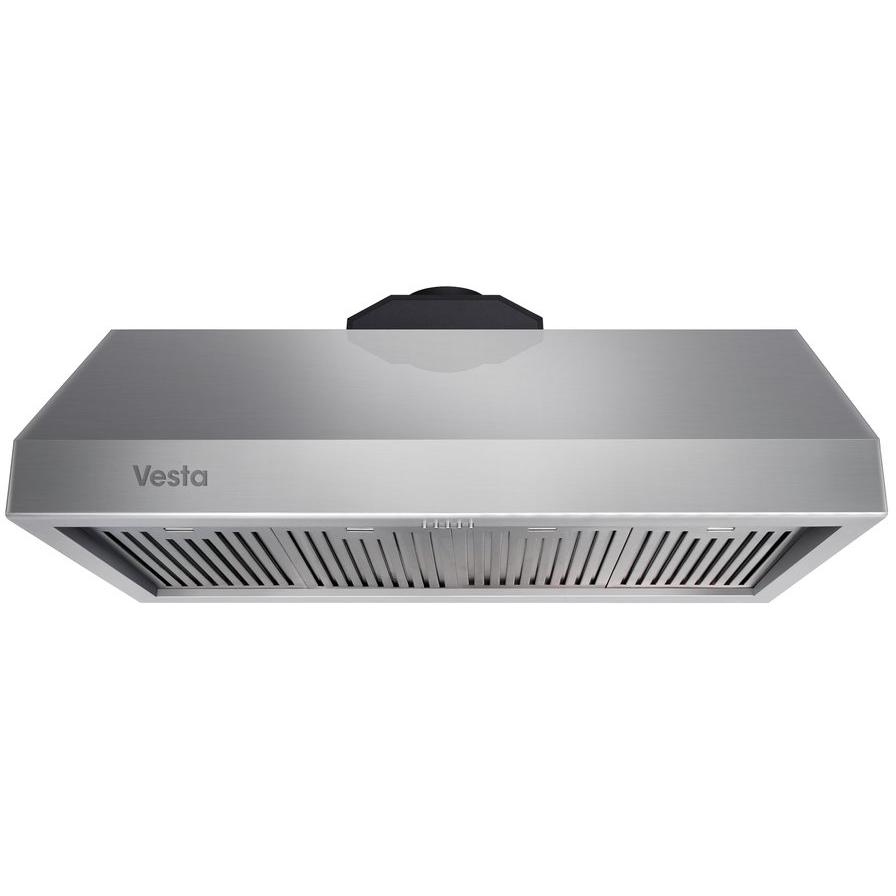

The under cabinet range hood is a durable companion for your kitchen. Featuring an ultra strong motor, touch screen panel, two baffle filters, and 2/3 LED lights, this unit will take your cooking experience to a new level.
Specifications
General
Series Name
Madrid
Blower Included
Yes
Airflow
1000 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Ducting Information
8" Top Round
Speeds
3 levels of speed using the digital button
Additional Information
• This unit exhausts air at a 1000cfm level maxiumn
• You can switch between 4 levels of speed using the touch screen
• The baffle filters are detachable and dishwasher friendly
• The top vent connector is a 8" diameter round shape
• Two of LED lights are energy saving and long lasting
• Seamless stainless steel body are easy to clean with a wet cloth
• Optional stianless steel chimney available.
• Motor Power: 40 Watts
• No. of Motors: 1
• Max Noise Level: 62 dB
• Delayed Shut Off/Oil Tray/Remote Control/Smoke Sensor
• You can switch between 4 levels of speed using the touch screen
• The baffle filters are detachable and dishwasher friendly
• The top vent connector is a 8" diameter round shape
• Two of LED lights are energy saving and long lasting
• Seamless stainless steel body are easy to clean with a wet cloth
• Optional stianless steel chimney available.
• Motor Power: 40 Watts
• No. of Motors: 1
• Max Noise Level: 62 dB
• Delayed Shut Off/Oil Tray/Remote Control/Smoke Sensor
Certifications and Approvals
Information
Certificate: cETL
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
16.5 inch(es) / 41.91 cm
Depth
22 inch(es) / 55.88 cm
Additional Dimensions
• Chimney Dimension (WxDxH): 36": 36"x12"x(23.25"-45.5")
• Product Dimension (WxDxH): 36": 36"x22"x16.5"
• Product Dimension (WxDxH): 36": 36"x22"x16.5"
Warranty
Warranty
1 Year for Parts and Labour and Lifetime for Motors
UPC
UPC#
675487201952
