Description

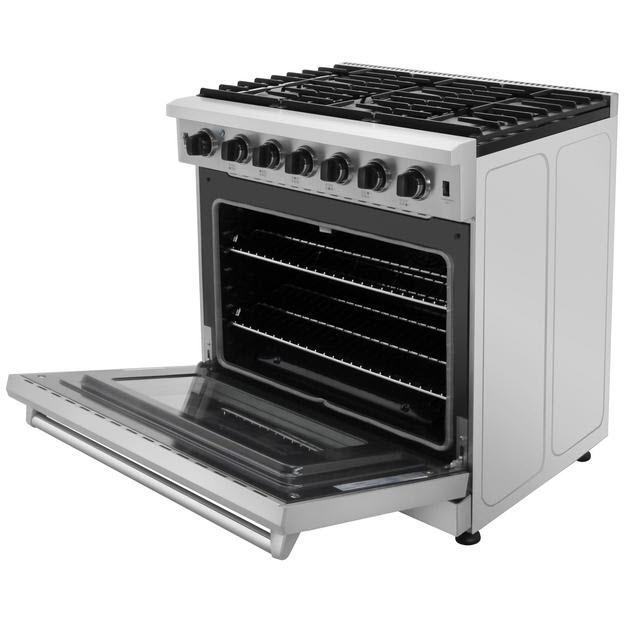

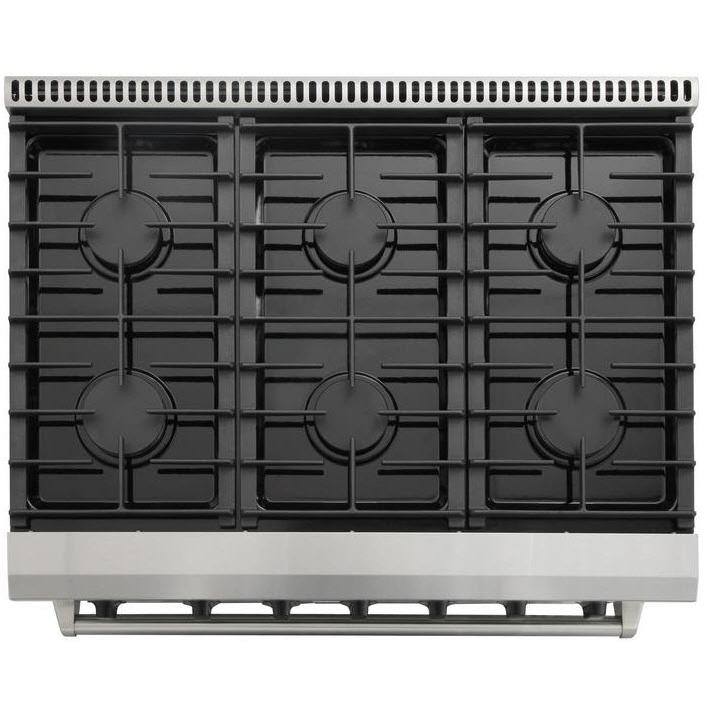

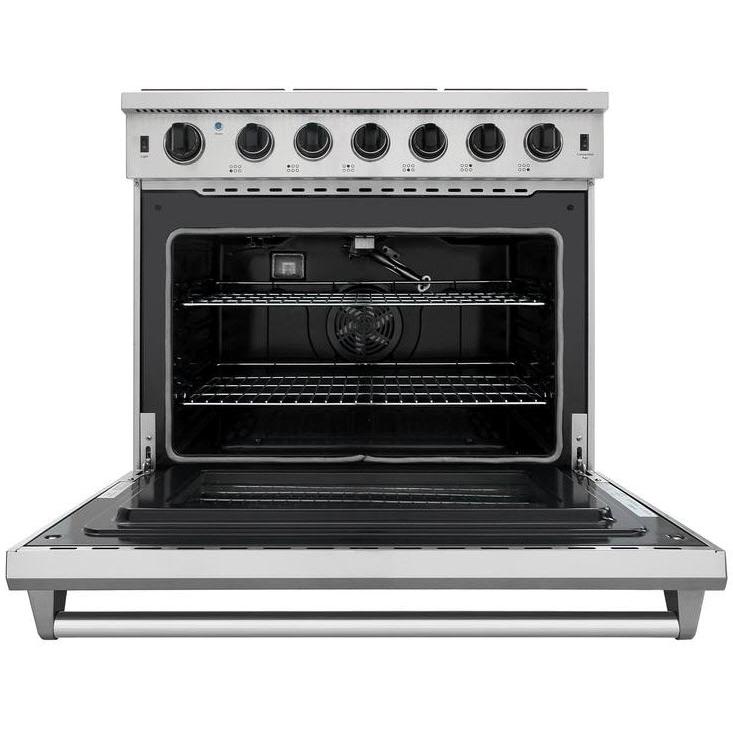

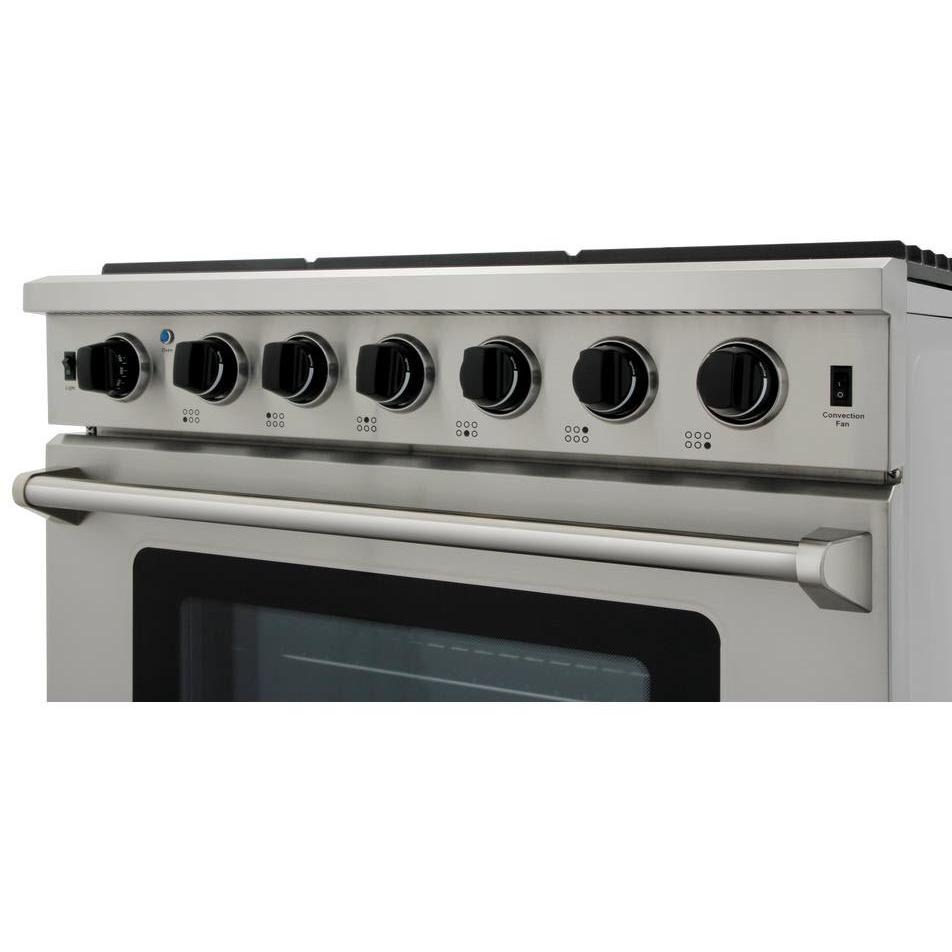

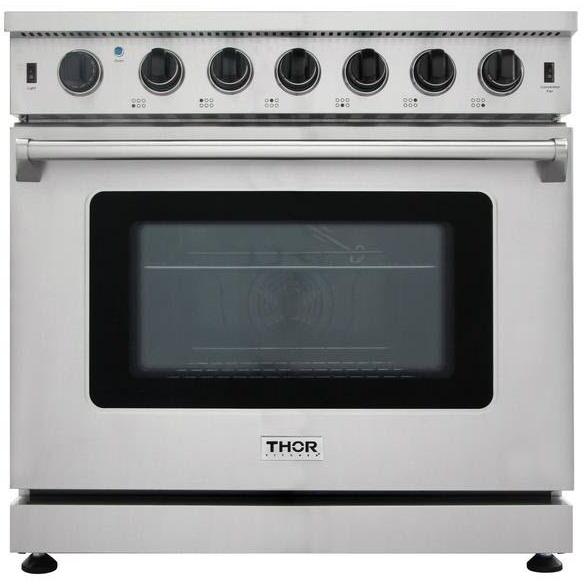

This 36-inch wide Thor gas range features commercial convection fan, halogen lighting, 6 sealed cooktop burners and a 6.0 cu.ft oven capacity.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
6
Burners/Elements Output
• Front Right (Single) Burner: 18,000 BTU
• Front Left (Single) Burner: 18,000 BTU
• Front Middle (Single) Burner: 12,000 BTU
• Rear Right (Single) Burner: 9,000 BTU
• Rear Left (Single) Burner: 9,000 BTU
• Rear Middle (Single) Burner: 12,000 BTU
• Front Left (Single) Burner: 18,000 BTU
• Front Middle (Single) Burner: 12,000 BTU
• Rear Right (Single) Burner: 9,000 BTU
• Rear Left (Single) Burner: 9,000 BTU
• Rear Middle (Single) Burner: 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
6.0 cu.ft.
Number of Ovens
Single
Features
Technologies
Commercial Convection Fan
Convection
Yes
Oven Light
Yes
Additional Information
• One Halogen Lights
• Gray Porcelain Oven Interior with White Flakes
• Heavy-Duty Continuous Cast Iron Cooking Grates
• Black ABS Knobs
• Black Porcelain Drip Pan for Easy Surface Cleaning
• Three Layers Glass Window
• Tube Broil Burner: 10,000 BTU
• U-Shape Burner (30" Oven): 18,500 BTU
• Gray Porcelain Oven Interior with White Flakes
• Heavy-Duty Continuous Cast Iron Cooking Grates
• Black ABS Knobs
• Black Porcelain Drip Pan for Easy Surface Cleaning
• Three Layers Glass Window
• Tube Broil Burner: 10,000 BTU
• U-Shape Burner (30" Oven): 18,500 BTU
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 or 20 A
• 60 Hz
• 15 or 20 A
Accessories
Optional
• LPKLRG3601U Liquid Propane Gas Conversion Kit
• RG1022 Cast Iron Reversible Griddle
• RG1022 Cast Iron Reversible Griddle
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
36.29 inch(es) / 92.18 cm
Depth (Without Handles)
28.31 inch(es) / 71.91 cm
Depth (Including Handles)
30.03 inch(es) / 76.28 cm
Additional Dimensions
• Depth of Control Panel (Minimum): 2.27"
• Depth of Control Panel (Bullnose): 3.54"
• Adjustable Legs Not to Exceed: 1"
• Required Cutout Size (W X D X H): 36 1/8" X 24.77" X 35.6(+1)"
• Depth of Control Panel (Bullnose): 3.54"
• Adjustable Legs Not to Exceed: 1"
• Required Cutout Size (W X D X H): 36 1/8" X 24.77" X 35.6(+1)"
Warranty
Warranty
2 Years Parts and Labor
