Specifications
General
Series Name
Professional
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop

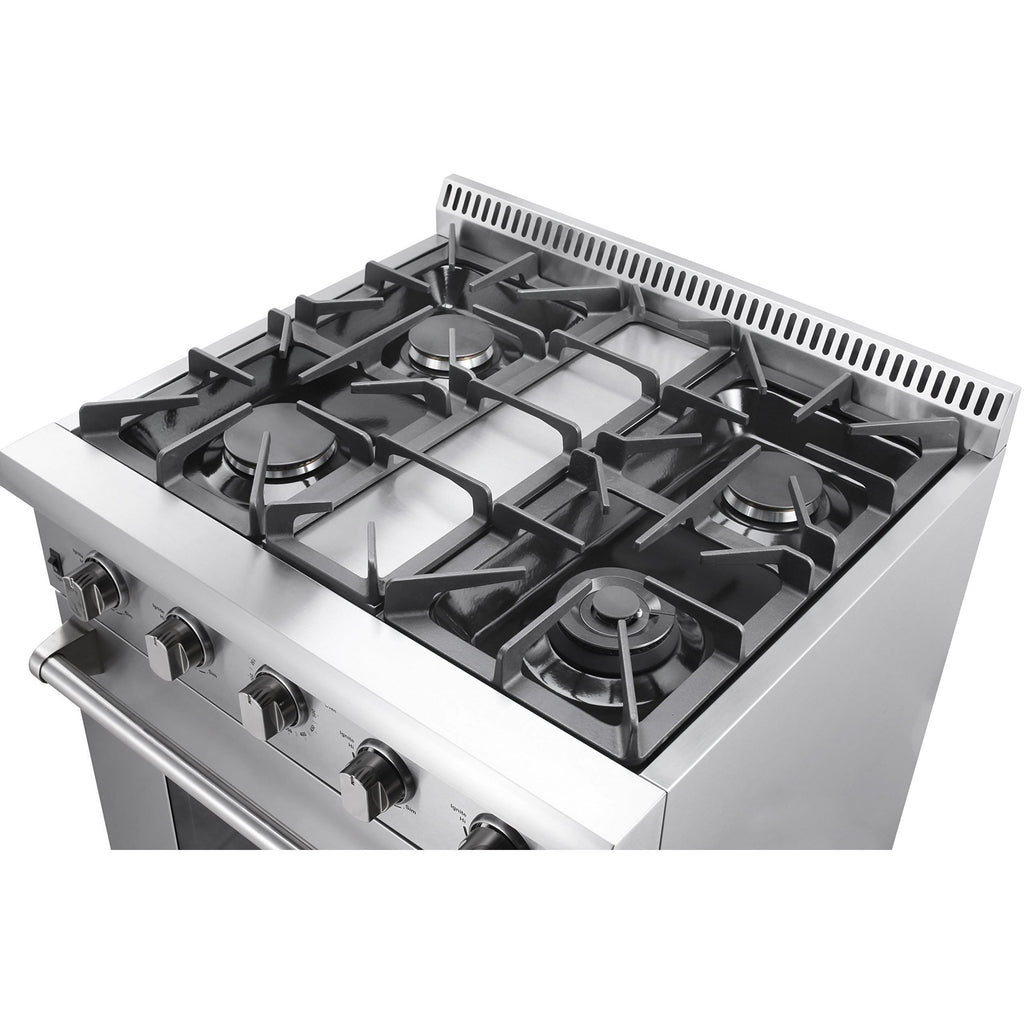

Burners/Elements
4
Burners/Elements Output
β’ Front Right (Dual Burner with simmer function): 15,000 BTU (650 BTU for Simmer)
β’ Front Left (Single): 18,000 BTU
β’ Rear Right (Single): 12,000 BTU
β’ Rear Left (Single): 12,000 BTU
β’ Front Left (Single): 18,000 BTU
β’ Rear Right (Single): 12,000 BTU
β’ Rear Left (Single): 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.2 cu.ft.
Number of Ovens
Single
Features
Technologies
Commercial Convection Fan
Convection
Yes
Oven Light
Yes
Additional Information
β’ Tube Broil Burner: 13,000 BTU
β’ U-shape Bake Burner:22,000 BTU
β’ Black Porcelain Drip Pan On Cook Top
β’ Heavy-Duty Continuous Cast Iron Cooking Grates
β’ Automatic Re-Ignition Safety Feature

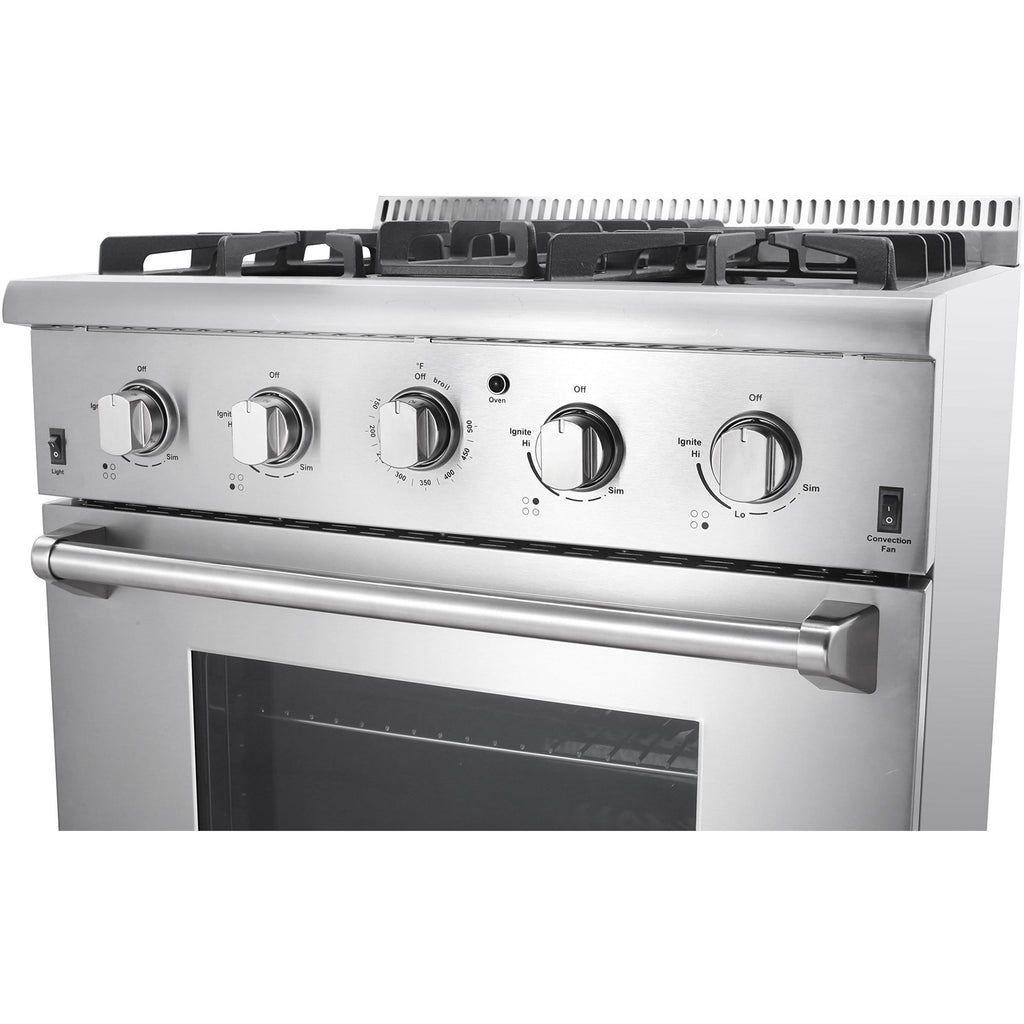

β’ Blue LED Illuminated Knobs
β’ Stainless-Steel Professional Style

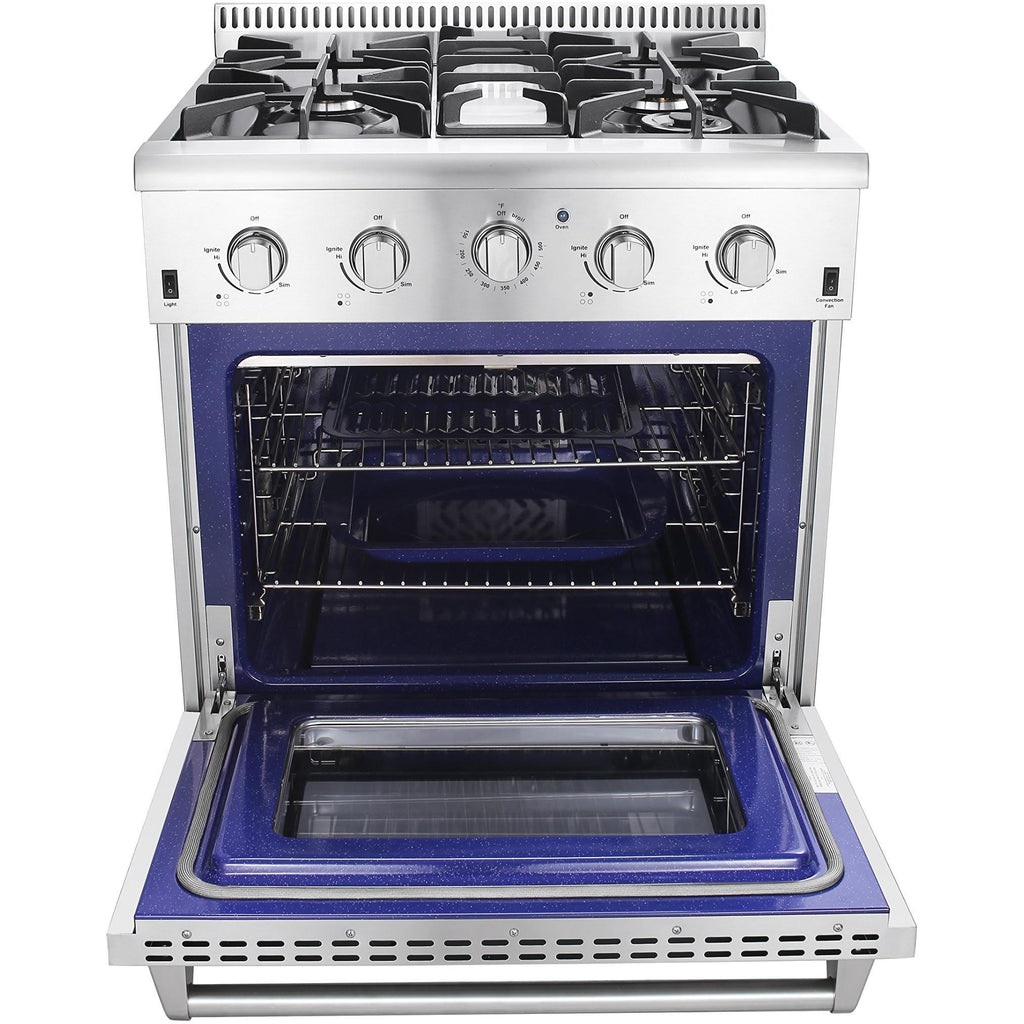

β’ Blue Porcelain Oven Interior
β’ 2 x Halogen Lights
β’ U-shape Bake Burner:22,000 BTU
β’ Black Porcelain Drip Pan On Cook Top
β’ Heavy-Duty Continuous Cast Iron Cooking Grates
β’ Automatic Re-Ignition Safety Feature
β’ Blue LED Illuminated Knobs
β’ Stainless-Steel Professional Style
β’ Blue Porcelain Oven Interior
β’ 2 x Halogen Lights
Electrical Information
Information
β’ 120 V
β’ 15 or 20 A
β’ 60 Hz
β’ 15 or 20 A
β’ 60 Hz
Accessories
Optional
β’ Liquid Propane Gas Conversion Kit LPKHRG3080U
β’ 30-inch Telescopic Rack TR30SS
β’ 30-inch Island Trim ITHRG3080U
β’ Cast Iron Reversible Griddle RG1022
β’ Cast Iron Range Griddle RG1032
β’ 30-inch Telescopic Rack TR30SS
β’ 30-inch Island Trim ITHRG3080U
β’ Cast Iron Reversible Griddle RG1022
β’ Cast Iron Range Griddle RG1032
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
38.39 inch(es) / 97.51 cm
Depth (Without Handles)
27.94 inch(es) / 70.97 cm
Depth (Including Handles)
29.54 inch(es) / 75.03 cm
Weight
172 lb(s) / 78.02 kg
Shipping Dimensions
Width
32.9 inch(es) / 83.57 cm
Height
40.25 inch(es) / 102.24 cm
Depth
35.5 inch(es) / 90.17 cm
Weight
236 lb(s) / 107.05 kg
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
6926697000007
