Description

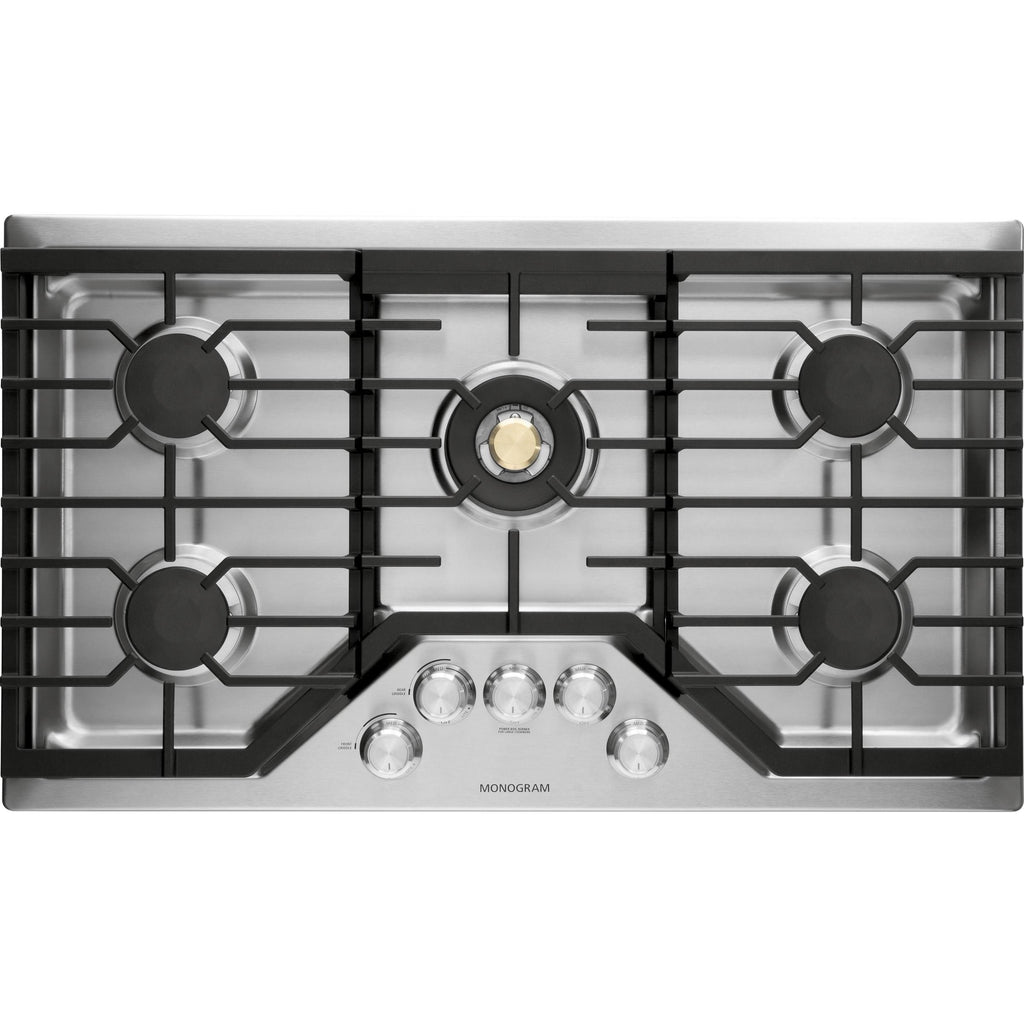

Monogram 36" deep-recessed gas cooktop with dual-flame stacked burners that provide complete 140F simmer-to-rapid-boil flexibility on all burners. The embedded sapphire glass illuminate each knob, making it easy to view and select heat settings. The continuous grates are designed for even cooking and simple movement of cookware across the surface.
Applicable Rebate
Features

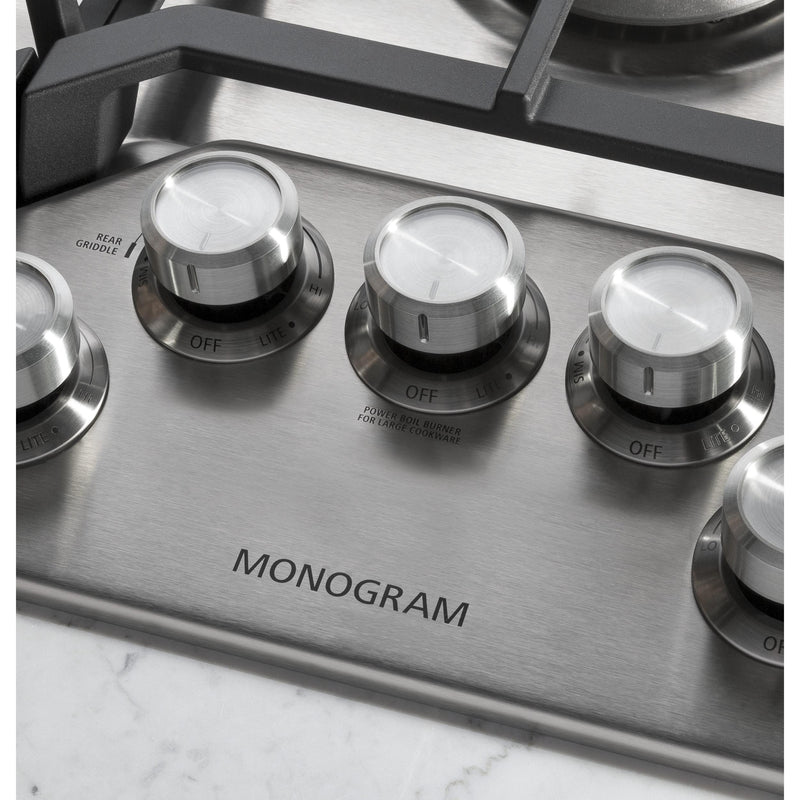

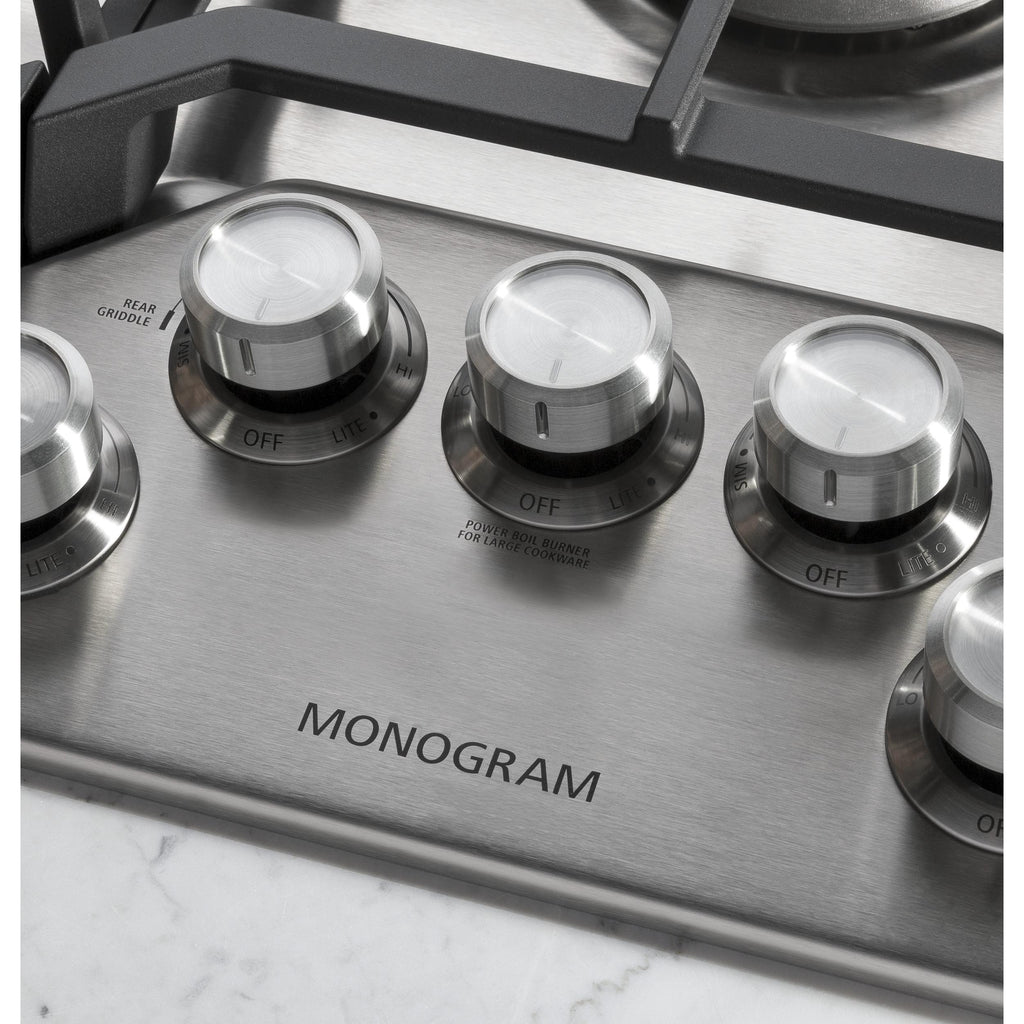

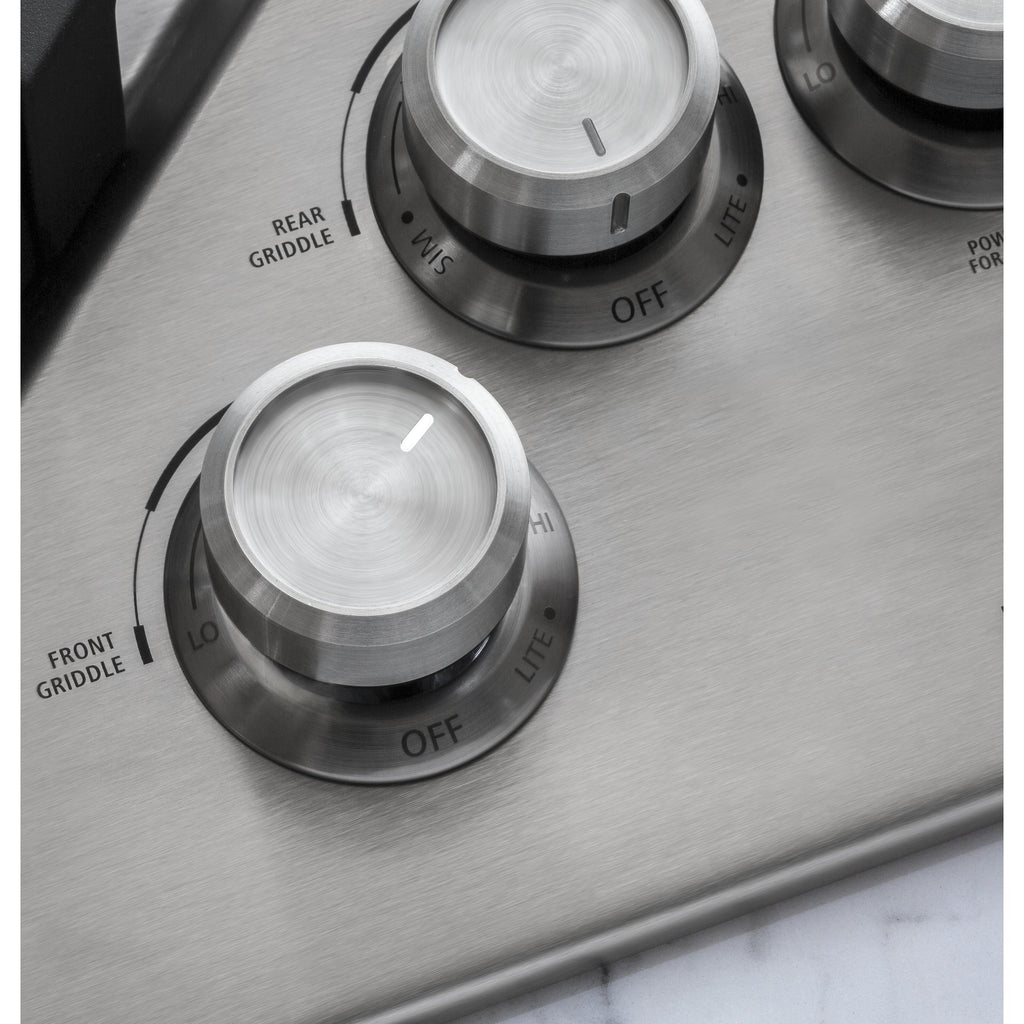

PRECISION KNOBS
With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
DUAL-FLAME STACKED BURNERS
Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

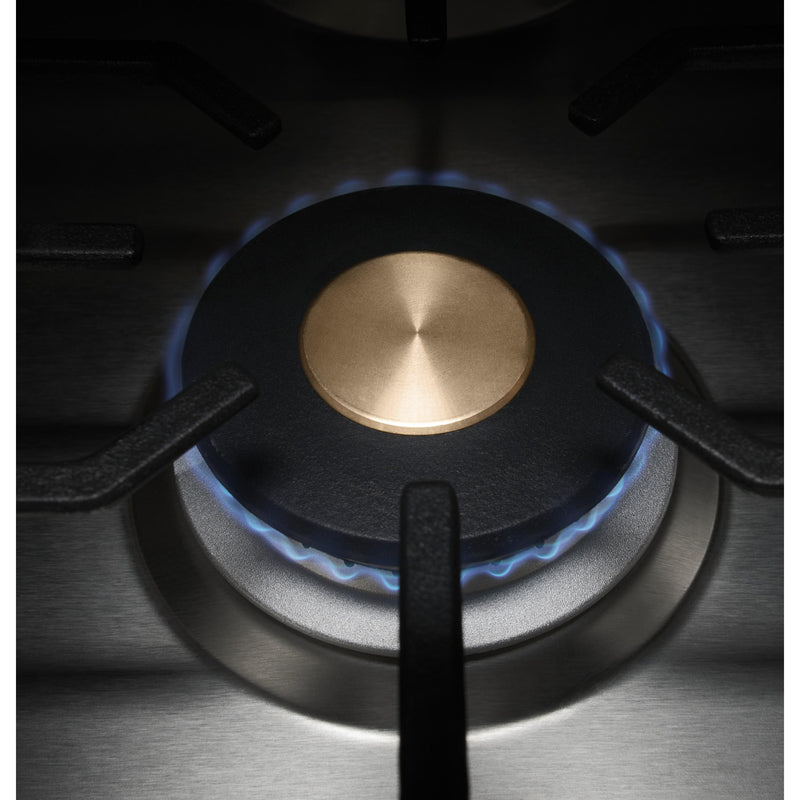

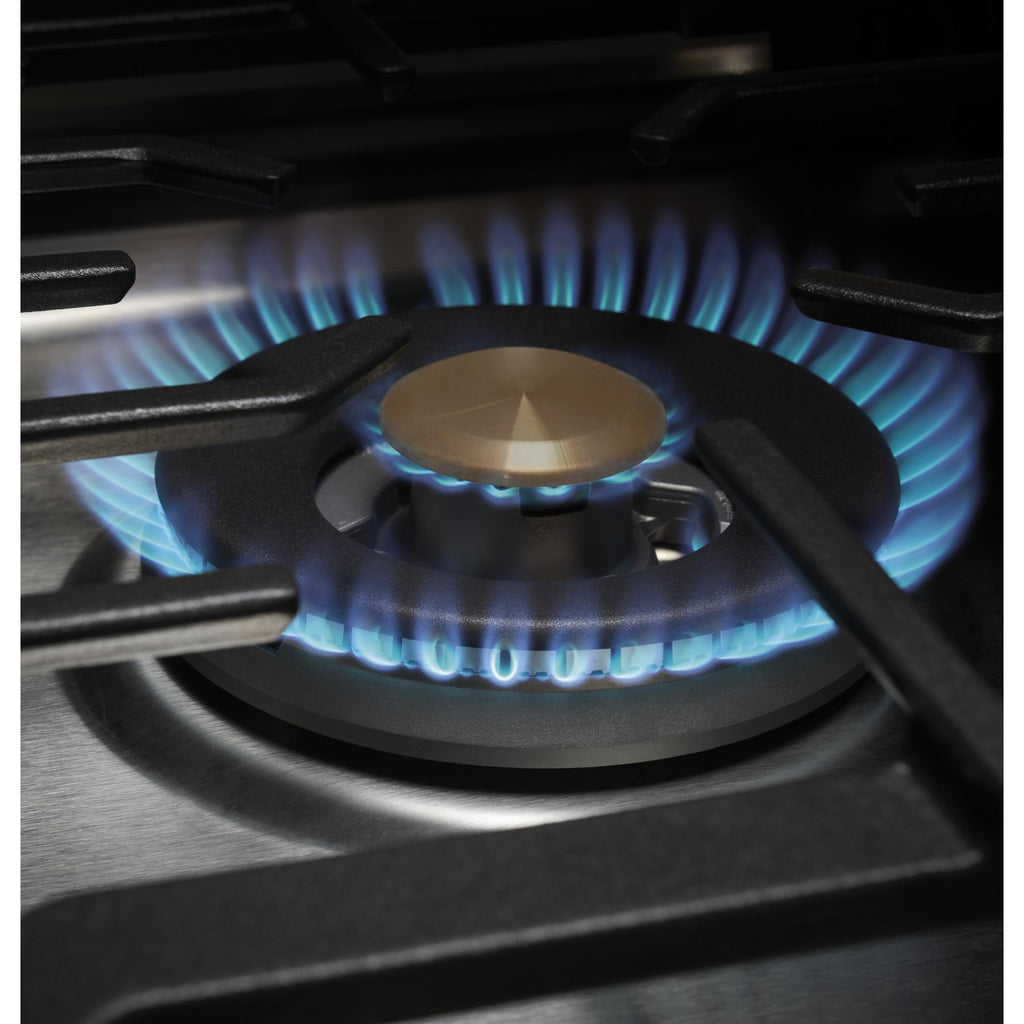

TRI-RING BURNER
Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
HIGH-OUTPUT COOKING
Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
Additional Features
CONTINUOUS GRATES
Designed for even cooking and simple movement of cookware across the surface
ELECTRONIC IGNITION
Ensures a continuous flame and reignites automatically if accidentally extinguished
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left front: 10,000 BTU Dual
• Left rear: 10,000 BTU Dual
• Right front: 12,000 BTU Dual
• Right rear: 10,000 BTU Dual
• Center: 20,000 BTU Tri-ring Brass Cap
• Left rear: 10,000 BTU Dual
• Right front: 12,000 BTU Dual
• Right rear: 10,000 BTU Dual
• Center: 20,000 BTU Tri-ring Brass Cap
Burners
Sealed
Surface Features
Cast-iron, porcelainized continuous grates
Features
Wi-Fi
No
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• Direct electronic ignition system
• Automatic re-ignition
• Dual flame stacked burners
• Burner indicator light
• Valves (Degree of turn): 270
• White LED backlit knobs
• Automatic re-ignition
• Dual flame stacked burners
• Burner indicator light
• Valves (Degree of turn): 270
• White LED backlit knobs
Electrical Information
Information
• 120V
• 60Hz
• 5.0A
• 60Hz
• 5.0A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• Griddle: JXGRIDL236
• Nat. Gas to LP conversion kit
• Nat. Gas to LP conversion kit
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
7.87 inch(es) / 20.00 cm
Depth
21 inch(es) / 53.34 cm
Weight
59 lb(s) / 26.76 kg
Additional Dimensions
Cutout dimensions (WxD): 33-7/8" x 19-1/8"
Shipping Dimensions
Width
27.3 inch(es) / 69.34 cm
Height
12.3 inch(es) / 31.24 cm
Depth
39 inch(es) / 99.06 cm
Weight
64.99 lb(s) / 29.48 kg
Warranty
Warranty
Limited 2-year warranty on parts and labor for entire appliance
UPC
UPC#
084691822516
