Description

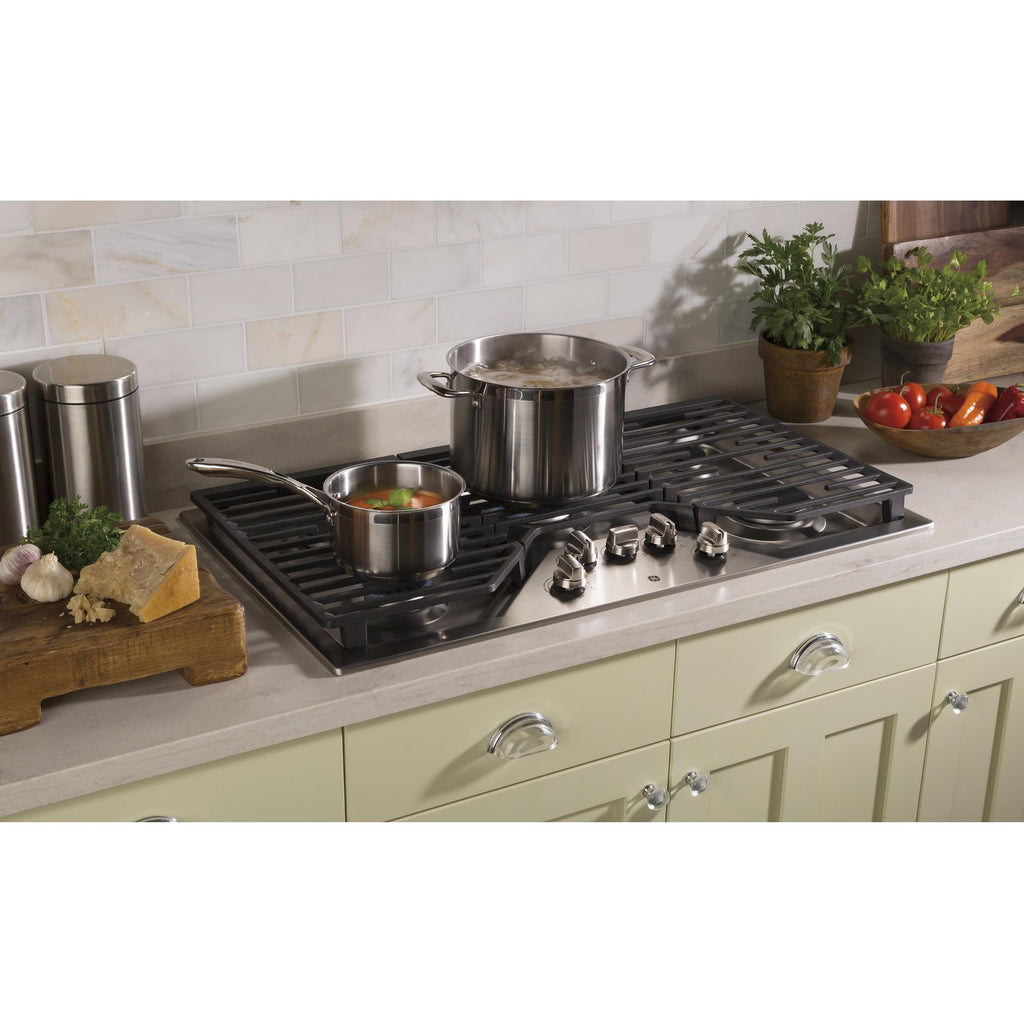

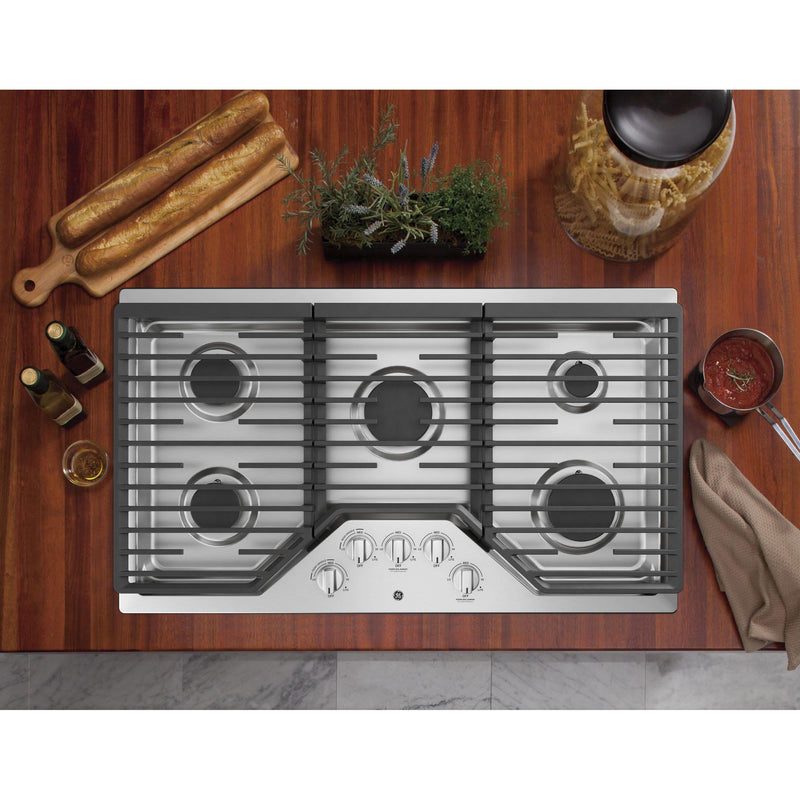

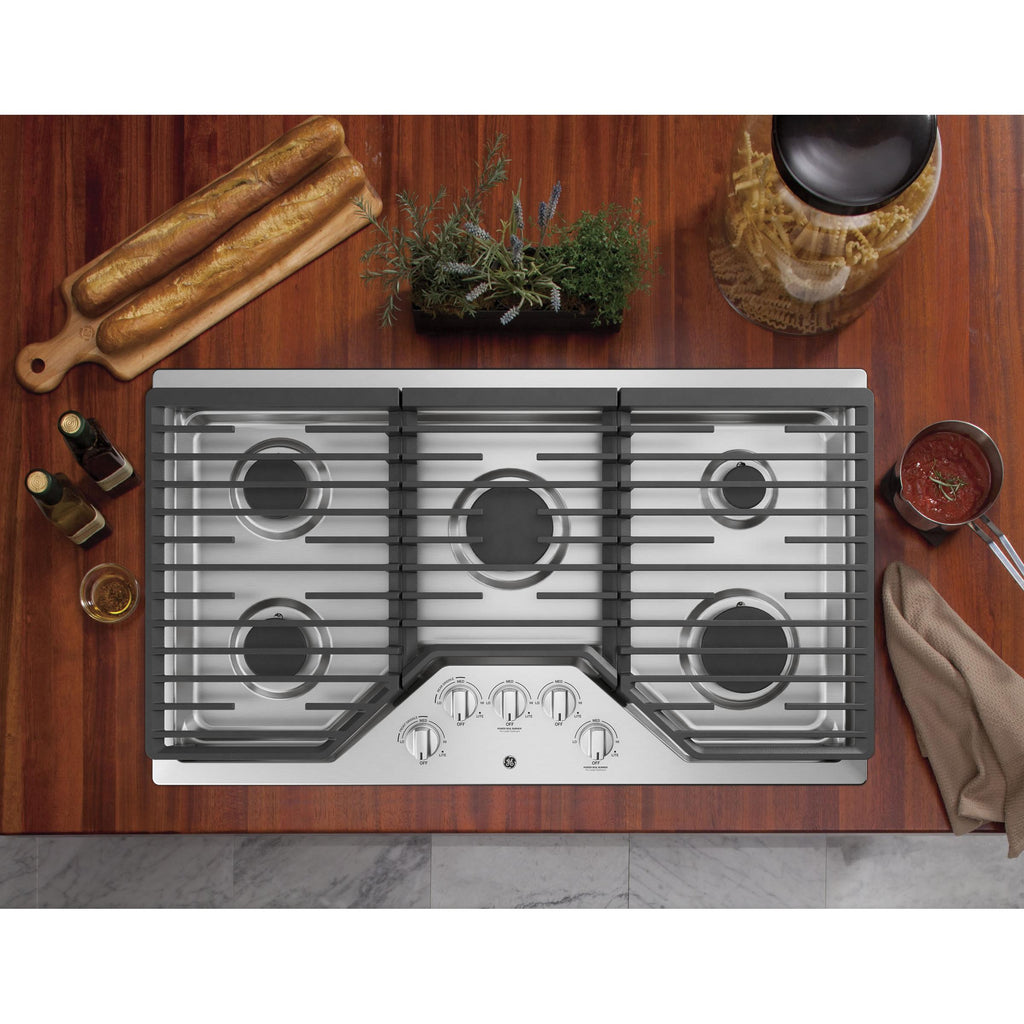

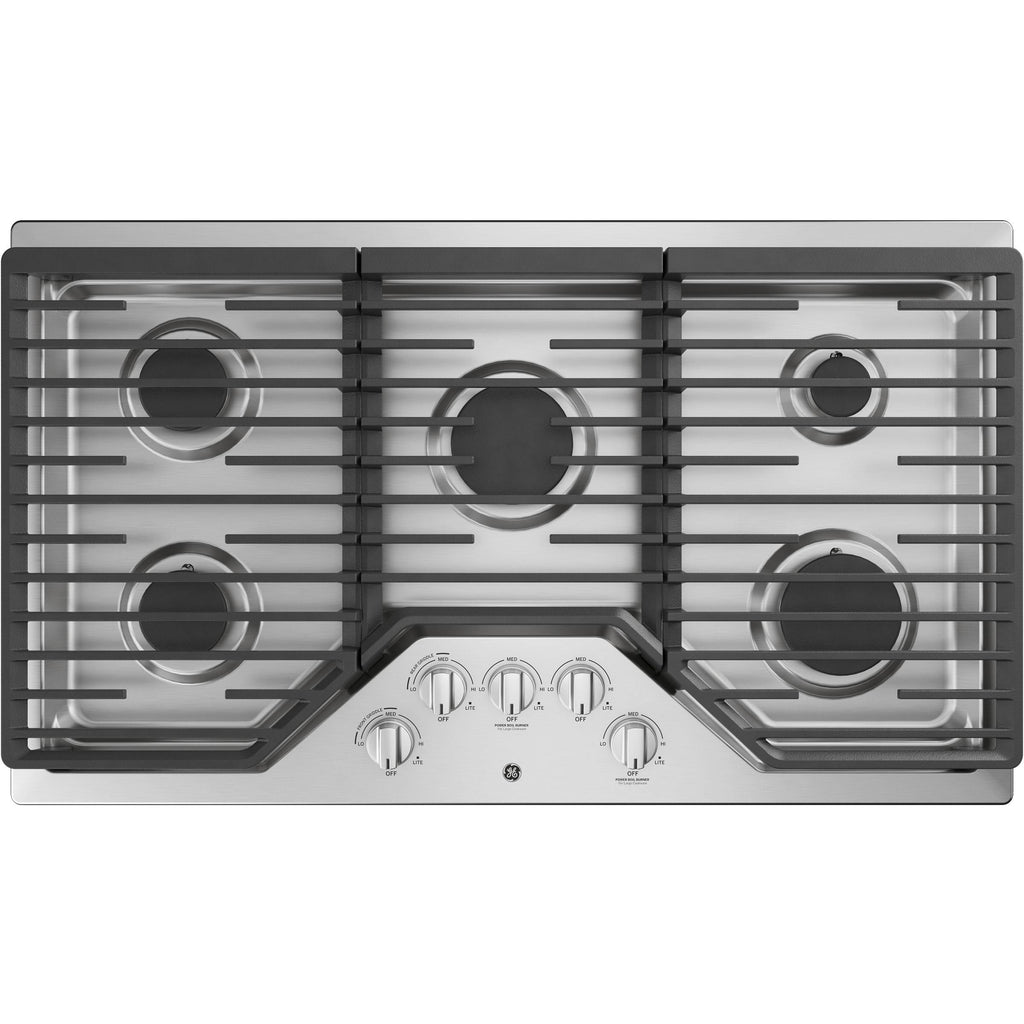

GE® 36" built-in gas cooktop featuring an 18,000 BTU Power Boil burner, a Precise Simmer burner and heavy-duty, dishwasher safe grates.
Features
HEAVY-CAST, EDGE-TO-EDGE GRATES
Allow for easy movement of pans between burners
PRECISE SIMMER BURNER
Delicate foods don’t burn with low, even heat

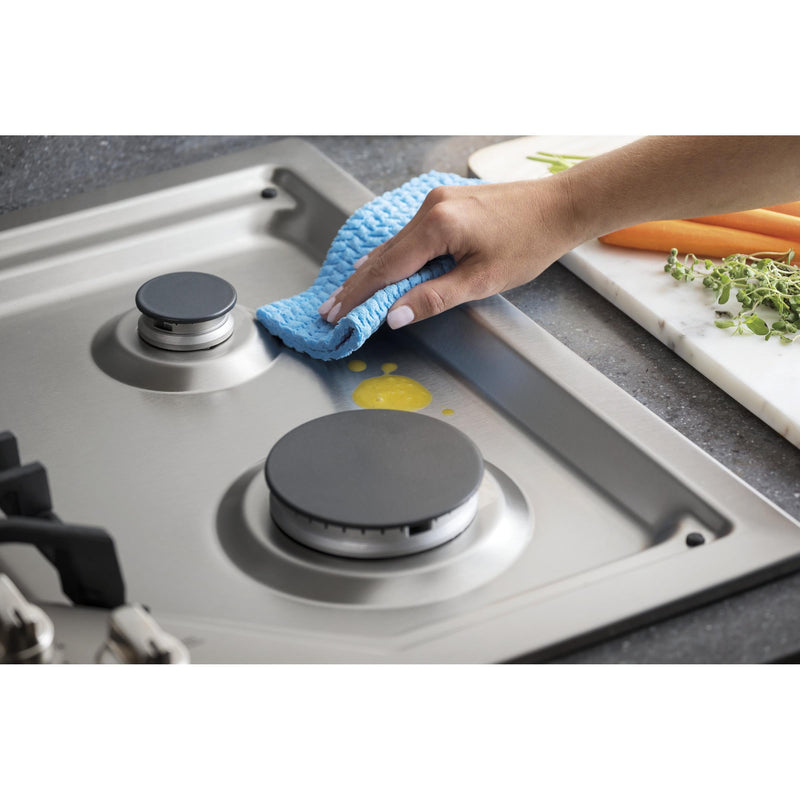

SEALED COOKTOP BURNERS
Contains spills and make cleaning quick and easy
MAX BURNER SYSTEM
Delivers the same maximum BTU power to propane and natural gas cooktops
FIT GUARANTEE
Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy.
OPTIONAL EXTRA-LARGE, INTEGRATED COOKTOP GRIDDLE
Eliminate the need for extra cookware and enjoy an optional built-in cooking surface for pancakes, grilled cheeses and other favorites
ADA COMPLIANT
Designed to be accessible and easy to open.
HEAVY-DUTY DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Burner - Center: 15,000 BTU Power Boil
• Burner - Right Front: 18,000 BTU Power Boil
• Burner - Left Rear: 9,500 BTU
• Burner - Left Front: 9,500 BTU
• Burner - Right Rear: 5000 BTU
• Burner - Right Front: 18,000 BTU Power Boil
• Burner - Left Rear: 9,500 BTU
• Burner - Left Front: 9,500 BTU
• Burner - Right Rear: 5000 BTU
Burners
Sealed
Surface Features
Deep Porcelain-Enamel
Features
Additional Information
• 18,000 BTU Power Boil burner
• Precise Simmer burner
• Heavy-duty, dishwasher safe grates
• MAX burner system
• Guaranteed Fit
• Precise Simmer burner
• Heavy-duty, dishwasher safe grates
• MAX burner system
• Guaranteed Fit
Electrical Information
Information
• 120 V
• 60 Hz
• 5 A
• 60 Hz
• 5 A
Accessories
Included
LP Conversion Kit
Optional
JXGRIDL236: extra-large, integrated cooktop griddle
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
5.5 inch(es) / 13.97 cm
Depth
21 inch(es) / 53.34 cm
Weight
39.99 lb(s) / 18.14 kg
Additional Dimensions
Cutout (W x D): 33-7/8" x 19-1/8"
Shipping Dimensions
Width
27.3 inch(es) / 69.34 cm
Height
11 inch(es) / 27.94 cm
Depth
39 inch(es) / 99.06 cm
Weight
46.01 lb(s) / 20.87 kg
Warranty
Warranty
Limited one year parts and labor
UPC
UPC#
084691822875
