Description

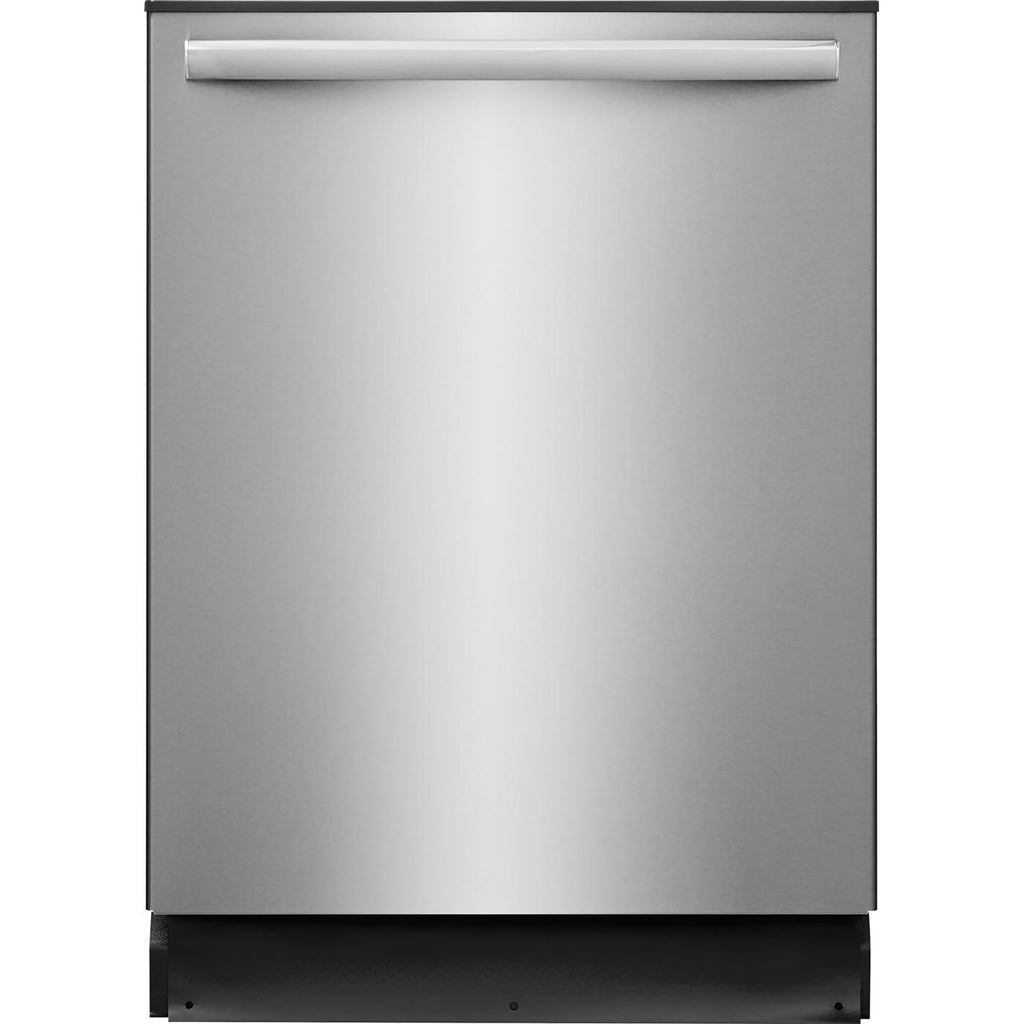

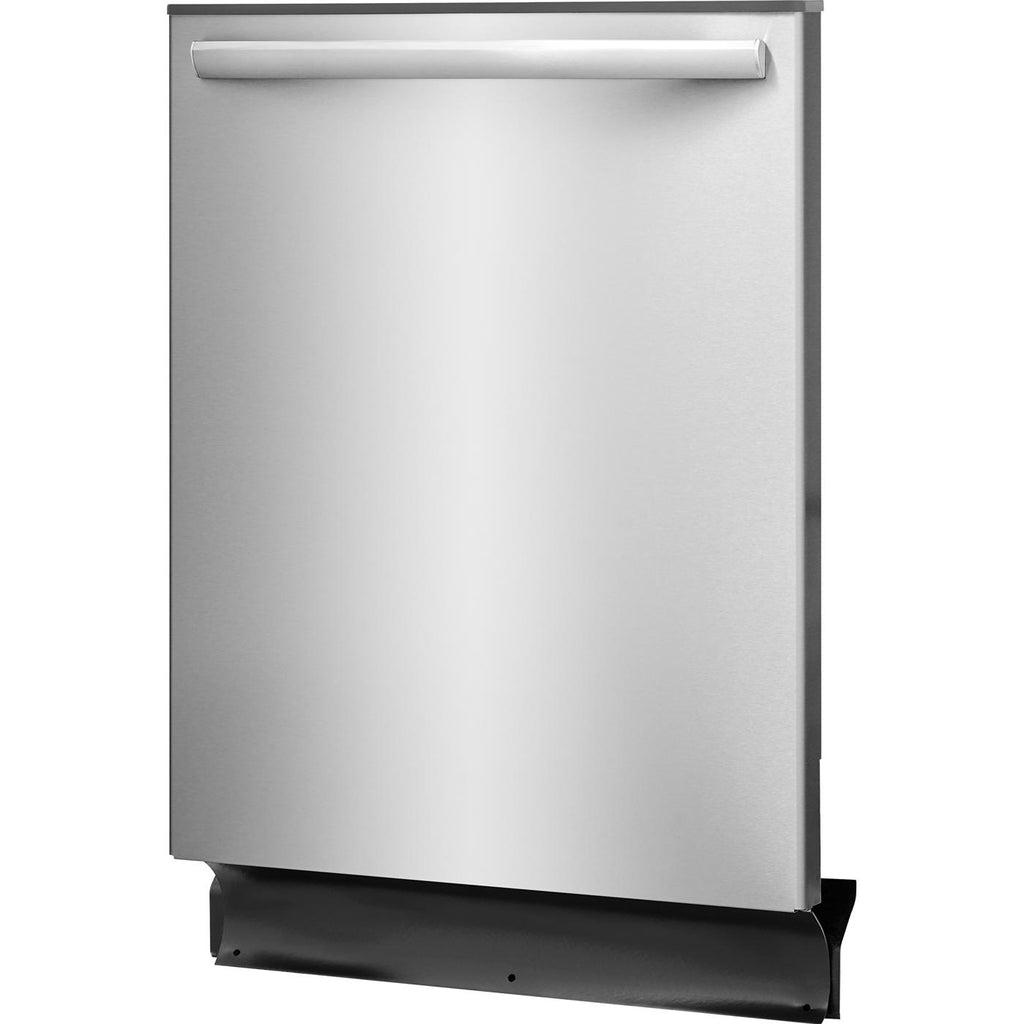

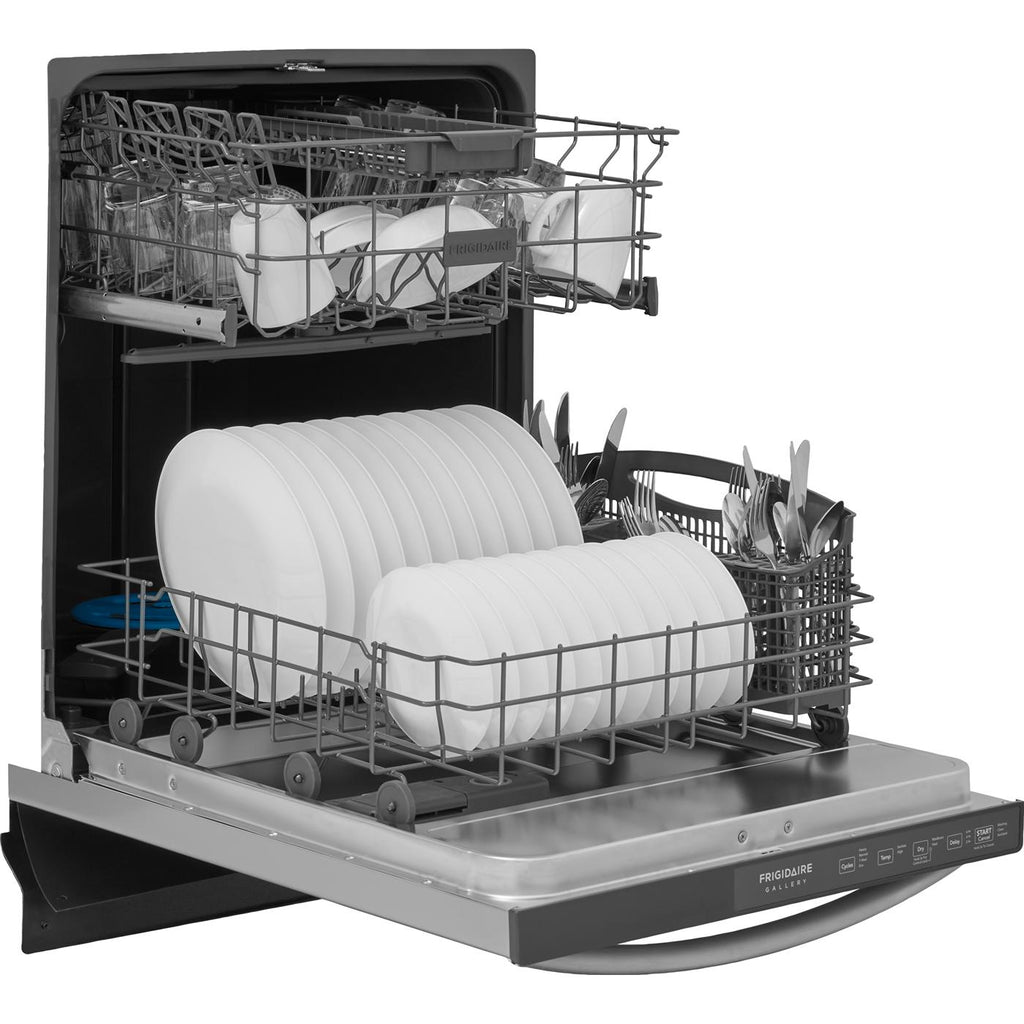

The Frigidaire Gallery 24" Built-In Dishwasher offers a more complete clean with sensor technology that adjusts cleaning performance based on soil levels and the OrbitClean® Wash System with multi-directional spray patterns. Forget the hand towel with the MaxBoost™ Dry system that delivers fast, effective drying every time. The FlexSlide upper tray adds space and versatility, easily accommodating silverware, cooking utensils, and other hard-to-fit items. Plus, with a 1-Hour Wash cycle, you’ll enjoy clean, ready-to-use dishes in less time, perfect for busy nights or effortless entertaining.
Applicable Rebate
Features
DISHSENSE® SENSOR TECHNOLOGY
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.

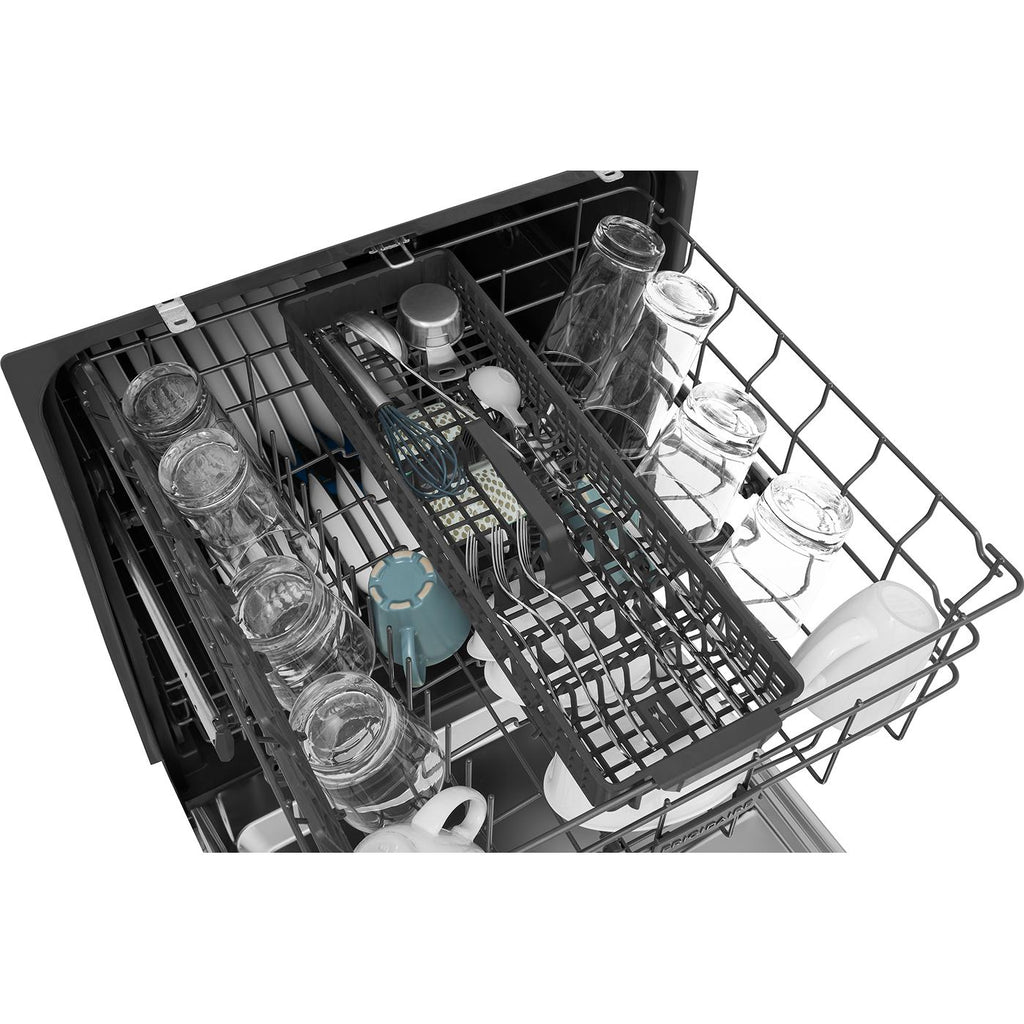

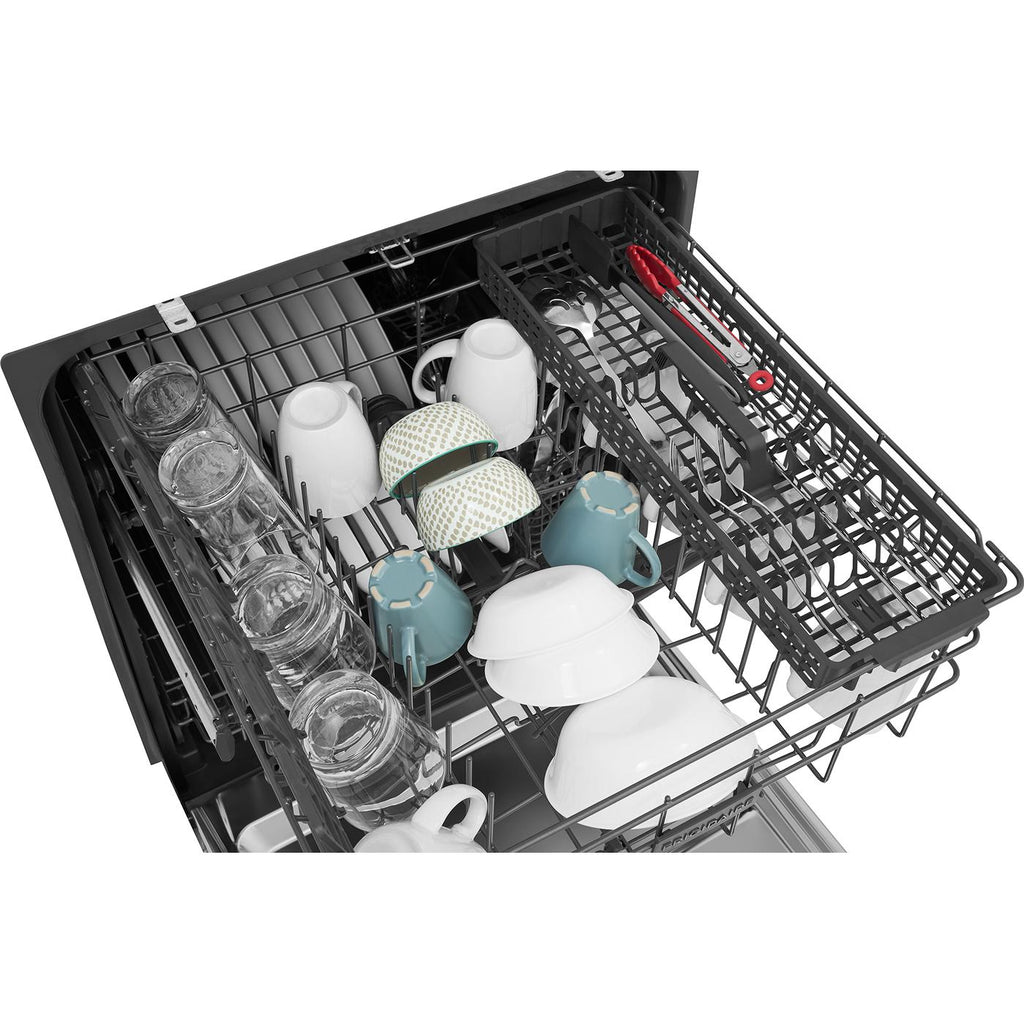

FLEXSLIDE UPPER TRAY
A movable upper tray lets you maximize every inch of space, perfect for silverware, utensils, and kitchen tools.
ENHANCED DRYING RESULTS WITH MAXBOOST DRY™
MaxBoost Dry™ technology uses heat and a fan to direct moisture out and pull in fresh air that dries your dishes.

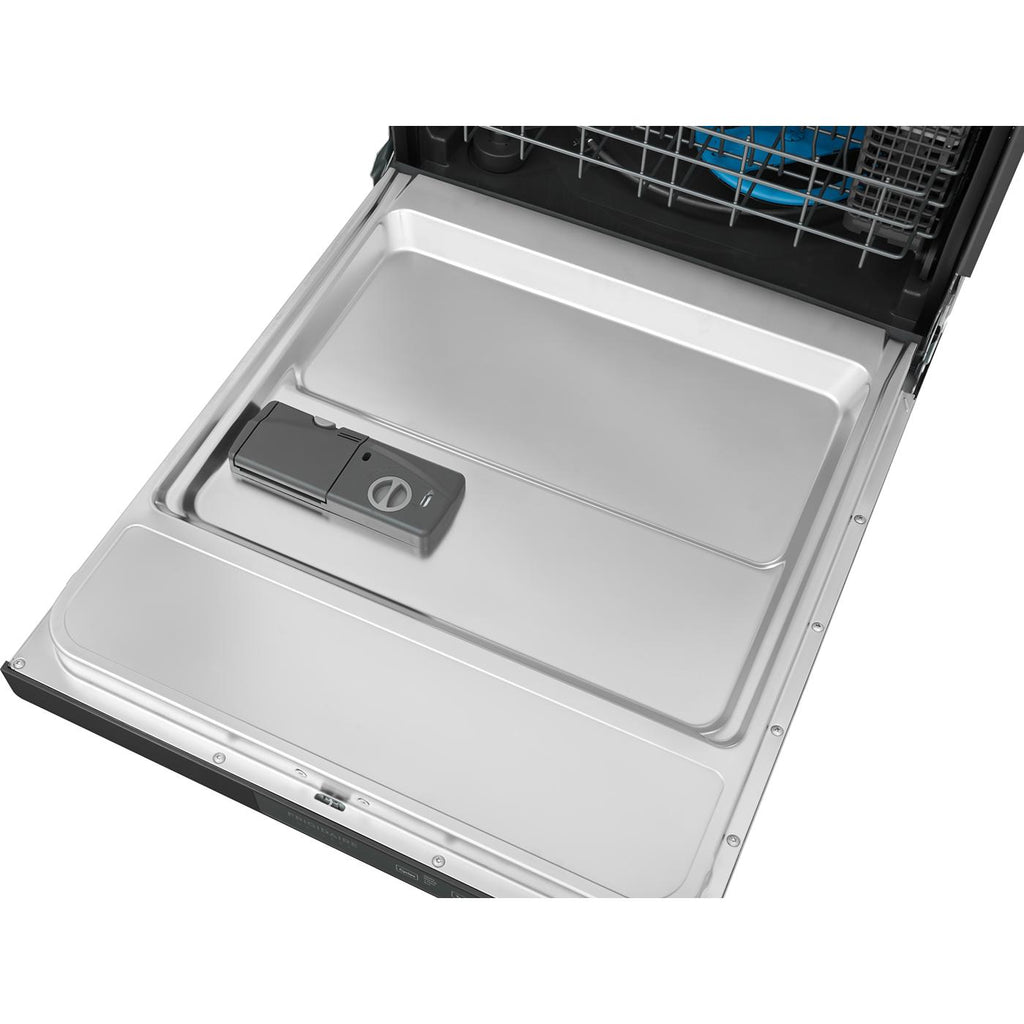

PREMIUM STAINLESS-STEEL INNER DOOR
Stainless Steel is durable, sleek, resists odors and stains, and is easy to clean.
1-HOUR WASH
Clean dishes in just 1 hour, perfect for busy nights or hosting, with the option to add MaxBoost™ Dry for sparkling, cabinet-ready results.

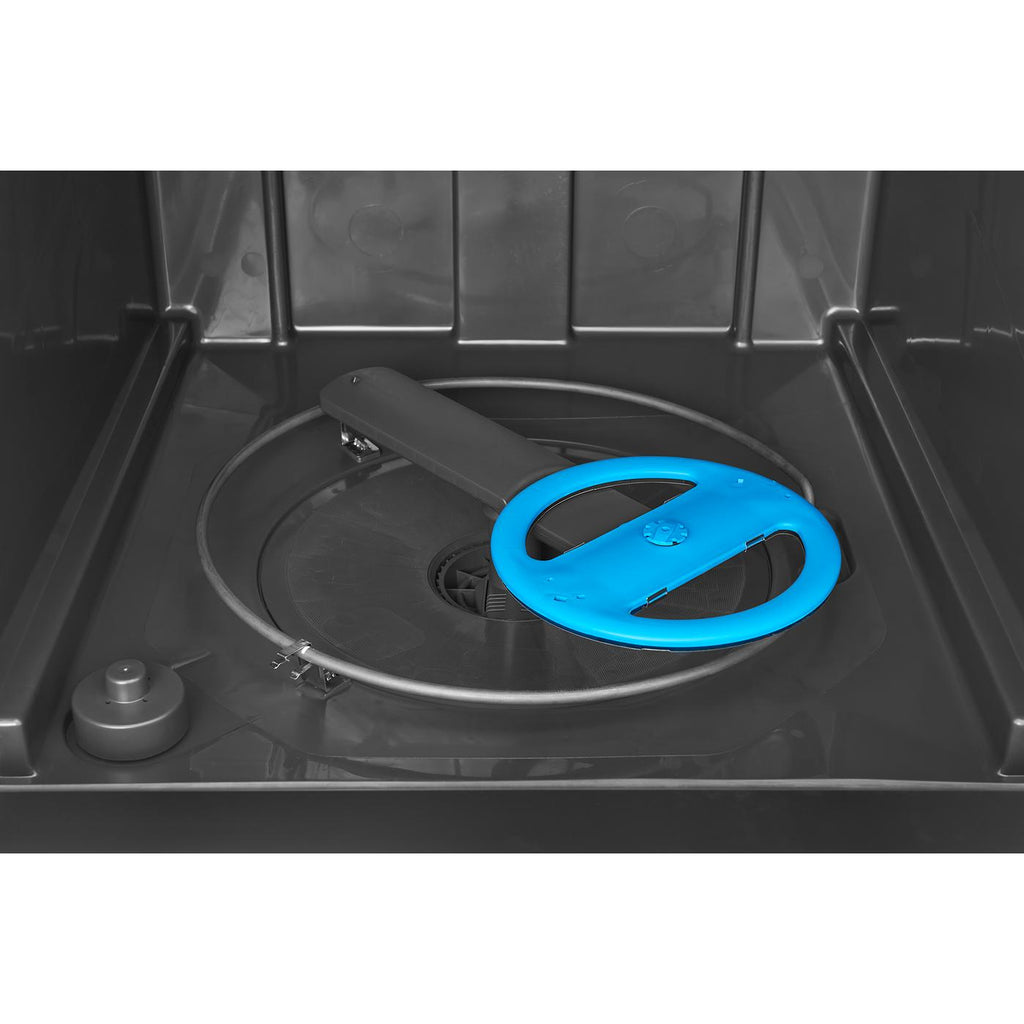

ORBITCLEAN® WASH SYSTEM.
OrbitClean® wash system uses a rotating wash arm with multi-directional spray patterns for maximum coverage without using more water.
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Smudge-Proof® Stainless Steel
Place Settings
14
Tub Material
Plastic
Silence Rating
51 dB
Cycle Information
Number of Cycles
4
Wash Cycles
• Energy Saver
• Heavy
• Normal
• Quick
• Heavy
• Normal
• Quick
Options
• Dry - Heat
• Dry - MaxBoost
• Drying System: MaxBoost • High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
• Dry - MaxBoost
• Drying System: MaxBoost • High Temperature
• Start/Cancel
• Washing Temperature - High
• Washing Temperature - Sanitize
Features
Delay Start Information
2-4-6 Hours
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Detergent Dispenser: Yes
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100%
• Hard Food Disposer or Filtration: Yes
• Interior Light: No
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser: Yes
• Smart Soil Sensor: Yes
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Blade
• Status Indicator Floor Beam: Yes
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash System: Direct Feed

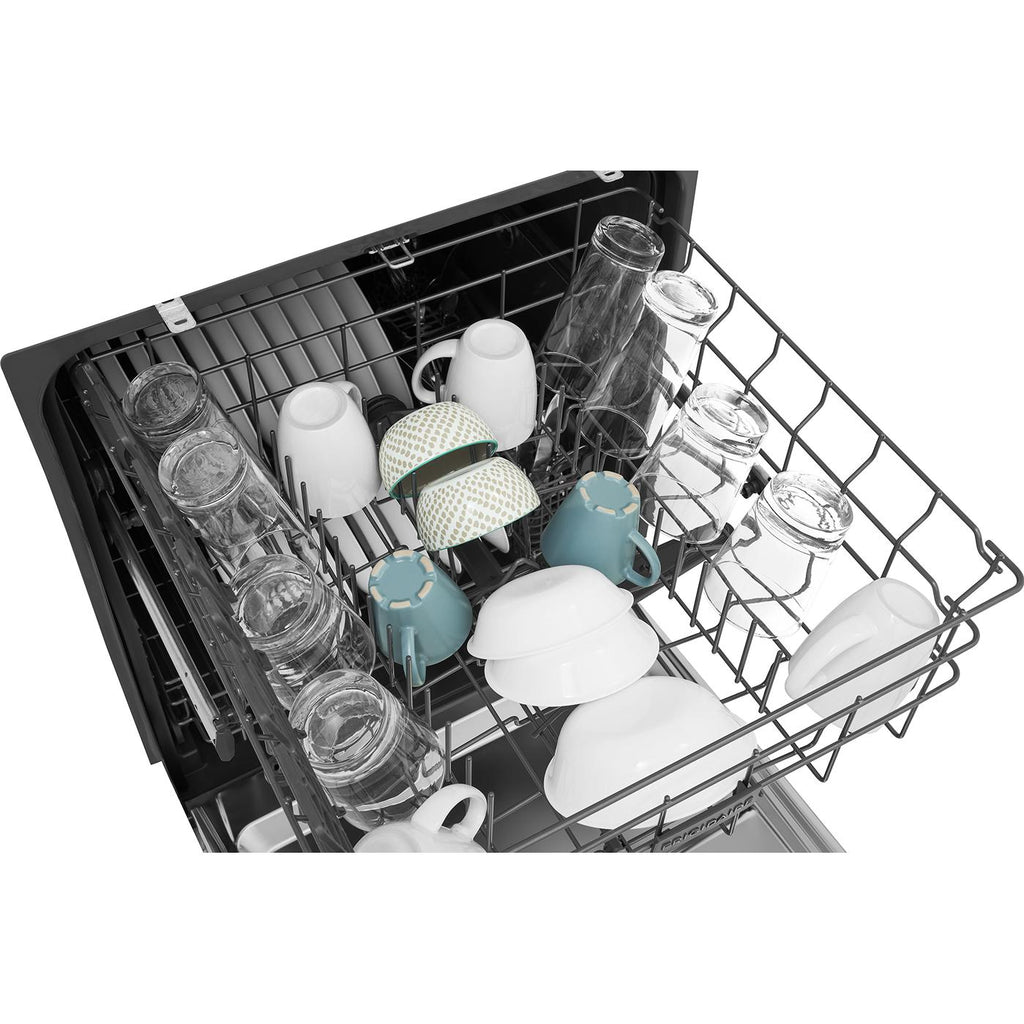

Upper Rack:
• Fold-Down: Yes
• Minimum Height Clearance: 8"
• Rack Coating: PVC
• Rack Handles: No
• Rack Spacer: Yes
• Rack Type: Standard
• Silverware Tray: Yes

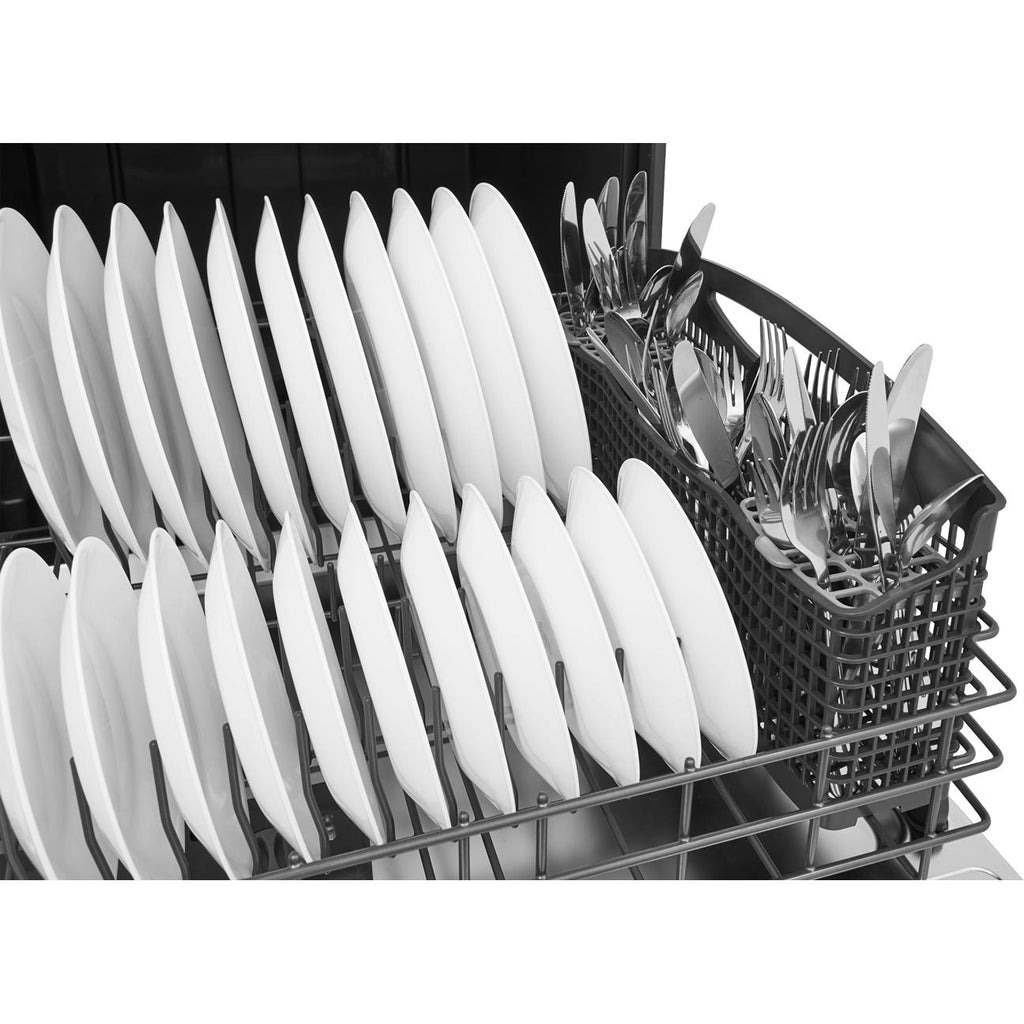

Lower Rack:
• Maximum Height Clearance: 13"
• Minimum Height Clearance: 11"
• Number of Silverware Basket: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: PVC
• Rack Type: Standard

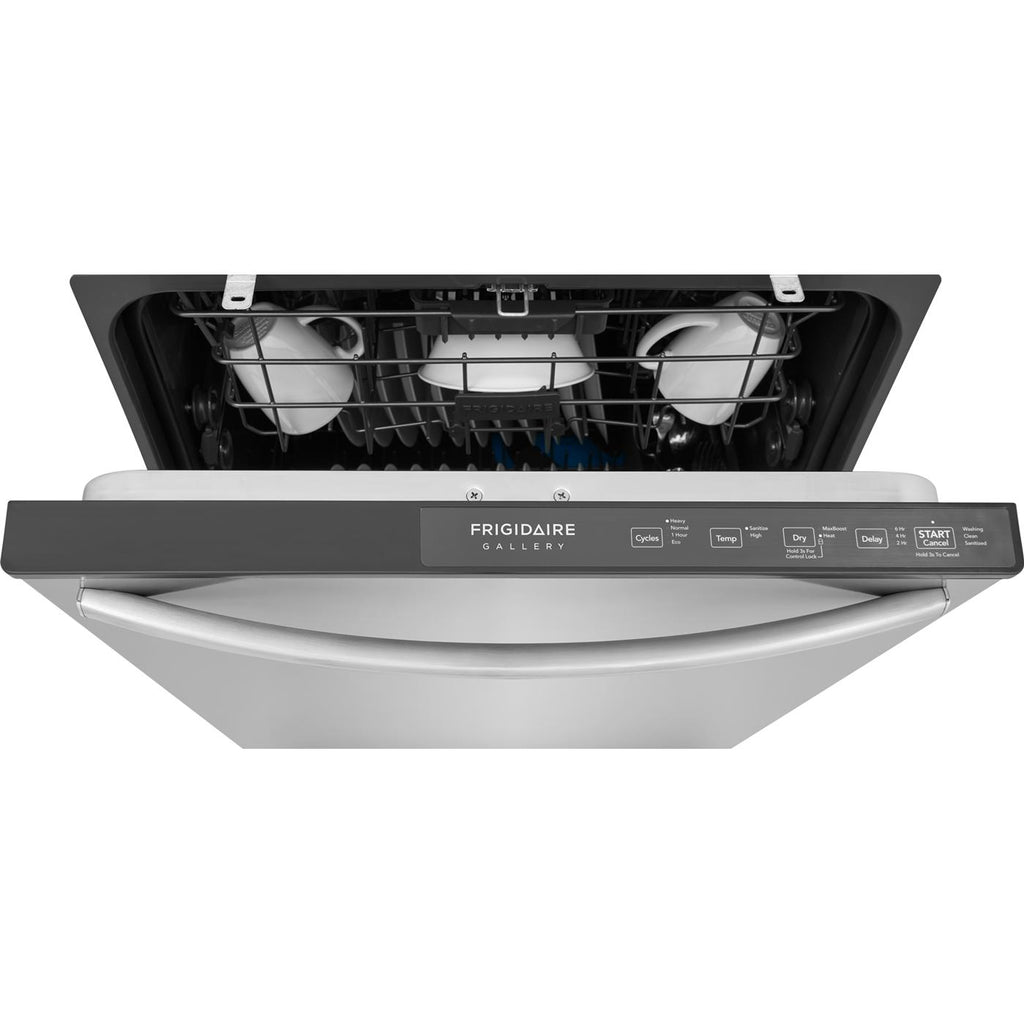

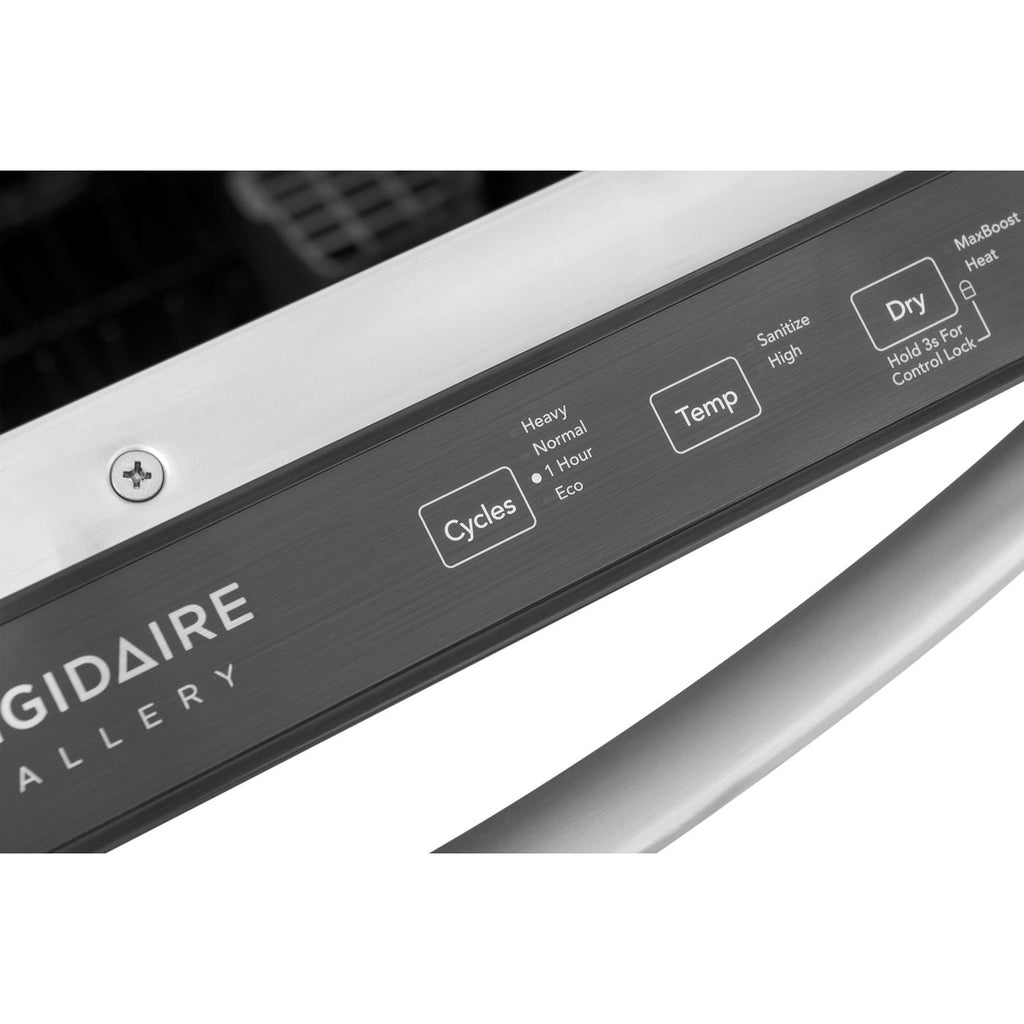

Controls:
• Control Location: Top
• Rinse Aid Indicator: Yes
Installation:
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
Exterior:
• Door and Handle Design: Handle
• Door Latch: Pull
• Door Type: StayPut
• Prop 65 Label
• Filter Material: Plastic
• Filter Trap: Removable
• Filtered Water: 100%
• Hard Food Disposer or Filtration: Yes
• Interior Light: No
• Motor Speeds: Single-Speed
• Rinse Aid Dispenser: Yes
• Smart Soil Sensor: Yes
• Lower Spray Arm: Orbit
• Middle Spray Arm: Bi-Beam
• Upper Spray Arm: Blade
• Status Indicator Floor Beam: Yes
• Tub Color: Midnight Ink
• Tub Design: Tall Tub
• Wash System: Direct Feed
Upper Rack:
• Fold-Down: Yes
• Minimum Height Clearance: 8"
• Rack Coating: PVC
• Rack Handles: No
• Rack Spacer: Yes
• Rack Type: Standard
• Silverware Tray: Yes
Lower Rack:
• Maximum Height Clearance: 13"
• Minimum Height Clearance: 11"
• Number of Silverware Basket: 1
• Number of Silverware Basket Lids: 2
• Rack Coating: PVC
• Rack Type: Standard
Controls:
• Control Location: Top
• Rinse Aid Indicator: Yes
Installation:
• Connection Location: Right Bottom
• Number of Leveling Legs: 4
• Water Inlet Location: Left Bottom Front
Exterior:
• Door and Handle Design: Handle
• Door Latch: Pull
• Door Type: StayPut
• Prop 65 Label
Electrical Information
Information
• Amps @ 120 Volts: 10 Amps
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
• Annual Energy: 240 kWh
• Connected Load @ 120V: 1.2 kW
• Voltage Rating: 120 V
• Annual Energy: 240 kWh
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
Information
• CEE Tier: Tier 1
• cUL Listed
• ETL Listed
• Meets ASSE 1006 Requirements
• cUL Listed
• ETL Listed
• Meets ASSE 1006 Requirements
Dimensions
Class Width
24"
Width
24 inch(es) / 60.96 cm
Height (Min.)
33.5 inch(es) / 85.09 cm
Depth (Including Handle)
26.75 inch(es) / 67.95 cm
Additional Dimensions
• Maximum Height: 35"
• Depth: 25"
• Depth With Door Open: 49 1/4"
• Depth: 25"
• Depth With Door Open: 49 1/4"
Warranty
Warranty
1 Year Parts and Labor
