Description

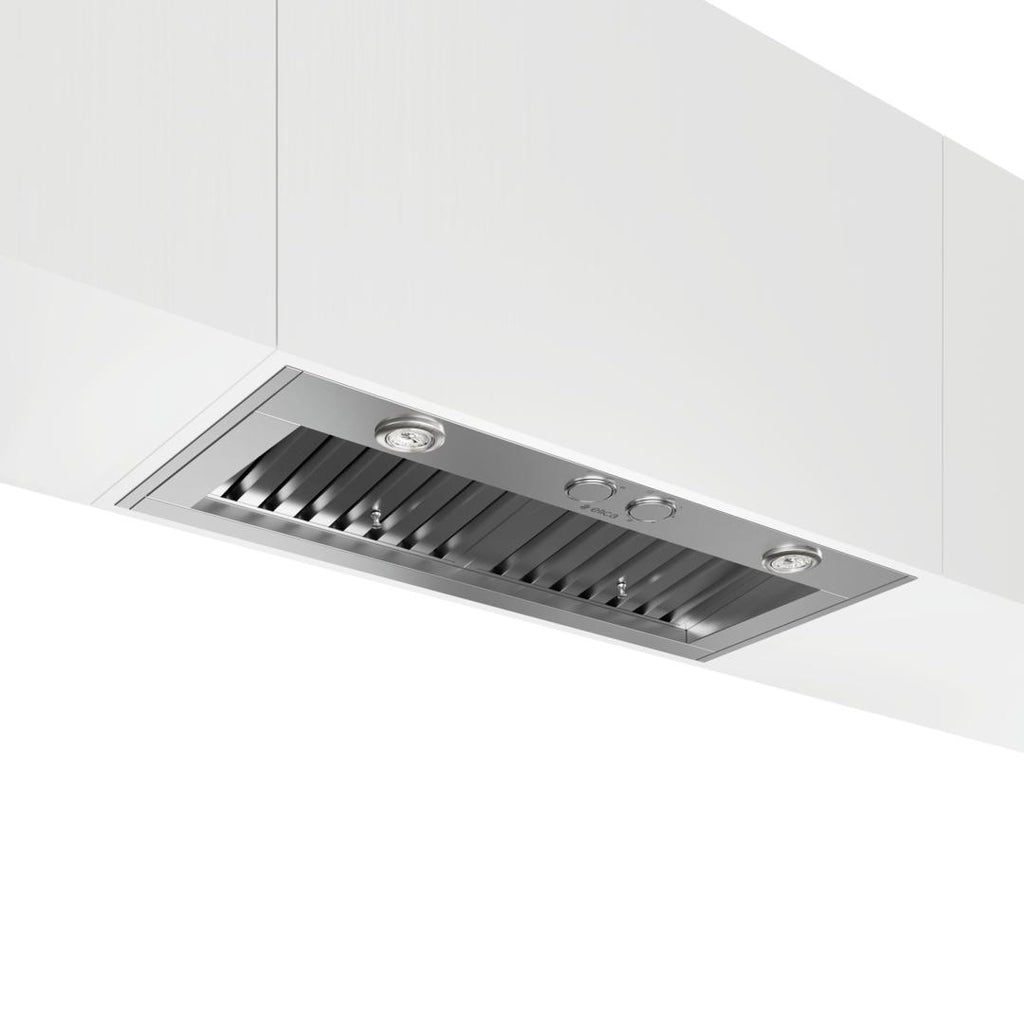

Elica Scanno 34" Cabinet Insert with only 15 5/8” depth make it perfect to discreetly mount it inside any slim cabinet. While having a powerful performance of 600 and 1200 CFM blower for extraordinary ventilating power. Plus the All-In-One design avoids the need to purchase a stainless liner. Hidden metallic in/out knob controls operate the 4-speed blower and LED Lighting.
Features
HUSH SYSTEM
An exclusive sound deadening technology that effectively reduces sound levels by over 35%, compared to typical range hoods.
STAINLESS STEEL BAFFLE FILTERS WITH GREASE COLLECTORS
Designed for high airflow cooking, the “S” shape design traps high volumes of grease.
SEAMLESS CRAFTSMANSHIP
Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
HEATGUARD TECHNOLOGY
The hood and cabinetry will be protected from excessive heat by sensing extreme temperatures and automatically adjusting blower speeds accordingly.
Specifications
General
Series Name
Scanno
Blower Included
Yes
Airflow
1200 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
10" Round with BackDraft Damper (top only)
Speeds
4-speed
Additional Information
• Controls: Fully retractable rotating knobs with white backlighting
• Noise: 8.5 Sones
• Illumination: 2 LED, 7.5 W 3000 Kelvin, 540 lumens/lamp
• Grease Filter: Dishwasher-Safe, Professional Stainless Steel Baffle Filters
• Noise: 8.5 Sones
• Illumination: 2 LED, 7.5 W 3000 Kelvin, 540 lumens/lamp
• Grease Filter: Dishwasher-Safe, Professional Stainless Steel Baffle Filters
Electrical Information
Information
120V - 60 Hz, 913 W
Certifications and Approvals
Hvi Certified
Yes
Information
• UL listed
• cUL listed
• cUL listed
Accessories
Optional
• 1200 CFM External Blower Kit: KIT0153054
• 1200 CFM Inline Blower Kit: KIT0154387
• 10" to 8" transition KIT: KIT0154387 (1200 CFM)
• Inline Blower Shell Kit: KIT0179549 ( for use with 1200 CFM blowers only)
• External Blower Shell Kit: KIT0179547 (for use with 1200 CFM blowers only)
• Electronic CFM Reduction Bypass Kit: KIT0185752 (for 600 CFM Blower),KIT0185099 (for 1200 CFM Blower)
• 1200 CFM Inline Blower Kit: KIT0154387
• 10" to 8" transition KIT: KIT0154387 (1200 CFM)
• Inline Blower Shell Kit: KIT0179549 ( for use with 1200 CFM blowers only)
• External Blower Shell Kit: KIT0179547 (for use with 1200 CFM blowers only)
• Electronic CFM Reduction Bypass Kit: KIT0185752 (for 600 CFM Blower),KIT0185099 (for 1200 CFM Blower)
Dimensions
Class Width
34"
Width
34.5 inch(es) / 87.63 cm
Height
11.94 inch(es) / 30.32 cm
Depth
15.67 inch(es) / 39.8 cm
Warranty
Warranty
• Two (2) Years Parts and In-Home Labor
• Earn an additional One (1) Year of Parts and In-Home Labor by registering on elica.com
• Earn an additional One (1) Year of Parts and In-Home Labor by registering on elica.com
