Description

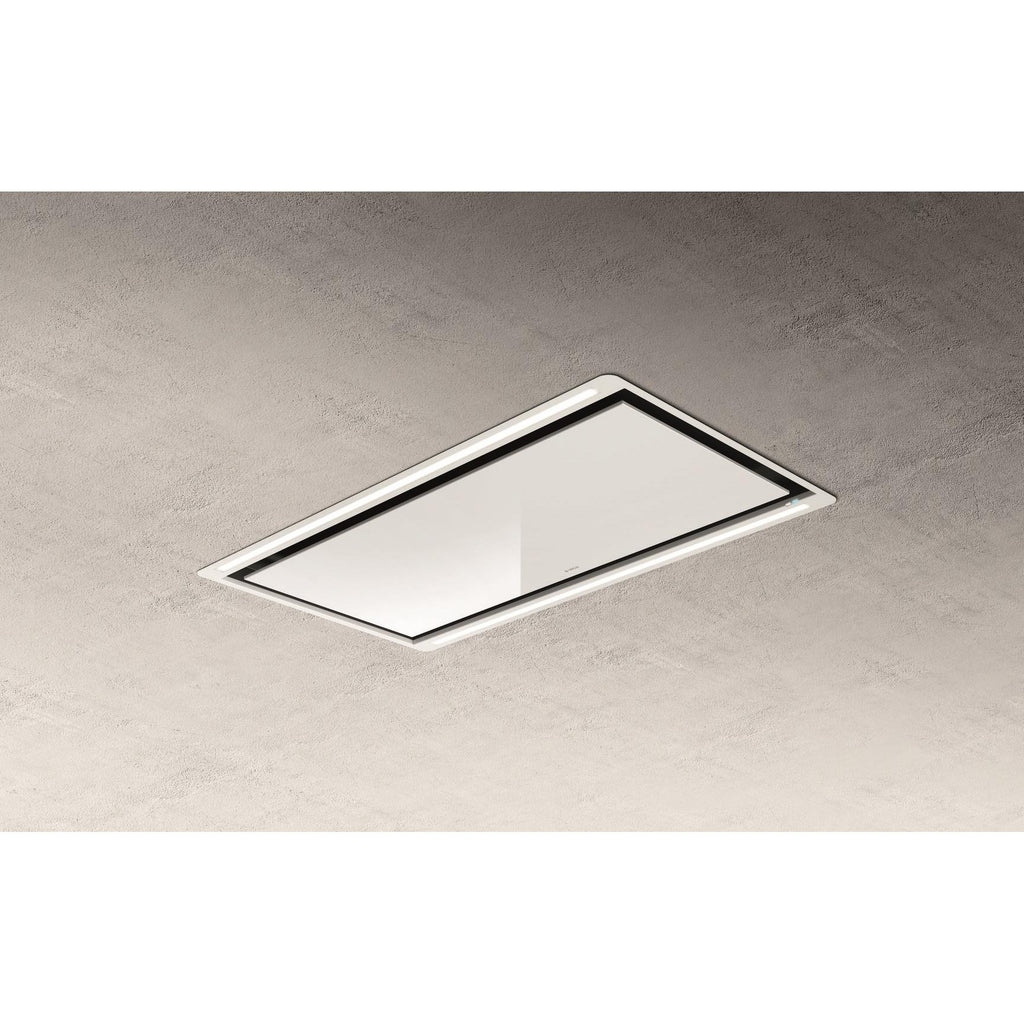

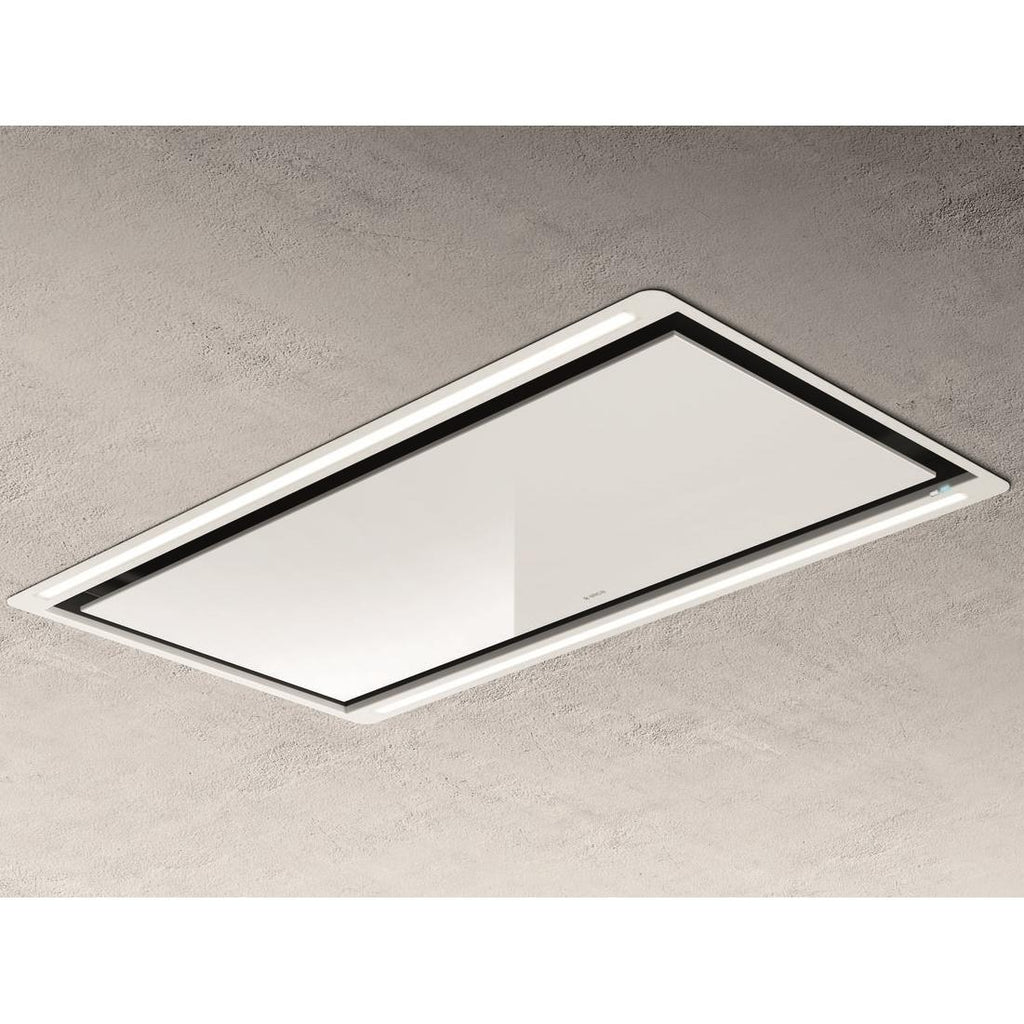

Characterized by essential lines, Hilight totally fits the kitchen architectural style with a perfectly flush installation leaving the space above the hob completely free and without view obstructions. Comfort in the kitchen is guaranteed by the powerful and silent suction heart concealed in the ceiling combined with the adaptable light intensity that create the right environment in every moment. All maintenance operations can be carried on opening the side panel without any effort, and in this way, the hood can be easily preserved clean and fully functional.
Features
DIM-LIGHT
The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
TOP PERFORMANCE
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's.
LONG LIFE FILTER
One of a kind odour filter, capable of regenerating itself and of lasting up to 3 years. To maintain these characteristics, the filter only requires simple maintenance: wash every 2 or 3 months with hot water and mild soap (also in dishwasher at 65 degrees) and dry in the oven for ten minutes at 100 degrees.
TOTAL INTEGRATION
These products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
TUNE WHITE
The ability to choose the preferred shade of white always creates the right atmosphere. The Kelvin degrees regulation starts from a very warm tone, 2400°K, to experience intimate and convivial moments, up to a cold colour, 5000°K.
REMOTE CONTROL
Elica’s ADA compliant Remote Control, provides added convenience to the typical user, as well as, full-function access for those with limited mobility.
Specifications
General
Series Name
• Hilight
• Iconic Series
• Iconic Series
Blower Included
Yes
Airflow
600 CFM
Style
Custom Insert
Color
White
Manufacturer Color
White Glass with Metal white frame
Installation
Built-In
Features
Ducting Information
• Duct transition: 2"
• Installation type: Duct Out
• Installation type: Duct Out
Speeds
• Speed 1: 215 CFM
• Speed 2: 345 CFM
• Speed 3: 485 CFM
• Boost: 540 CFM
• Speed 2: 345 CFM
• Speed 3: 485 CFM
• Boost: 540 CFM
Additional Information
• Controls: 3S + 1B Remote Control
• Illumination: Strip LED 2 x 14 W
• Filter type: Grease aluminum filter
• Illumination: Strip LED 2 x 14 W
• Filter type: Grease aluminum filter
Electrical Information
Information
• 120 V
• 60 Hz
• 60 Hz
Accessories
Optional
Recirculating kit: KIT0167875
Dimensions
Class Width
40"
Width
39 inch(es) / 99.06 cm
Height
11.88 inch(es) / 30.18 cm
Depth
22.44 inch(es) / 57.01 cm
Warranty
Warranty
2-Year parts and labor
