Description

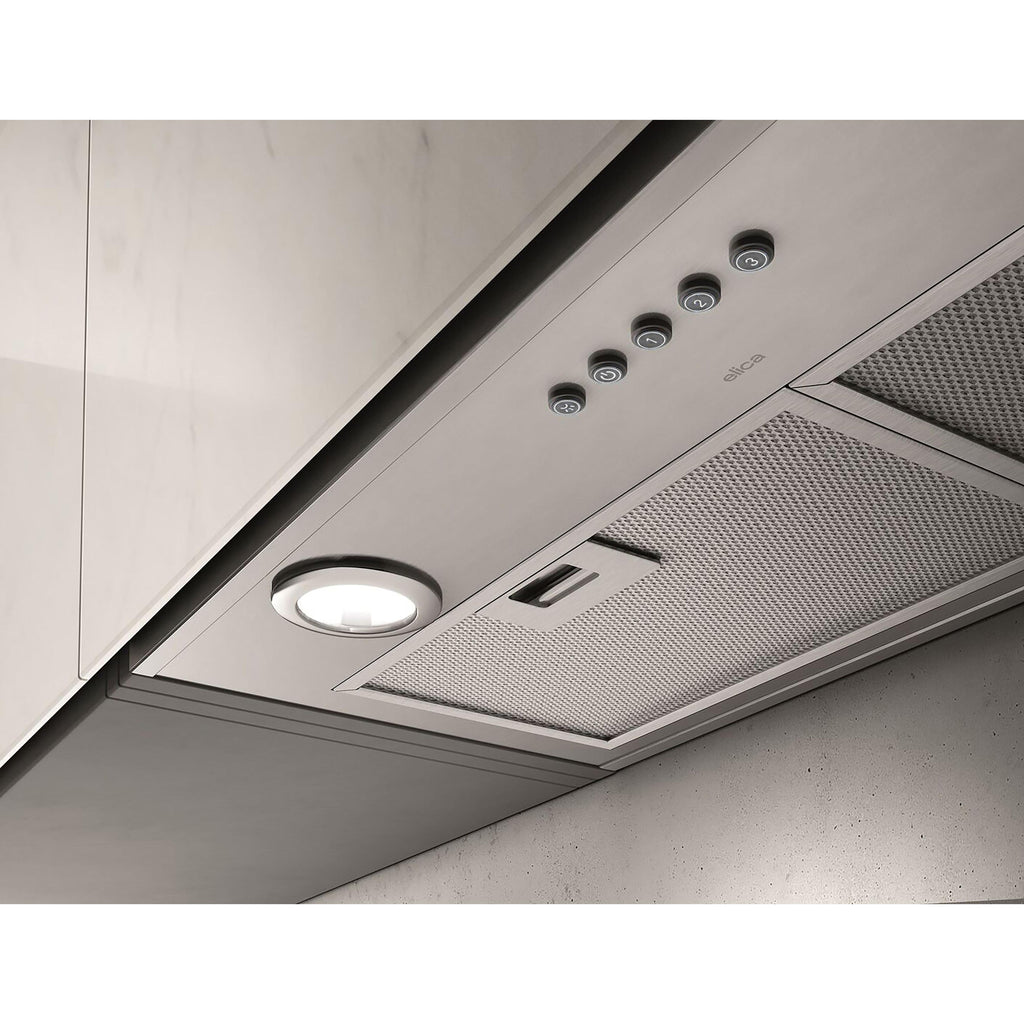

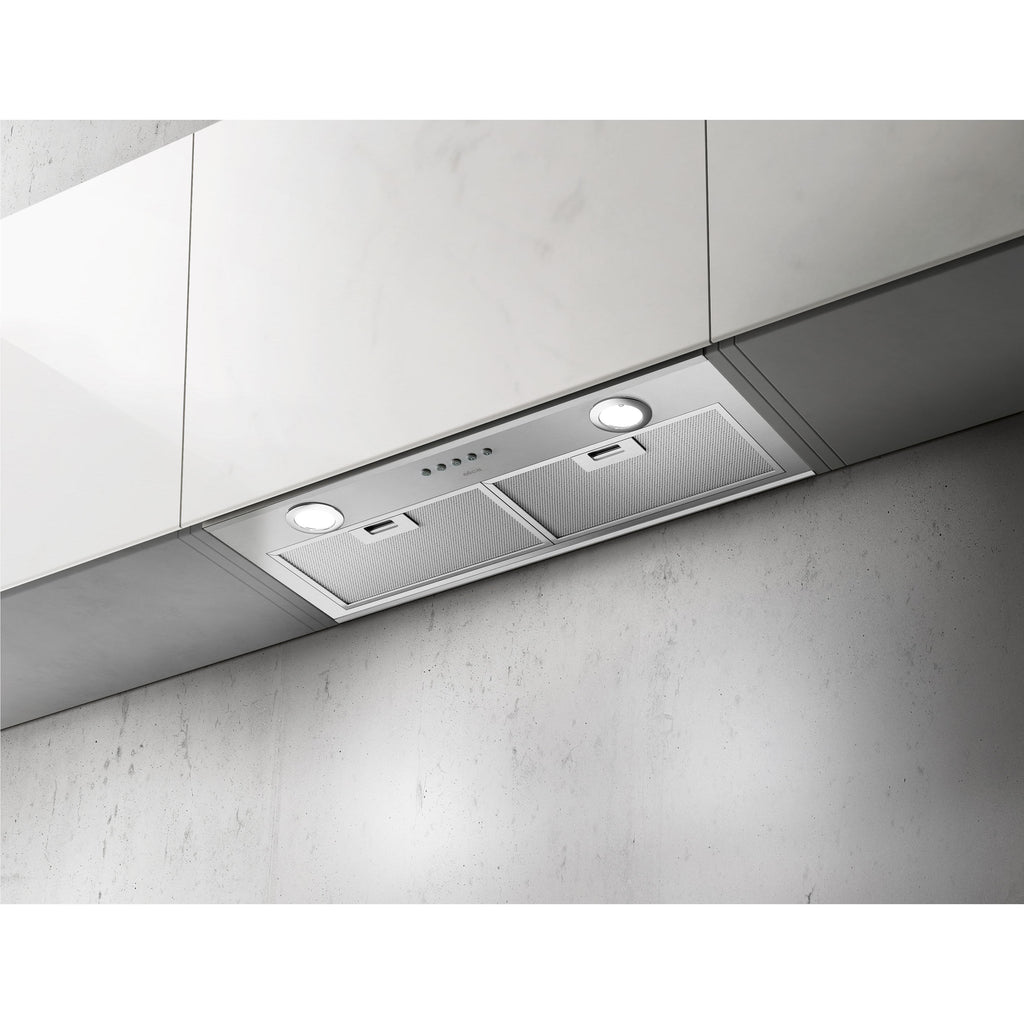

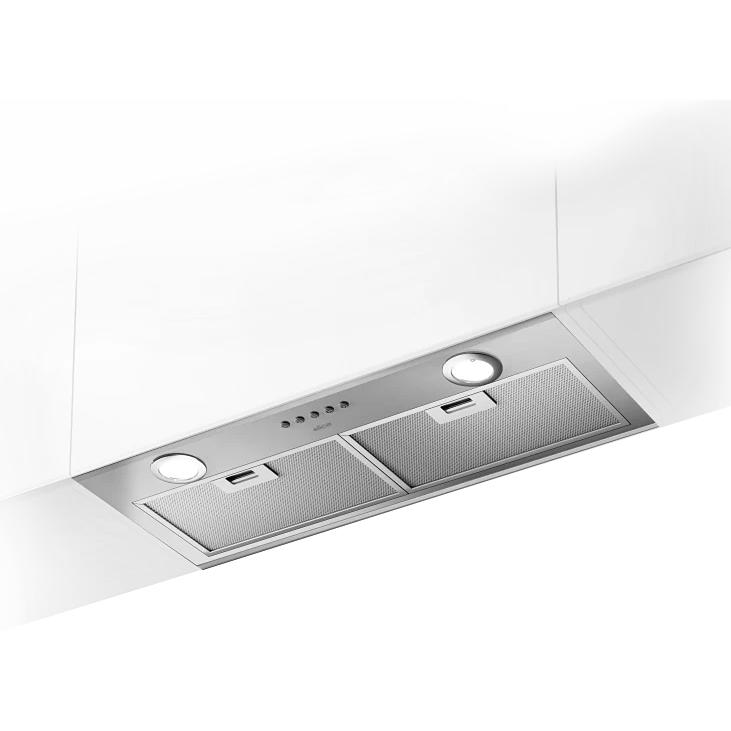

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry, and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh
filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation, now with a snap system that make it safer and easier to install.
filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation, now with a snap system that make it safer and easier to install.
Specifications
General
Series Name
Asti
Blower Included
Yes
Airflow
400 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
6" Round
Speeds
3 Speeds
Additional Information
• Noise (Min-max sones): 0.4-5.0 Sones
• Illumination: 2 LED, 2.1W, 4000K, 235 Lumen
• Controls: Backlit electronic push buttons
• 2 Dishwasher-Safe, Anodized aluminum mesh filter
• Illumination: 2 LED, 2.1W, 4000K, 235 Lumen
• Controls: Backlit electronic push buttons
• 2 Dishwasher-Safe, Anodized aluminum mesh filter
Electrical Information
Information
• 120 V
• 60 Hz
• 289 W
• 60 Hz
• 289 W
Accessories
Optional
• Recirculating Kit: KIT02770 (contains 2 carbon filters)
• CFM Reduction: KIT0175561 (achieves <300 CFM)
• CFM Reduction: KIT0175561 (achieves <300 CFM)
Dimensions
Class Width
22"
Width
22.5 inch(es) / 57.15 cm
Height
9.5 inch(es) / 24.13 cm
Depth
10.75 inch(es) / 27.31 cm
Warranty
Warranty
2 Years Parts and Labor
Documents
