Description

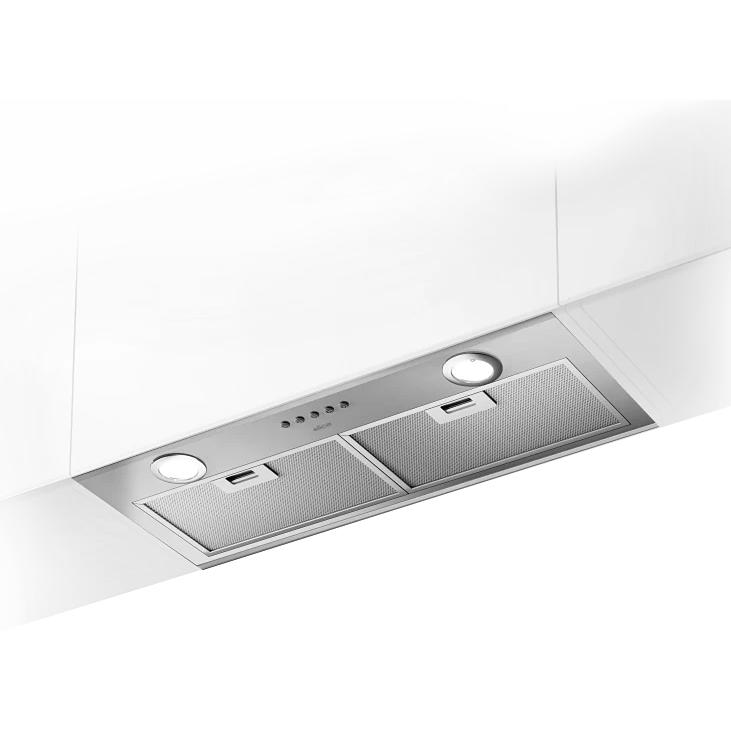

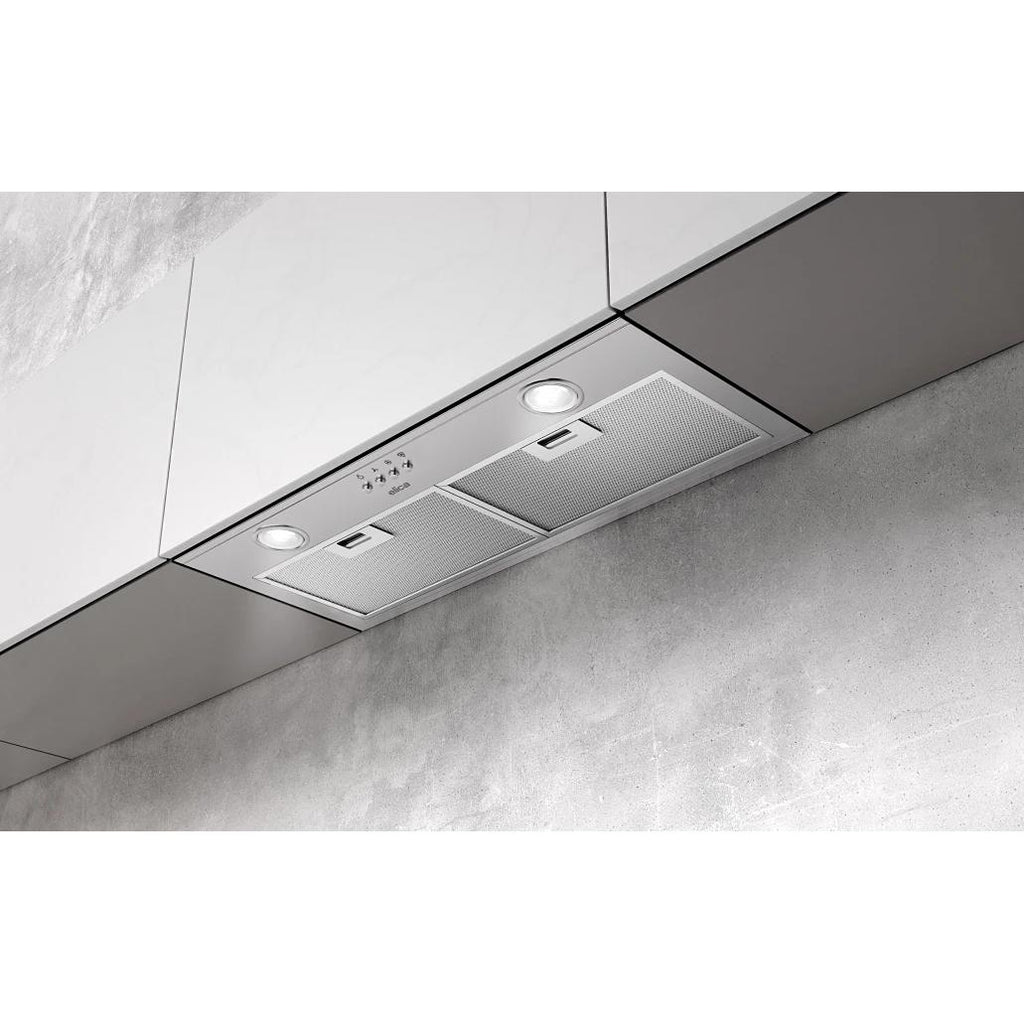

With a 300 CFM blower, Asti is capable of meeting most cooking needs. Its convenient Mechanical Push Button Controls operate the 3-speed blower and LED lighting, while its dishwasher-safe anodized aluminum mesh filters, ensure effortless maintenance. Asti is designed for both standard ducted and recirculating installations. Now, featuring a snap-on easy installation mechanism and exhaust outlets located at both the top and rear for enhanced functionality.
Specifications
General
Series Name
Asti
Blower Included
Yes
Airflow
300 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
6" Round
Speeds
3 Speeds
Additional Information
• Noise (Min-max sones): 1.7 - 4.0 Sones
• Illumination: 2 LED, 6.5W, 4000K, 235 Lumen
• Controls: Backlit electronic push buttons
• 2 Dishwasher-Safe, Anodized aluminum mesh filter
• Illumination: 2 LED, 6.5W, 4000K, 235 Lumen
• Controls: Backlit electronic push buttons
• 2 Dishwasher-Safe, Anodized aluminum mesh filter
Electrical Information
Information
• 120 V
• 60 Hz
• 260 W
• 60 Hz
• 260 W
Accessories
Optional
• Recirculating kit KIT02770 (contains 2 carbon filters & 6" round deflector grate)
• 30" hood liner KIT02773 (29W x 17 1/?"-20 1/?"D x 4"H)
• 36" hood liner KIT02774 (35W x 17 1/?"-20 1/?"D x 4"H)
• 30" hood liner KIT02773 (29W x 17 1/?"-20 1/?"D x 4"H)
• 36" hood liner KIT02774 (35W x 17 1/?"-20 1/?"D x 4"H)
Dimensions
Class Width
28"
Width
28.25 inch(es) / 71.76 cm
Height
9.5 inch(es) / 24.13 cm
Depth
10.75 inch(es) / 27.31 cm
Warranty
Warranty
2 Years Parts and Labor
