Description

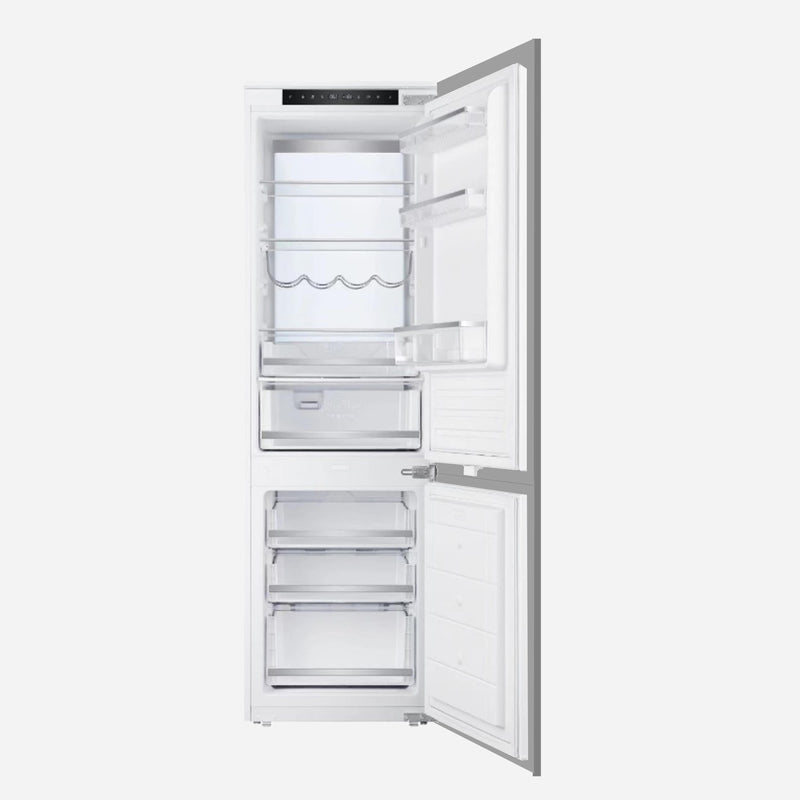

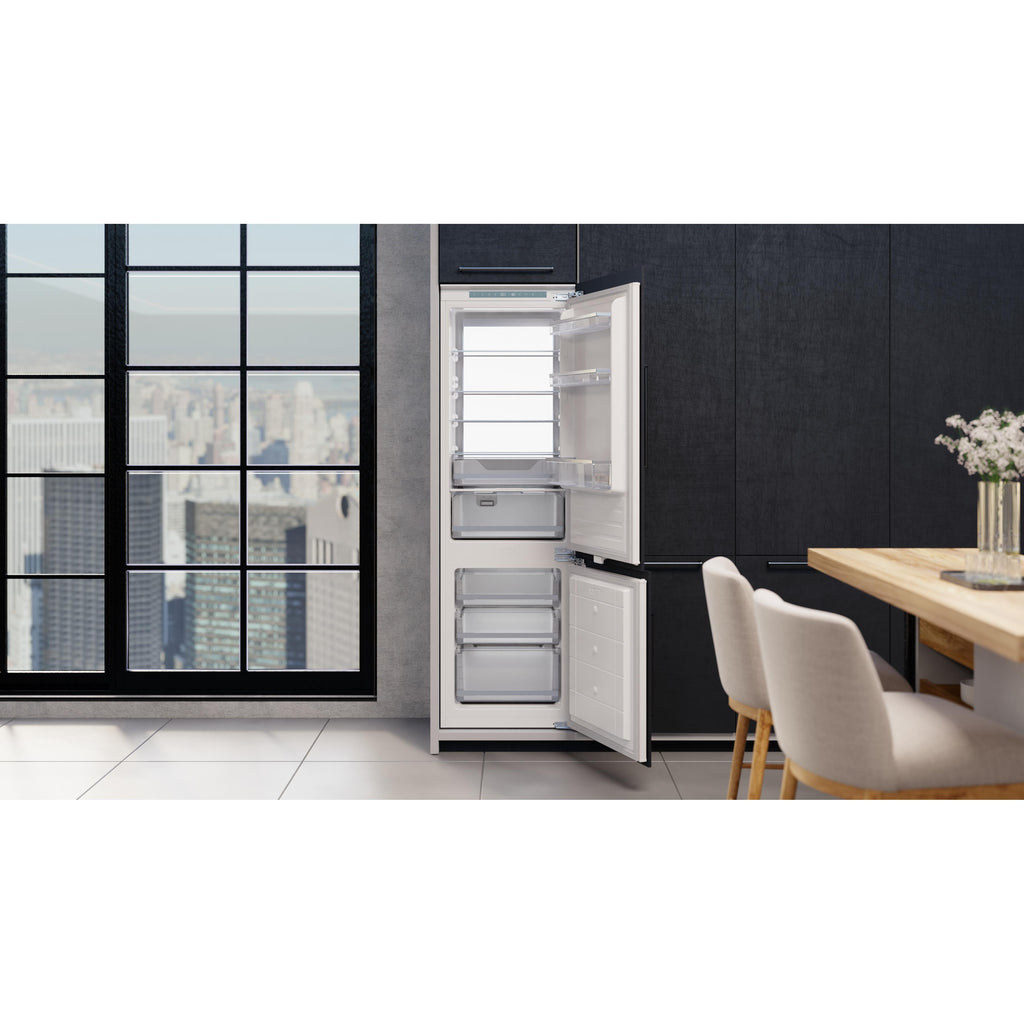

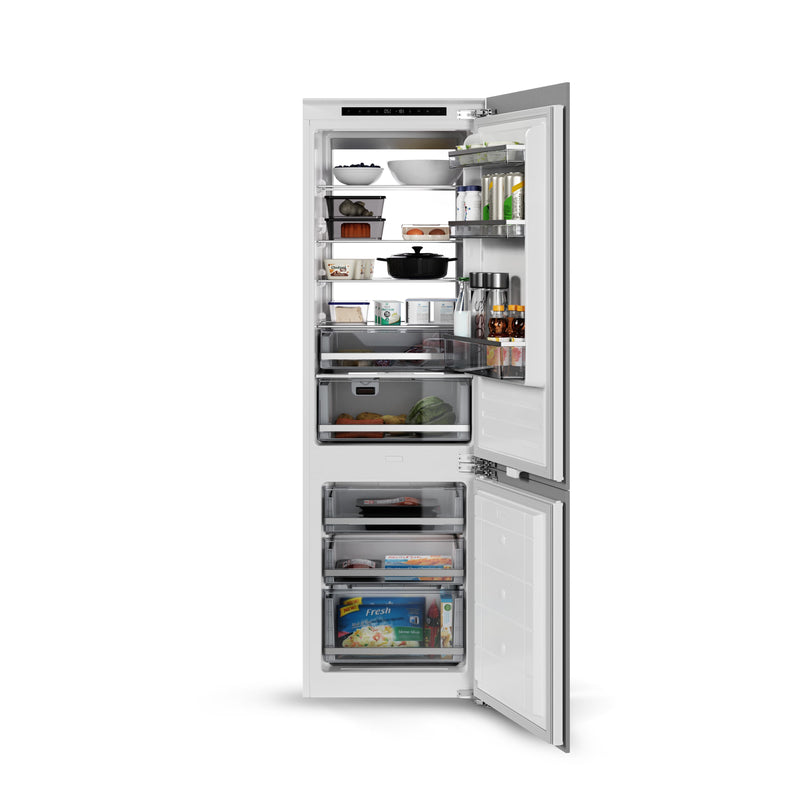

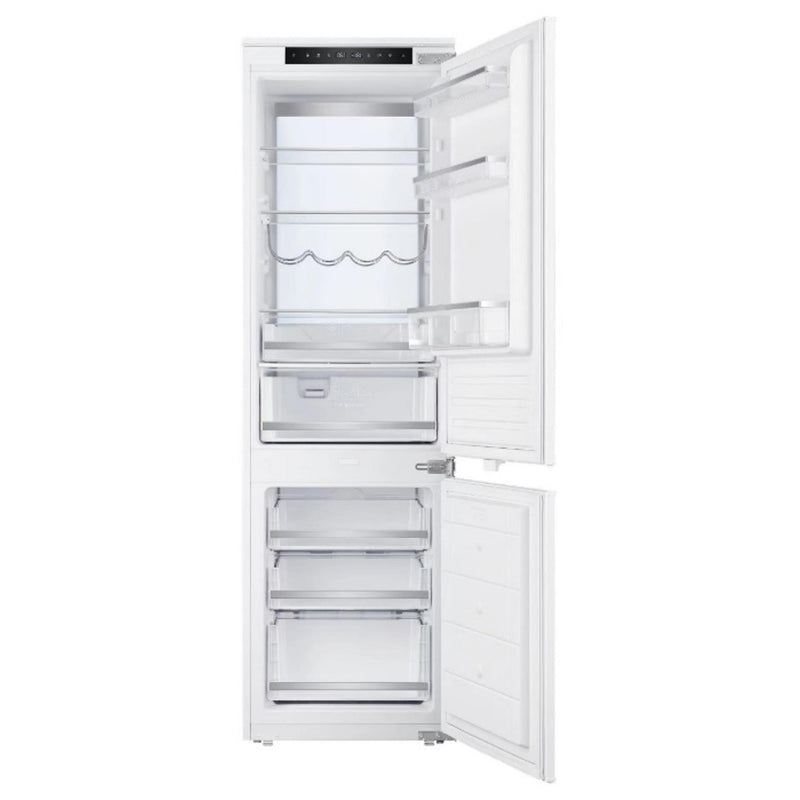

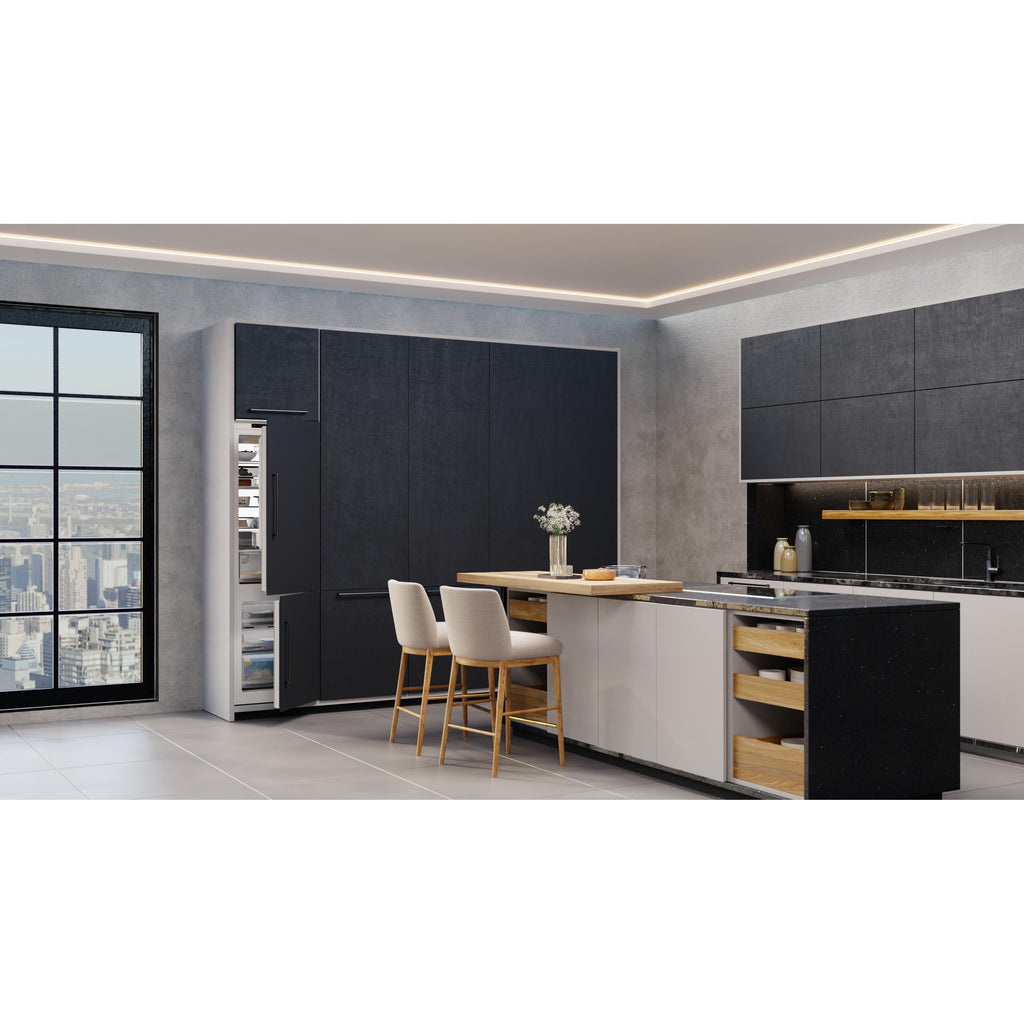

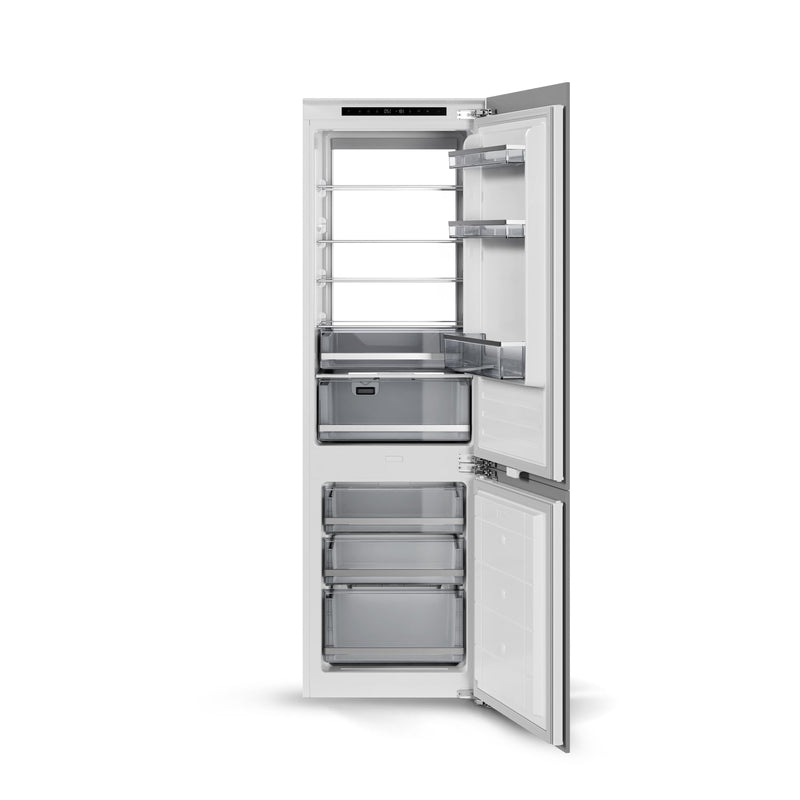

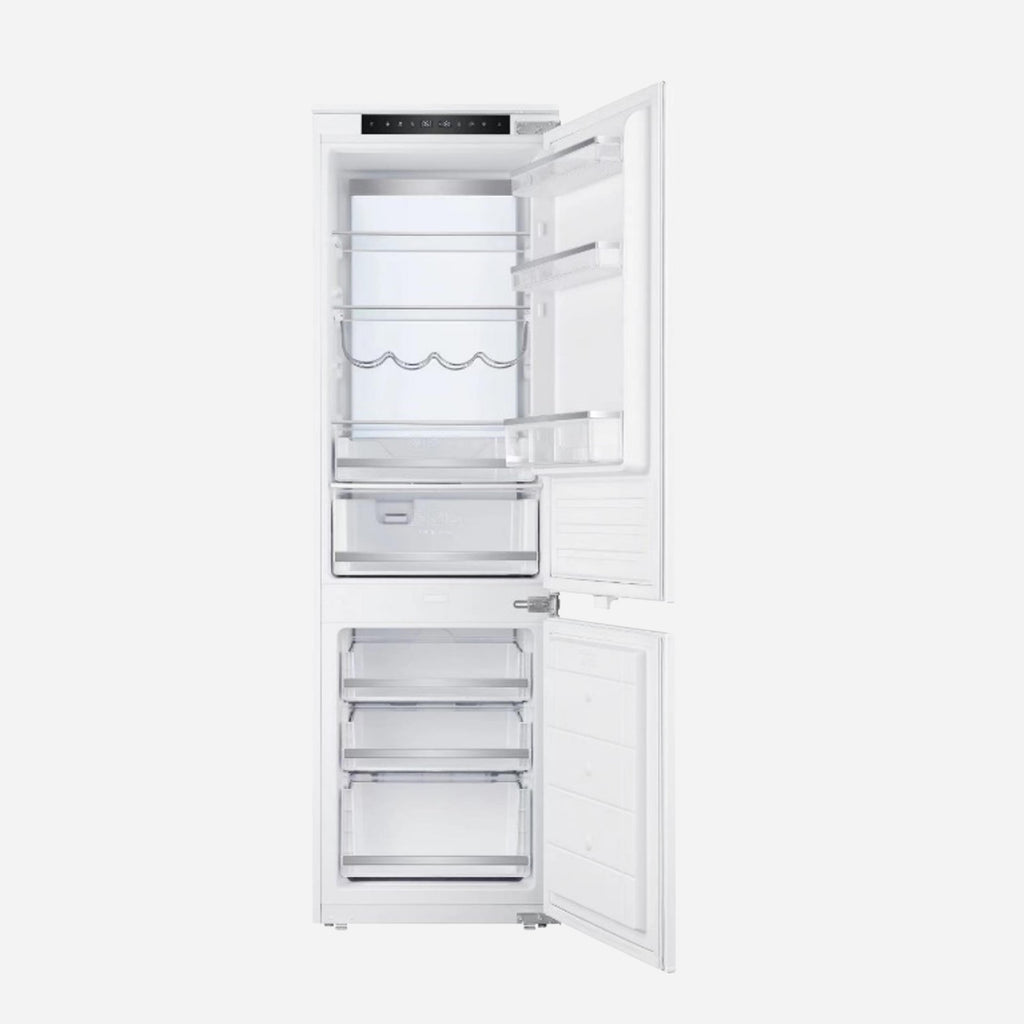

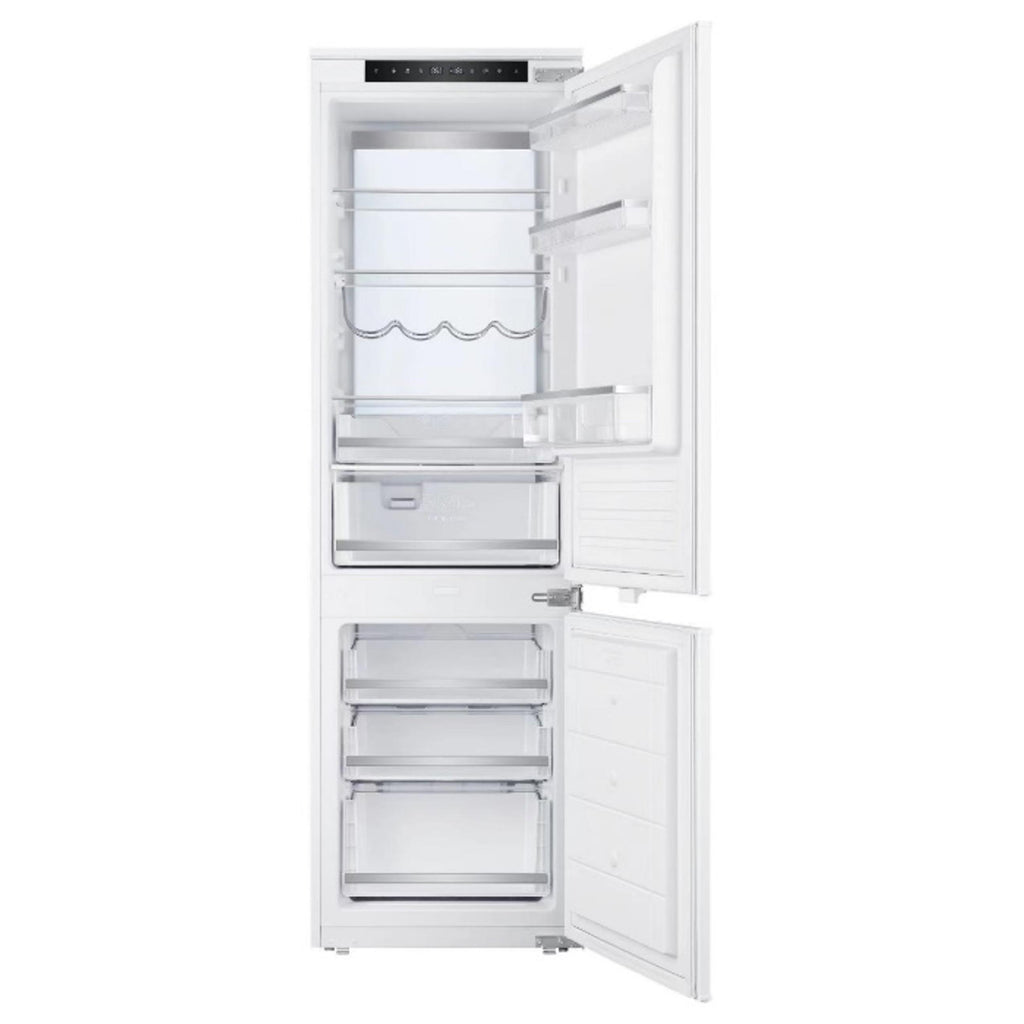

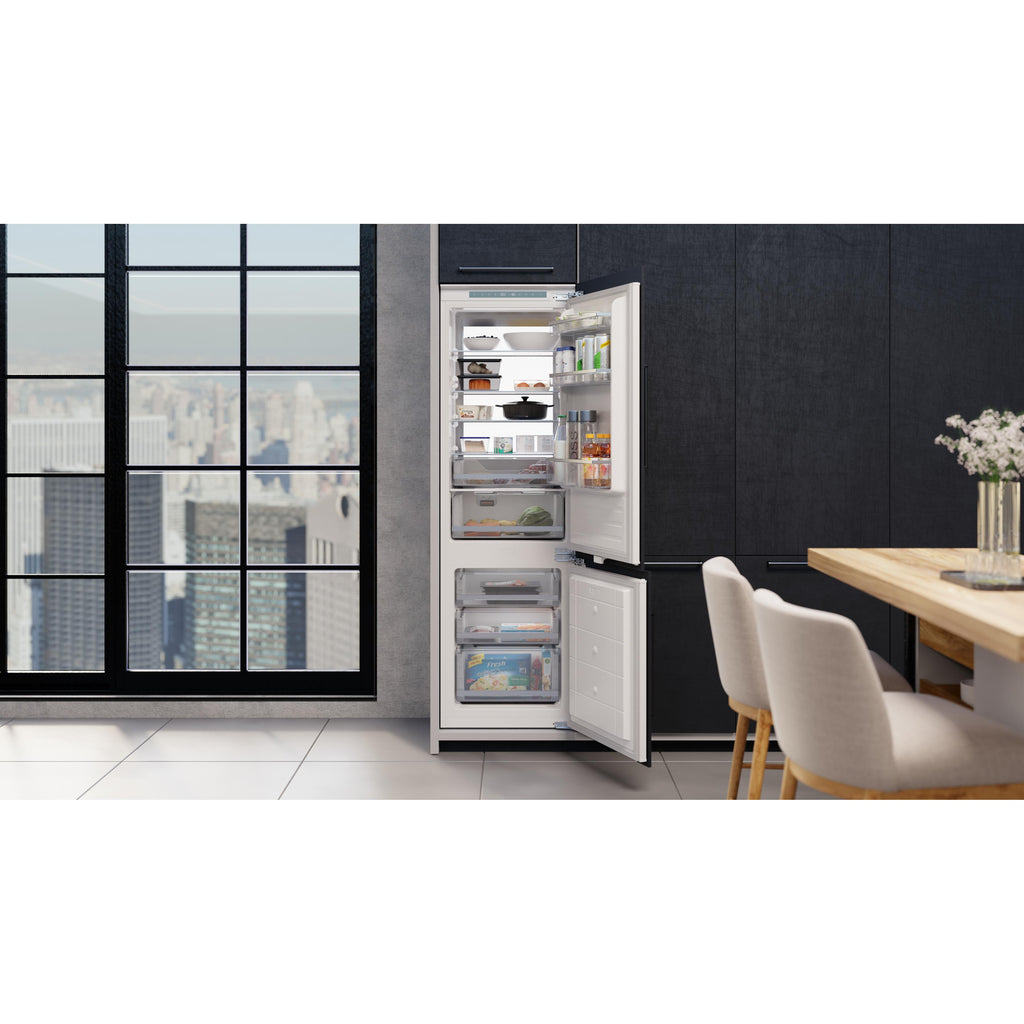

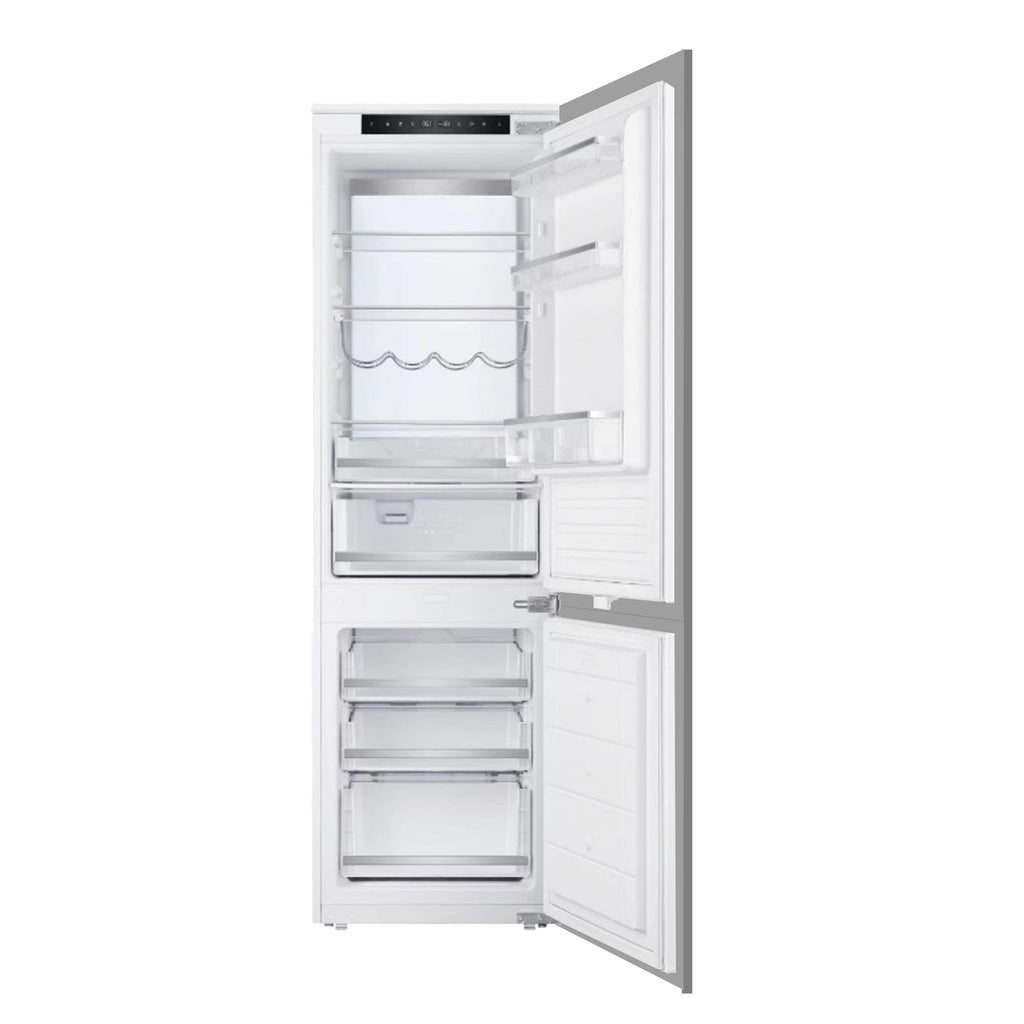

Upgrade your kitchen with the perfect blend of style, functionality, and innovation. Introducing Elica's 22" Panel Ready Refrigerator with Bottom Mount Freezer boasting a convenient 8.4 Cu.Ft. Capacity. It is more than an appliance; it's a statement of modern living with large storage space, adjustable temperature and perfect preservation for your food. Elevate your kitchen with a seamlessly integrated appliance with Panel Ready Capabilities and unique 3D adjustment for perfect flush installation.
Specifications
General
Series Name
Dolomite
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Door Hinge
Right
Reversible Doors
Yes
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
8.37 cu. ft.
Refrigerator
6.0 cu. ft.
Freezer
2.37 cu. ft.
Refrigerator Features
Technologies
Total NO-Frost fridge and freezer
Digital Display
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Wine Storage
Yes
Additional Information
• Temperature range: +35°F (2°C) to 46°F (8°C), Chiller drawer: 30°F (-1°C) to 41°F(5°C)
• Shelving: 2 Height adjustable cantilever, Spill-Proof Glass shelves + Wine rack
• Drawers: 1 Humidity control Drawer +, 1 Chiller Adjustable Temp Drawer
• Door Storage: 3 Height adjustable Bins
• Reversible Door: Field Reversible
• Interior Finish: White plastic liner
• Hinge Design: Articulating 90° opening flush hinge
• Refrigerant type: R600A
• Compressor: Variable Speed with Inverter
• Noise: Ultra Quiet 41 db(A)
• Lighting: LED 6500K 150 lumens
• Controls: Electronic Soft-Touch Digital Black Glass display
• Sabbath & Holiday Mode
• ECO Mode
• Soft close crisper & pantry drawers
• Ultra Quiet operation
• True Flush Install - 3D door adjustment
• Cool Day LED interior light side walls & ceiling
• Shelving: 2 Height adjustable cantilever, Spill-Proof Glass shelves + Wine rack
• Drawers: 1 Humidity control Drawer +, 1 Chiller Adjustable Temp Drawer
• Door Storage: 3 Height adjustable Bins
• Reversible Door: Field Reversible
• Interior Finish: White plastic liner
• Hinge Design: Articulating 90° opening flush hinge
• Refrigerant type: R600A
• Compressor: Variable Speed with Inverter
• Noise: Ultra Quiet 41 db(A)
• Lighting: LED 6500K 150 lumens
• Controls: Electronic Soft-Touch Digital Black Glass display
• Sabbath & Holiday Mode
• ECO Mode
• Soft close crisper & pantry drawers
• Ultra Quiet operation
• True Flush Install - 3D door adjustment
• Cool Day LED interior light side walls & ceiling
Freezer Features
Additional Freezer Information
• Temperature range: +5°F (-15°C)to-11°F(-24°C)
• Drawers: 1 Large Freezer drawer, 2 Medium Freezer drawer
• Drawers: 1 Large Freezer drawer, 2 Medium Freezer drawer
Electrical Information
Information
• Electric: 115V/60 Hz
• Plug Type: NEMA 5-15 P plug
• Power Cord Length: 6.25 feet
• Energy consumption: 372 kw/year
• Plug Type: NEMA 5-15 P plug
• Power Cord Length: 6.25 feet
• Energy consumption: 372 kw/year
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Additional Information
ETL US
Accessories
Optional
• Pro Handle Stainless Steel Kit: EPHKBSS
• Tubular Handle Stainless Steel Kit: ETHKBSS
• Tubular Handle Stainless Steel Kit: ETHKBSS
Dimensions
Class Width
22.9" or less
Class Height
65" - 70"
Width
21.25 inch(es) / 53.98 cm
Height (With Hinge)
69.63 inch(es) / 176.85 cm
Overall Depth
21.63 inch(es) / 54.93 cm
Weight
133 lb(s) / 60.33 kg
Additional Dimensions
Cut Out Dimensions: 22 1/16" W x 22 1/16" D x 70 1/8" H
Shipping Dimensions
Weight
145 lb(s) / 65.77 kg
Warranty
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts& In-Home Labor by registering on elica.com
