Description

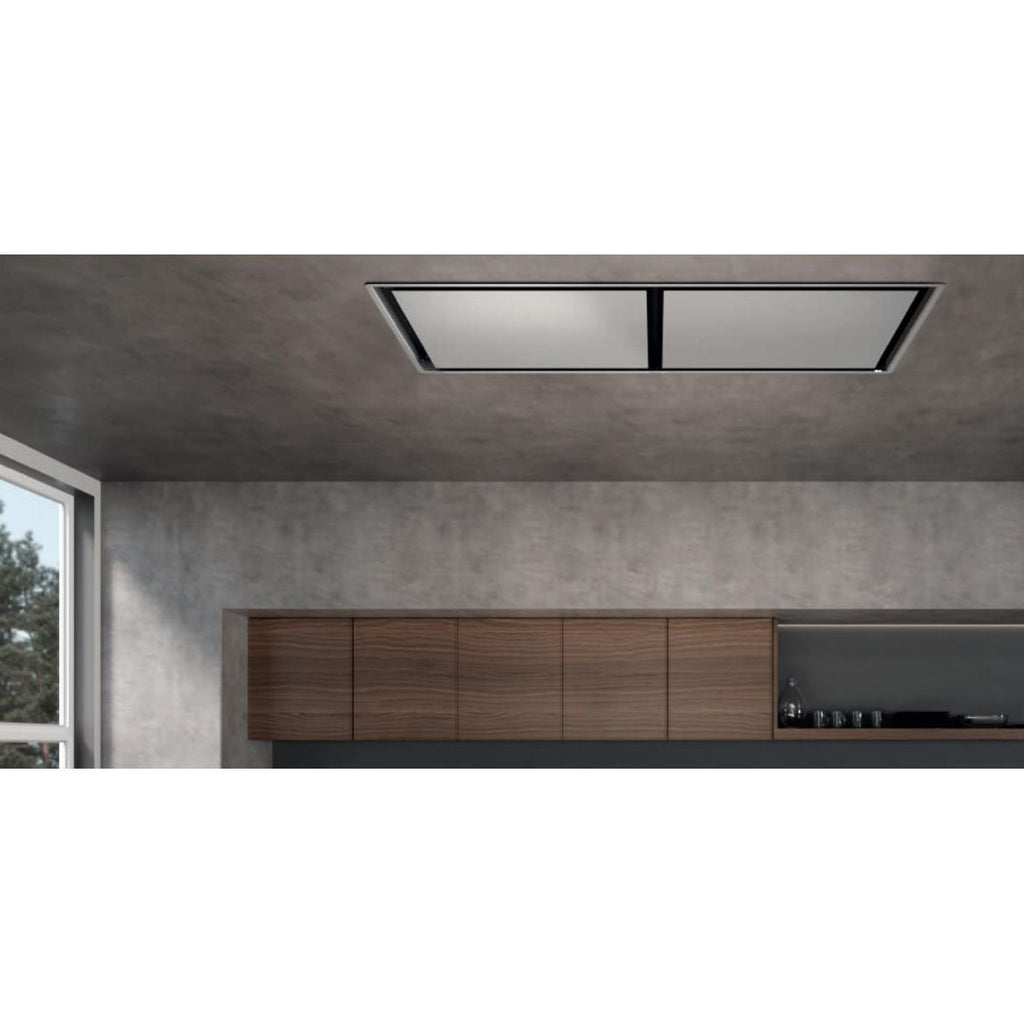

Sold separately as either an internal, inline or an external blower with 600 or 1200 CFM options, Cielo can be equipped to meet any kitchen design needs. Hidden on the ceiling, only 12" of clearance is required for installation due to its multidirection ducting capability. This hood will effectively extract and clean air on ceilings up to 10 ft.With its perimeter aspiration capacity and minimal sound emissions, Cielo enhances the overall kitchen environment, effectively removing vapors and maintaining a peaceful living space. Either with a Stainless Steel Finish or a Panel-ready Option for matching the ceiling design, Cielo is the perfect complement for any space.
Features
DIM-LIGHT
The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
TUNE WHITE
The ability to choose the preferred shade of white always creates the right atmosphere. The Kelvin degrees regulation starts from a very warm tone, 2400°K, to experience intimate and convivial moments, up to a cold colour, 5000°K.
REMOTE CONTROL
Elica’s ADA compliant Remote Control, provides added convenience to the typical user, as well as, full-function access for those with limited mobility.
SUPER EASY INSTALLATION
With the exclusive Elica system, installation can be done in total safety in just a few steps, safeguarding the look of the product and the space in which it is positioned.
PERIMETER ASPIRATION
Perimeter Aspiration: First developed by Elica,
this technology literally turned the market 45
degrees and opened the door to hoods that could
be mounted on the wall like picture frames. The
technology draws air through a narrowed channel
around a face plate, which increases suction,
without increasing blower speed or energy consumption.
LONG LIFE FILTER
One of a kind odour filter, capable of regenerating itself and of lasting up to 3 years. To maintain these characteristics, the filter only requires simple maintenance: wash every 2 or 3 months with hot water and mild soap (also in dishwasher at 65 degrees) and dry in the oven for ten minutes at 100 degrees.
TOTAL INTEGRATION
These products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
PANEL READY
Seamlessly integrate your hood into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation making it a perfect choice for those who values functionality and aesthetics.
Specifications
General
Series Name
• Cielo
• Iconic Series
• Iconic Series
Blower Included
No
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel Panel and Frame with Panel Ready Capability
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Ducted or recirculating with kit (sold separately)
Additional Information
• Blower type: Internal or external (sold separately)
• Grease Filter: Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
• Controls: Remote control
• Finish: Stainless Steel Panel and Frame with Panel Ready Capability
• Illumination: 2 LED, 7 W, 2700K-5000K, 315 Lúmenes
• Noise (sones): 1.3 - 6.8 Sones (600 CFM) or 1.7-7.0 Sones (1200 CFM)
• Grease Filter: Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration
• Controls: Remote control
• Finish: Stainless Steel Panel and Frame with Panel Ready Capability
• Illumination: 2 LED, 7 W, 2700K-5000K, 315 Lúmenes
• Noise (sones): 1.3 - 6.8 Sones (600 CFM) or 1.7-7.0 Sones (1200 CFM)
Electrical Information
Information
120 V - 60 Hz, 487 W
Certifications and Approvals
Information
• AHAM
• cUL
• UL
• cUL
• UL
Accessories
Included
White Remote Control: KIT0121468
Optional
• 1200 CFM External Blower Kit: KIT0153054
• 1200 CFM Inline Blower Kit: KIT0154387
• 600 CFM Internal Blower Kit: KIT0198147
• 1200 CFM Internal Blower Kit: KIT0198146
• 600 CFM Inline Blower Kit: KIT0198148
• Black Remote Control: KIT0121469
• 1200 CFM Inline Blower Kit: KIT0154387
• 600 CFM Internal Blower Kit: KIT0198147
• 1200 CFM Internal Blower Kit: KIT0198146
• 600 CFM Inline Blower Kit: KIT0198148
• Black Remote Control: KIT0121469
Dimensions
Class Width
40"
Width
40 inch(es) / 101.6 cm
Height
12 inch(es) / 30.48 cm
Depth
20 inch(es) / 50.8 cm
Weight
53.35 lb(s) / 24.2 kg
Warranty
Warranty
Two (2) Years Parts & In-Home Labor
