Description

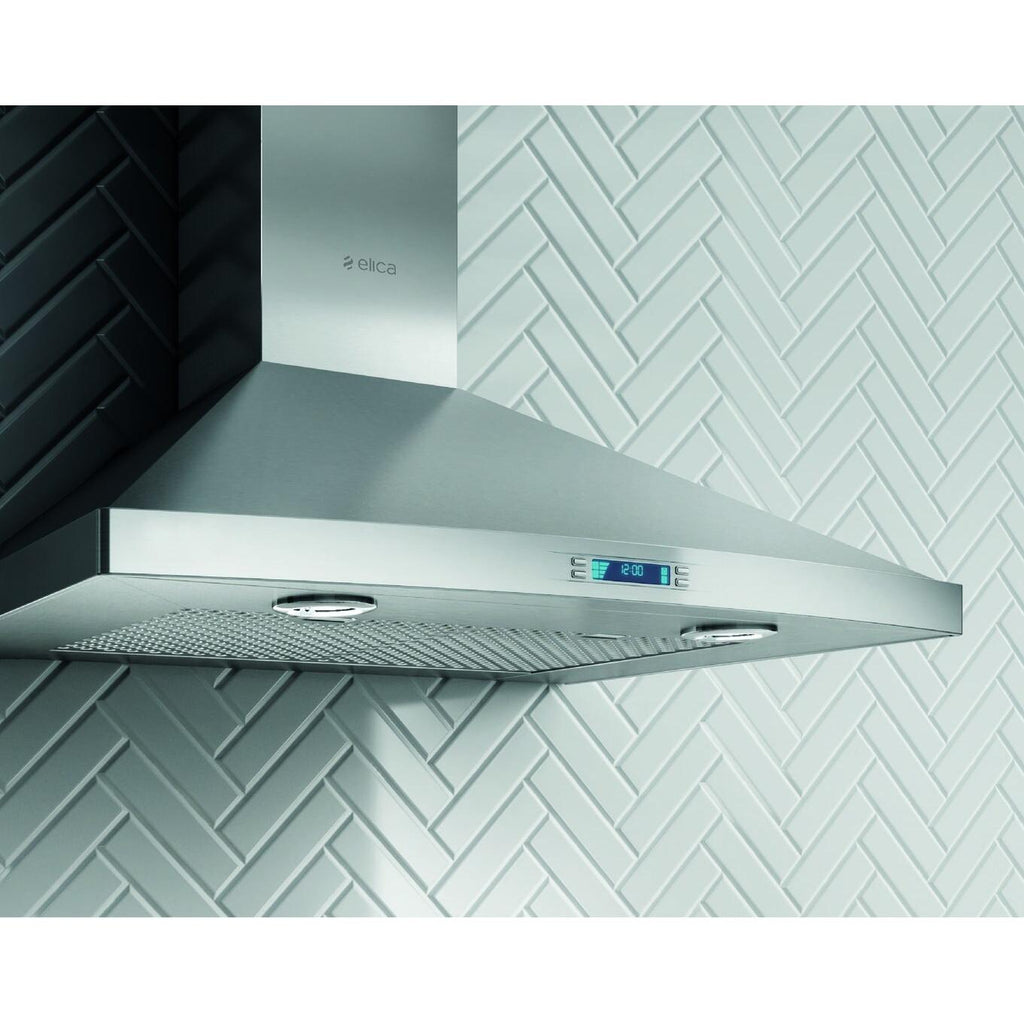

Elica 30-inch range hood. Pilato features include a powerful 600 CFM blower, LED lighting with 2 light intensities, dishwasher-safe stainless steel microhole filters and multi-function electronic controls with LCD display that deliver convenience and safety. Designed for standard ducted installation, Pilato can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
Features
LED LIGHT
LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
Specifications
General
Series Name
Pilato Techne
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Ducting Information
• Ducted or Recirculating with Recirculating Kit (Sold Separately)
• Top Round 6"
• Top Round 6"
Speeds
Touch Control 3 Speeds + Booster
Additional Information
• Speed 1: 160 CFM
• Speed 2: 280 CFM
• Speed 3: 470 CFM
• Speed 4: 600 CFM
• Sones: Min: 2.03, Max: 8
• 2 LED Lights, 2.5 w
• Speed 2: 280 CFM
• Speed 3: 470 CFM
• Speed 4: 600 CFM
• Sones: Min: 2.03, Max: 8
• 2 LED Lights, 2.5 w
Electrical Information
Information
• 120 V
• 60 Hz
• 450 Watts at 3.7 A
• 60 Hz
• 450 Watts at 3.7 A
Certifications and Approvals
Hvi Certified
Yes
Information
• CUL
• UL
• UL
Accessories
Optional
• Recirculating Kit (Contains 6" Deflector & 2 Round Carbon Filters) KIT02766
• Chimney Extension Kit KIT02762
• Chimney Extension Kit KIT02762
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
24.12 inch(es) / 61.27 cm
Depth
21.5 inch(es) / 54.61 cm
Warranty
Warranty
Limited 2 Years
