Description

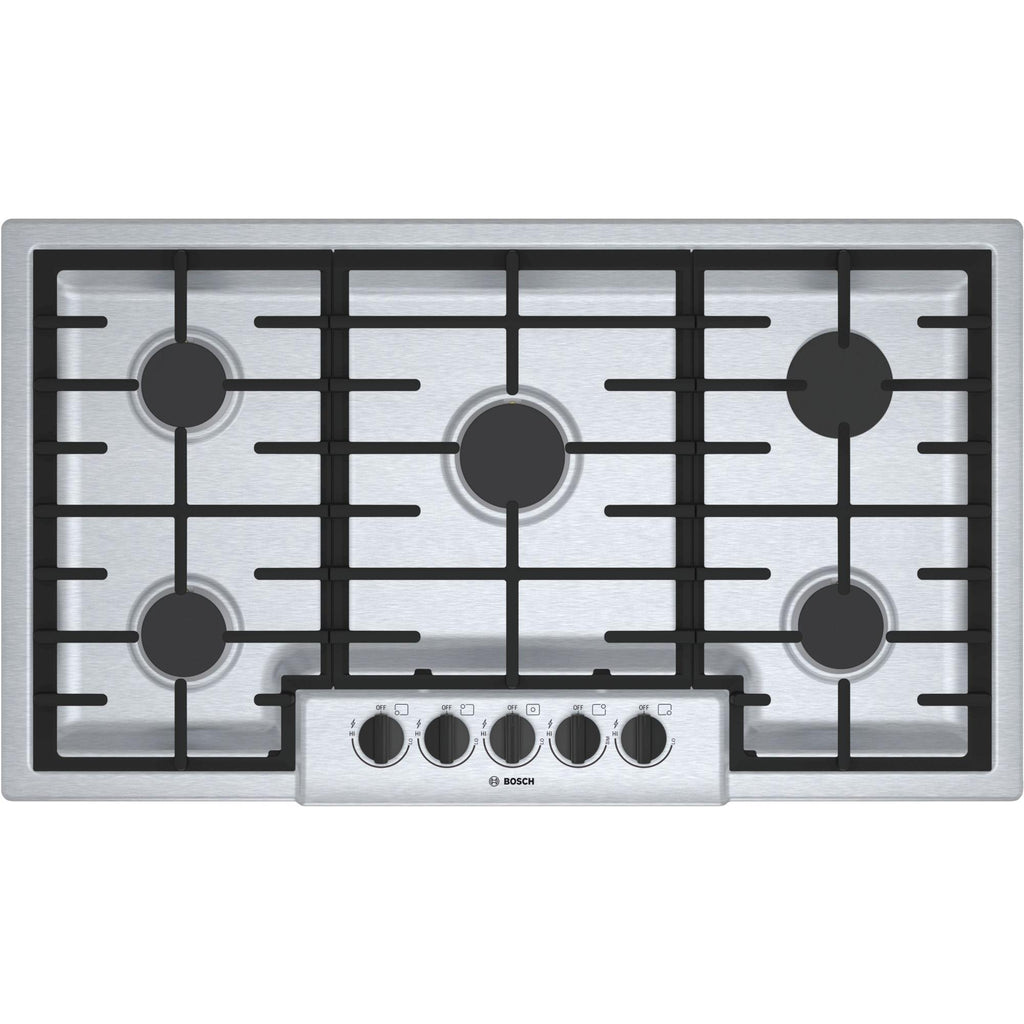

This Bosch 36-inch gas cooktop features electronic re-igniton, continuous grates, an OptiSim® burner and push-to-turn knobs.
Features
ELECTRONIC RE-IGNITION
Electronic re-ignition will automatically re-ignite the burner in case the flame goes out
OPTISIM® BURNER
OptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Specifications
General
Series Name
500
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Power of Front Left Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Center Burner (NG / LP): 16,000 / 15,000 BTU
• Power of Back Right Burner (NG / LP): 5,500 / 5,000 BTU
• Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Back Left Burner (NG / LP): 10,000 / 9,100 BTU
• Power of Center Burner (NG / LP): 16,000 / 15,000 BTU
• Power of Back Right Burner (NG / LP): 5,500 / 5,000 BTU
• Power of Front Right Burner (NG / LP): 10,000 / 9,100 BTU
Burners
Sealed
Features
Technologies
OptiSim® Burner
Additional Information
• Powerful 16,000 BTU Burner for Boiling, Searing and Stir-Frying
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
• LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
• Heavy-Duty Black Metal Knobs
• Low-Profile Design for an Integrated Appearance
• Perfect Results are Within Reach With Up-Front Centralized Controls
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition - In Case Flame Goes Out, the Burner is Automatically Re-Ignited
• LP Conversion Kit Included for Conversion from Natural Gas to Liquid Propane
• Heavy-Duty Black Metal Knobs
• Low-Profile Design for an Integrated Appearance
• Perfect Results are Within Reach With Up-Front Centralized Controls
Electrical Information
Information
• 360 W
• 120 V
• 60 Hz
• 15 A
• 120 V
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath Mode
Yes
Accessories
Included
LP Conversion Kit
Optional
• HEZ298102 Wok Ring
• HEZGR301 Griddle
• HEZGR301 Griddle
Dimensions
Class Width
36"
Width
37.01 inch(es) / 94.0 cm
Height
3.82 inch(es) / 9.7 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
39 lb(s) / 17.69 kg
Additional Dimensions
• Required cutout size (HxWxD): 3 13/16" x 34 15/16" x 19 1/8"
• Minimum distance from counter front: 1 7/8"
• Minimum distance from rear wall: 3"
• Minimum distance from counter front: 1 7/8"
• Minimum distance from rear wall: 3"
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
8.25E+11
