Description

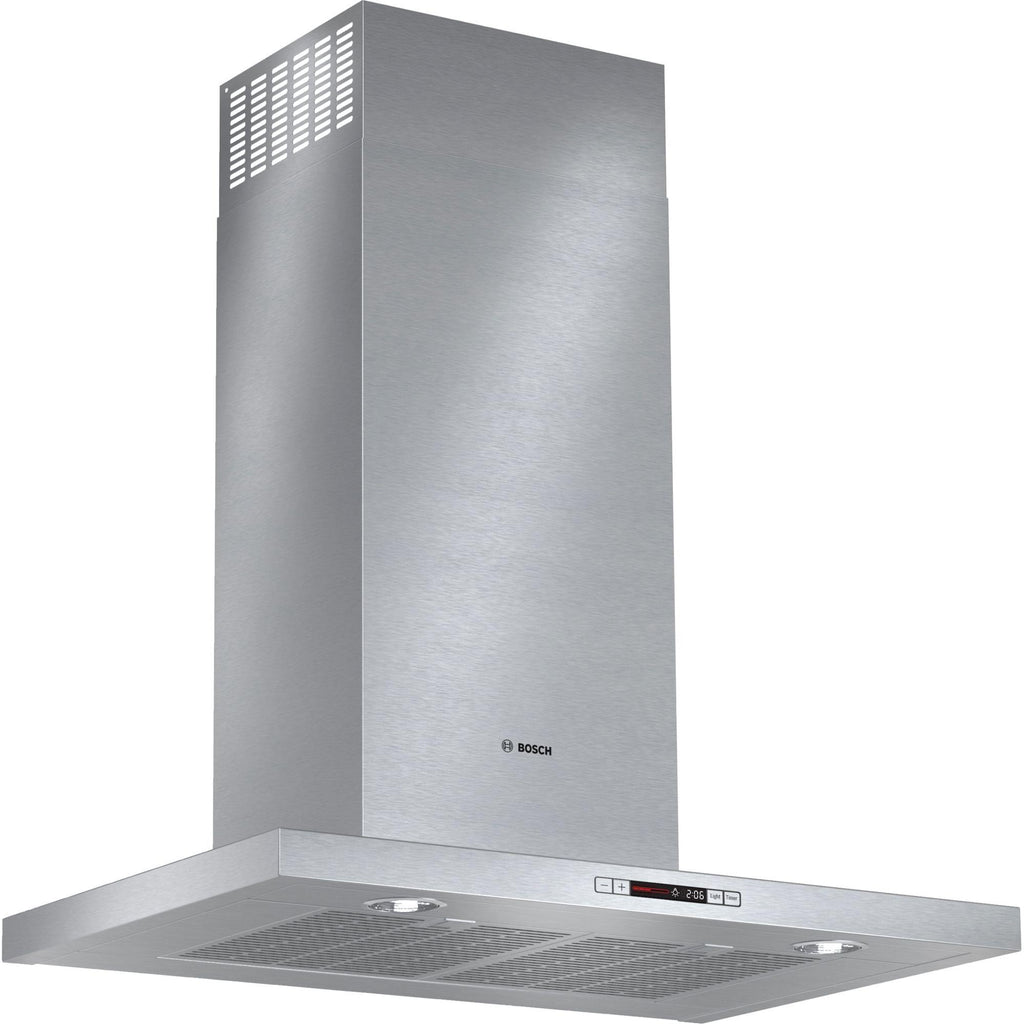

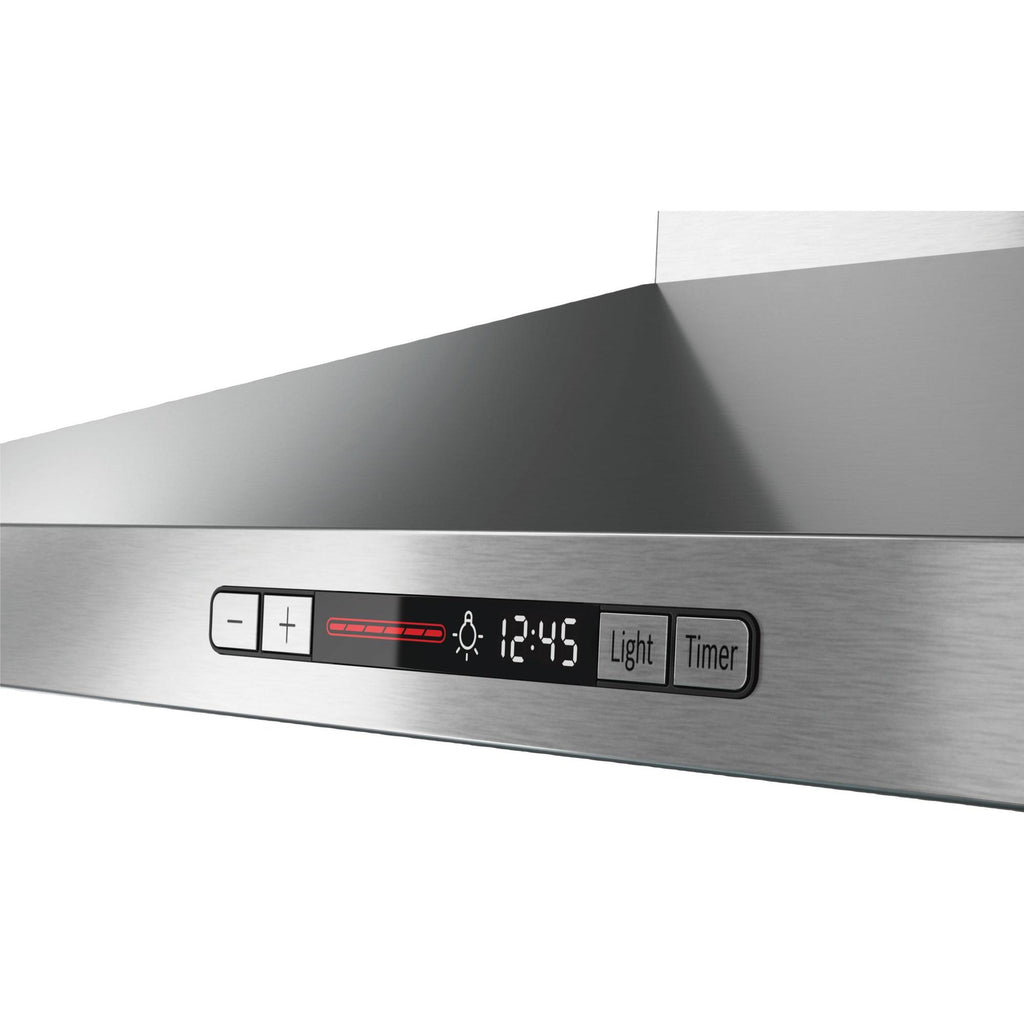

Bosch 30" 500 Series box canopy chimney hood. This hood features a 600 CFM blower, touch controls with LCD display and four speeds.
Specifications
General
Series Name
500
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• 8" round duct at discharge
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Speeds
4 Speeds
Additional Information
• 2 halogen lights - 12 Volt, 20 Watt max., G-4 Base
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, UL
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, UL
Electrical Information
Information
• 530 W
• 110 V
• 60 Hz
• 110 V
• 60 Hz
Accessories
Optional
• HCBEXT5UC Chimney extension for 9-11.5 ft. ceilings
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kit
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kit
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
27.06 inch(es) / 68.74 cm
Depth
19.69 inch(es) / 50.01 cm
Weight
52.01 lb(s) / 23.59 kg
Additional Dimensions
• Height of the chimney: 25 1/2" - 40 9/16"/25 3/8" - 44 1/4"
• Required distance above cooktop/ranges: 24"/27"
• Required distance above cooktop/ranges: 24"/27"
Shipping Dimensions
Weight
58 lb(s) / 26.31 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
825225909040
