Description

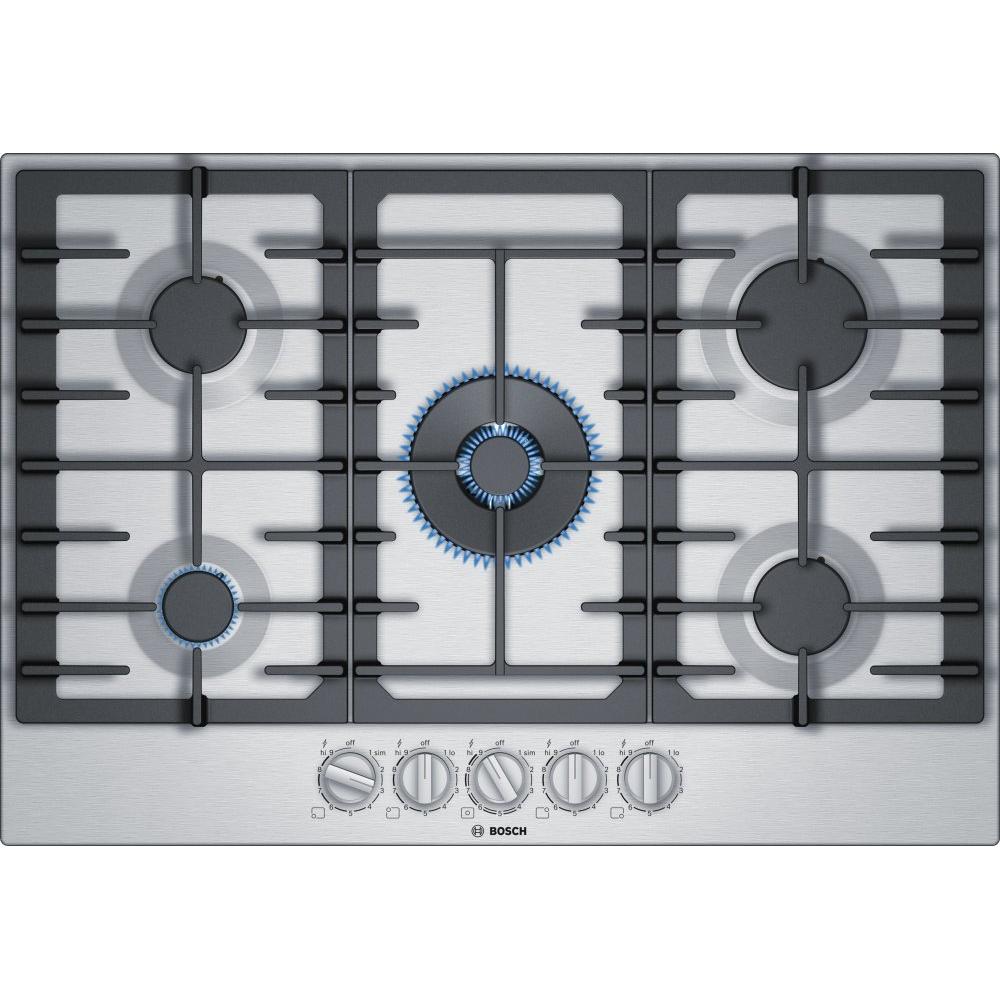

This Bosch 800 Series 30" 5-burner gas cooktop is engineered to perform precisely, offering dual-flame power burner with two heat options to quickly boil water or to maintain a precise simmer. It features the OptiSim® burner that lets you simmer delicate sauces and melt chocolate without scorching and FlameSelect® that allows for a precise adjustment of the flame size with nine defined power levels.
Features
OPTISIM® BURNER
OptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Specifications
General
Series Name
800 Series
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Total BTU (NG / LP): 41,400 / 40,100
• Front Left (NG / LP): 3,400 / 3,400
• Back Left (NG / LP): 6,000 / 6,000
• Center (NG / LP): 17,000 / 15,700
• Back Right (NG / LP): 9,000 / 9,000
• Front Right (NG / LP): 6,000 / 6,000
• Front Left (NG / LP): 3,400 / 3,400
• Back Left (NG / LP): 6,000 / 6,000
• Center (NG / LP): 17,000 / 15,700
• Back Right (NG / LP): 9,000 / 9,000
• Front Right (NG / LP): 6,000 / 6,000
Burners
Sealed
Surface Features
Cast Iron Grates
Features
Technologies
• OptiSim® Burner
• FlameSelect®
• FlameSelect®
Additional Information
• Low Profile Stainless Steel Cooking Surface Is Easily Accessible And Quick To Clean
• Heavy-Duty Grates Can Be Easily And Quickly Cleaned In The Dishwasher
• Dual-Flame Power Burner With Two Heat Options
• Five 9-Level Step Valves
• Thermocouple Safety Control Ignition System
• Heavy-Duty Grates Can Be Easily And Quickly Cleaned In The Dishwasher
• Dual-Flame Power Burner With Two Heat Options
• Five 9-Level Step Valves
• Thermocouple Safety Control Ignition System
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Included
• LP Conversion Kit
• OptiSim® Cap
• OptiSim® Cap
Optional
Wok Ring: HEZ298107
Dimensions
Class Width
30"
Width
29.5 inch(es) / 74.93 cm
Height
20.5 inch(es) / 52.07 cm
Depth
2.36 inch(es) / 5.99 cm
Weight
38.01 lb(s) / 17.24 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 1 1/4" x 28 15/16" x 19 1/8"
• Minimum Distance From Counter Front: 1 7/8"
• Minimum Distance From Rear Wall: 3"
• Minimum Distance From Counter Front: 1 7/8"
• Minimum Distance From Rear Wall: 3"
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225958437
